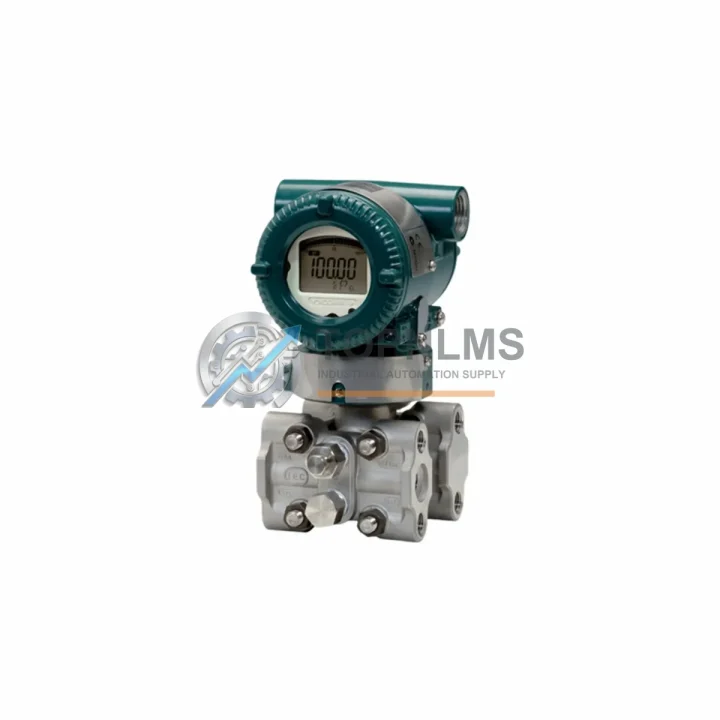

Yokogawa EJA110E-JMS Ruggedized Differential Pressure Module for Harsh Environments

Product Overview

Yokogawa EJA110E-JMS Ruggedized Differential Pressure Module for Harsh Environments

The Yokogawa EJA110E-JMS is a high-performance differential pressure transmitter engineered for continuous, reliable operation in the most demanding industrial environments. Built on Yokogawa’s proven EJA-E Series platform, this transmitter integrates a single-crystal silicon resonant sensor that delivers exceptional accuracy, long-term stability, and resistance to the mechanical and electrical stresses common in heavy industry. Whether deployed in oil and gas processing, chemical plants, power generation, water treatment, or metallurgical facilities, the EJA110E-JMS is designed to perform without compromise.

Industrial field environments impose relentless stress on instrumentation. High ambient temperatures, condensation, corrosive gases, fine particulate dust, continuous mechanical vibration, and intense electromagnetic interference from variable frequency drives, large motors, and high-voltage switchgear can degrade or disable conventional transmitters within months. The EJA110E-JMS addresses each of these threats through its ruggedized enclosure, advanced sensor isolation, and robust signal conditioning circuitry. Its IP67-rated housing provides complete protection against dust ingress and temporary water immersion, making it equally suitable for outdoor installations exposed to monsoon rainfall and indoor installations near steam lines or wash-down areas.

In process control architectures, the EJA110E-JMS integrates seamlessly with Yokogawa’s CENTUM VP DCS and ProSafe-RS Safety Instrumented System, as well as third-party PLC platforms including Siemens S7-300/S7-400 series and Rockwell Automation ControlLogix systems. Its 4–20 mA HART output ensures compatibility with a wide range of I/O modules, including Yokogawa’s ADV151 analog input modules and standard HART multiplexers used in large-scale distributed control systems. For facilities already operating Yokogawa field devices, the EJA110E-JMS pairs naturally with the EJX910A multivariable transmitter and EJA530E absolute pressure transmitter to form a comprehensive pressure measurement network across a single process unit.

Reliable differential pressure measurement is foundational to safe and efficient plant operation. The EJA110E-JMS is commonly used to monitor flow rates across orifice plates and venturi tubes, measure liquid levels in pressurized vessels, and detect filter or strainer differential pressure to trigger maintenance alerts before blockages cause process upsets. In safety-critical loops, it can be configured to meet IEC 61508 SIL 2 requirements, supporting integration with safety relay modules, emergency shutdown systems, and safety PLCs. This SIL 2 capability makes it a preferred choice for burner management systems, high-integrity pressure protection systems (HIPPS), and other functional safety applications where instrument failure could result in personnel injury or environmental release.

The transmitter’s internal diagnostics continuously monitor sensor health, process conditions, and electronics status, generating HART diagnostic messages that can be read by asset management systems such as Yokogawa’s PRM (Plant Resource Manager) or third-party tools like Emerson AMS Device Manager. This predictive maintenance capability reduces unplanned downtime by alerting maintenance teams to developing faults before they cause process interruptions. In continuous production environments — refineries, ethylene crackers, pulp and paper mills, and semiconductor fabs — even a single unplanned shutdown can cost hundreds of thousands of dollars per hour. The EJA110E-JMS’s self-diagnostics and proven MTBF performance directly support the business case for predictive maintenance programs.

For control cabinet integrations, the EJA110E-JMS is typically wired through Phoenix Contact or Weidmüller terminal blocks and protected by MTL or Pepperl+Fuchs Zener barriers or galvanic isolators when installed in hazardous areas classified as Zone 1 or Zone 2 under IEC 60079. Its low power consumption and wide supply voltage tolerance (10.5–42 V DC) simplify power supply selection and reduce the load on 24 VDC industrial power supplies feeding the instrument loop. When replacing aging EJA110A or EJA110C transmitters, the EJA110E-JMS offers a direct mechanical and electrical retrofit path, minimizing installation time and eliminating the need for new process connections or cable rerouting.

Spare parts availability and long-term supply continuity are critical procurement considerations for plant engineers and maintenance managers. TOPNLMS maintains verified stock of the EJA110E-JMS and related EJA-E Series transmitters, sourced through authorized distribution channels. Each unit undergoes pre-shipment functional testing, including zero and span verification, to confirm it meets Yokogawa’s published accuracy specifications before dispatch. Units are shipped in original or equivalent protective packaging with calibration documentation included.

Rugged Specifications Table

Comprehensive Protection Solutions

The EJA110E-JMS does not operate in isolation — it is one component in a layered protection and control architecture. In a typical refinery or chemical plant control loop, the transmitter’s 4–20 mA HART signal is received by a Yokogawa ADV151 or ADV161 analog input module housed in a CENTUM VP field control station. The DCS processes the signal and executes PID control logic, with the output driving a YVP110 HART valve positioner on a control valve to regulate flow or pressure. Alongside this primary control loop, a ProSafe-RS safety PLC monitors the same process variable through a dedicated SIL-rated input channel, ready to initiate an emergency shutdown if the differential pressure exceeds safe operating limits.

In the instrument power distribution cabinet, the EJA110E-JMS loop is powered through a Yokogawa or Phoenix Contact 24 VDC HART-compatible power supply and protected by a Pepperl+Fuchs KFD2-STC4-Ex1 Zener barrier or equivalent galvanic isolator, ensuring intrinsic safety compliance in Zone 1 classified areas. Terminal connections are made via Weidmüller or Phoenix Contact spring-clamp terminal blocks, which maintain reliable contact integrity even under continuous vibration from nearby rotating machinery. For remote diagnostics, the HART signal is tapped by a Yokogawa YHC5150X HART communicator or fed into the plant’s asset management network via a HART multiplexer connected to the PRM server.

In mining and heavy industrial environments where electromagnetic interference from large variable frequency drives and high-current motor starters is severe, the EJA110E-JMS’s IEC 61326-1 EMC compliance ensures signal integrity without additional shielding beyond standard instrumentation cable practices. When paired with a Yokogawa EJX910A multivariable transmitter on the same process line, operators gain simultaneous differential pressure, static pressure, and process temperature measurements from a single process connection, reducing the number of penetrations in high-pressure vessels and simplifying maintenance access.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the EJA110E-JMS is deployed for wellhead pressure monitoring, separator level measurement, and pipeline flow metering. Its ATEX and IECEx certifications allow installation in Zone 1 and Zone 2 hazardous areas without additional explosion-proof enclosures when configured for intrinsic safety. Offshore platform installations benefit from its corrosion-resistant wetted materials and IP67 rating, which protect against salt spray and high-humidity marine atmospheres.

In thermal and nuclear power generation, the transmitter monitors feedwater differential pressure across economizers and heat exchangers, steam flow through turbine control systems, and condenser vacuum levels. Its long-term stability specification of ±0.1% URL per 10 years reduces the frequency of calibration outages, a significant operational benefit in baseload power plants where instrument access requires unit derating or shutdown.

In water and wastewater treatment plants, the EJA110E-JMS measures differential pressure across membrane filtration systems, monitors pump discharge pressure, and provides level measurement in open channels and closed tanks. Its wide ambient temperature range accommodates both outdoor installations in tropical climates and underground pump station environments where condensation is a persistent challenge.

In metallurgical and mining operations — blast furnaces, smelters, and ore processing plants — the transmitter withstands high-vibration environments generated by crushers, conveyors, and heavy presses. Its robust die-cast aluminum housing and stainless steel process connections resist the mechanical impacts and chemical exposure common in these facilities, while its HART diagnostics enable condition monitoring without requiring personnel to enter hazardous process areas.

Security & Quality FAQ

Q1: What warranty coverage is provided with the EJA110E-JMS?
Every EJA110E-JMS unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize plant downtime.

Q2: How is each unit tested before shipment?
All EJA110E-JMS transmitters undergo pre-shipment functional verification, including zero-point and full-span output checks, HART communication confirmation, and visual inspection of process connections and housing integrity. Units that do not meet Yokogawa’s published accuracy specifications are quarantined and not dispatched. Calibration records are available upon request.

Q3: Is the EJA110E-JMS compatible with my existing HART infrastructure and DCS?
Yes. The EJA110E-JMS outputs a standard 4–20 mA HART signal compatible with all HART revision 5, 6, and 7 host systems, including Yokogawa CENTUM VP, Honeywell Experion PKS, ABB System 800xA, Emerson DeltaV, and Siemens PCS 7. It is also compatible with any analog input module accepting 4–20 mA signals. No firmware or hardware modifications are required for integration into existing control systems.

Q4: Can TOPNLMS support long-term supply and replacement for EJA-E Series transmitters?
Yes. TOPNLMS maintains ongoing stock of EJA-E Series transmitters and related Yokogawa field instruments to support planned maintenance, emergency replacements, and capital project procurement. For facilities managing large installed bases of Yokogawa instrumentation, we can discuss scheduled supply agreements to ensure parts availability aligned with your maintenance turnaround calendar. Contact us to discuss your specific requirements.
