Yokogawa SAI143-H03-S2 Ruggedized Analog Input Module

Product Overview

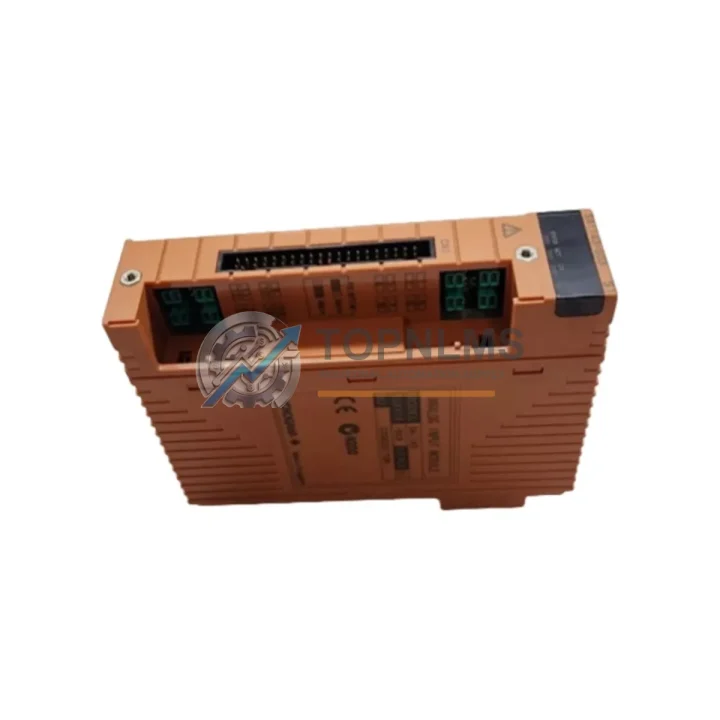

Yokogawa SAI143-H03-S2 Ruggedized Analog Input Module for Harsh Industrial Environments

The Yokogawa SAI143-H03-S2 is a high-precision analog input signal amplifier module engineered for continuous, fault-tolerant operation within the Yokogawa CENTUM VP Distributed Control System (DCS) architecture. Designed to meet the demanding requirements of process-critical industries, this module delivers stable, low-drift signal conditioning across a wide range of field sensor inputs — even under extreme thermal cycling, persistent vibration, high-humidity exposure, and heavy electromagnetic interference (EMI) common to oil & gas platforms, chemical processing plants, power generation facilities, and metallurgical operations.

Unlike generic I/O modules, the SAI143-H03-S2 is purpose-built for the CENTUM VP field control station (FCS) environment, where signal integrity directly governs process safety and regulatory compliance. Its ruggedized PCB construction, conformal coating, and shielded signal paths ensure that 4–20 mA and millivolt-level inputs from thermocouples, RTDs, pressure transmitters, and flow sensors are accurately amplified and digitized — even in the presence of ground loops, cable-induced noise, or nearby variable frequency drives (VFDs) and high-voltage switchgear.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated CENTUM VP control architecture, the SAI143-H03-S2 analog input module operates in close coordination with a range of complementary I/O and control components. Within the same FCS node, it works alongside the Yokogawa SAI143-H03 standard analog input module and the SAO143 analog output module to form a complete closed-loop process control layer. Digital I/O is handled by modules such as the SDV144 digital input module and SDV541 digital output module, which manage discrete field signals from limit switches, solenoid valves, and motor starters.

For process safety applications, the SAI143-H03-S2 is frequently deployed alongside the Yokogawa SSC60D safety system controller and associated safety I/O modules, ensuring that analog measurements from critical process variables — pressure, temperature, flow, and level — are fed into both the regulatory control layer and the safety instrumented system (SIS) simultaneously. The ALR111 alarm module and ACM12 communication module further extend the system’s ability to relay fault conditions to the operator station in real time.

Power integrity is maintained through the Yokogawa PW481 power supply module, which provides stable 24 VDC bus power to the FCS node. In high-vibration or high-EMI environments such as compressor stations or arc furnace control rooms, the combination of the SAI143-H03-S2’s shielded analog front-end with the PW481’s regulated output ensures that signal-to-noise ratios remain within specification even during load transients. The CP451 field control processor and EB401 ESB bus coupler complete the node architecture, enabling redundant communication paths between the field I/O layer and the CENTUM VP operator stations.

Application in Critical Infrastructure

The Yokogawa SAI143-H03-S2 is a proven component in some of the world’s most demanding continuous process environments. In oil and gas upstream and midstream operations, it monitors wellhead pressure transmitters, separator temperature sensors, and pipeline flow meters — providing the real-time analog data that drives automated shutdown logic and production optimization algorithms. Its tolerance for wide ambient temperature swings and high-humidity coastal or offshore environments makes it a preferred choice for FPSO vessel control systems and onshore gas processing terminals.

In thermal and hydroelectric power generation, the module interfaces with turbine inlet temperature sensors, boiler drum level transmitters, and generator excitation feedback signals. The CENTUM VP platform’s redundant FCS architecture — of which the SAI143-H03-S2 is a core I/O element — supports continuous operation without planned downtime, a critical requirement for grid-connected generation assets operating under strict availability SLAs.

In metallurgical and heavy industrial facilities — including blast furnace control, electric arc furnace (EAF) operations, and rolling mill automation — the module’s EMI hardening is particularly valuable. High-current bus bars, large motor drives, and induction heating equipment generate intense electromagnetic fields that can corrupt unshielded analog signals. The SAI143-H03-S2’s differential input architecture and channel isolation suppress common-mode interference, preserving measurement accuracy for temperature and pressure loops that govern product quality and equipment protection.

Water and wastewater treatment plants rely on the module for continuous monitoring of pH, dissolved oxygen, turbidity, and flow — parameters that must be logged accurately for both process control and environmental compliance reporting. Its low-maintenance design and long mean time between failures (MTBF) reduce the operational burden on plant instrument technicians managing large numbers of field loops.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the SAI143-H03-S2?
All SAI143-H03-S2 modules supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Yokogawa CENTUM VP system specifications. Warranty claims are supported by our technical team with replacement dispatch or repair coordination.

Q2: How is the module tested before shipment?
Every unit undergoes a full functional verification test prior to dispatch. This includes power-on self-test (POST) validation, channel continuity checks, and where applicable, signal path verification against known reference inputs. Modules that do not pass our pre-shipment test protocol are quarantined and not shipped.

Q3: Is the SAI143-H03-S2 compatible with both CENTUM VP and CENTUM CS 3000 systems?
The SAI143-H03-S2 is designed and certified for the Yokogawa CENTUM VP FCS platform. Compatibility with CENTUM CS 3000 nodes depends on the specific FCS hardware revision and software version in your installation. We recommend confirming the target FCS node model and firmware version with your Yokogawa system integrator or our technical team before ordering for a CS 3000 application.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of Yokogawa CENTUM VP I/O modules, including the SAI143-H03-S2, to support both emergency spare requirements and planned maintenance programs. We can provide volume pricing, lead-time commitments, and consignment stock arrangements for customers with ongoing MRO procurement needs. Contact our team to discuss a supply agreement tailored to your plant’s maintenance schedule.
