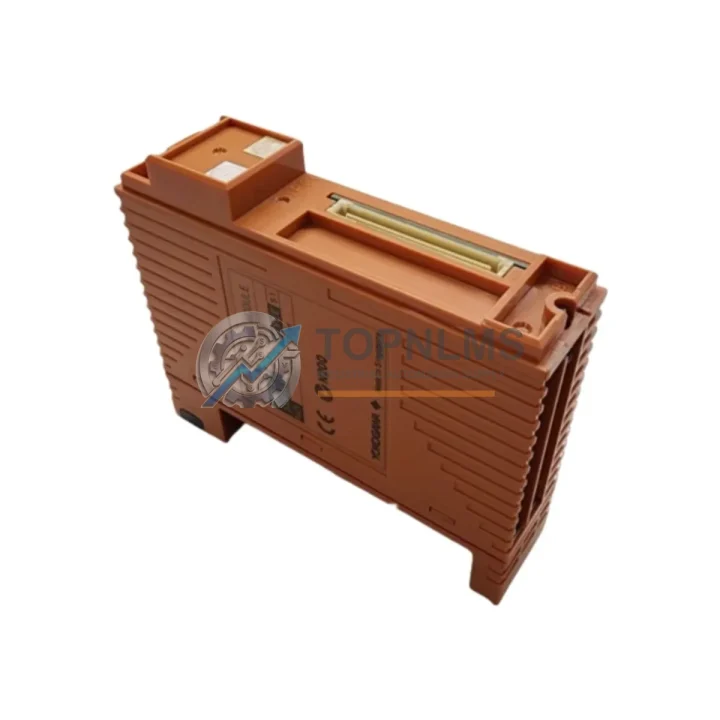

YOKOGAWA SAI143-HE3 Ruggedized Analog Input Module

Product Overview

YOKOGAWA SAI143-HE3 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The YOKOGAWA SAI143-HE3 is a high-integrity analog input module engineered for the CENTUM VP Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across critical global industries. Designed to operate reliably in environments characterized by extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the SAI143-HE3 delivers the signal acquisition accuracy and system stability that demanding industrial operations require.

As a field-proven component within the YOKOGAWA CENTUM VP ecosystem, the SAI143-HE3 acquires analog field signals — including 4–20 mA current loops and voltage inputs — from transmitters, sensors, and field instruments, converting them into precise digital values for real-time process monitoring and control. Its rugged construction and advanced noise rejection circuitry make it the preferred choice for continuous production lines where signal integrity cannot be compromised.

Rugged Specifications Table

Comprehensive Protection Solutions

The SAI143-HE3 does not operate in isolation — it is a critical node within a broader YOKOGAWA CENTUM VP control architecture. In a fully integrated field control station, it works in concert with the SAI143-S (safety-rated analog input variant) and the SAO143 analog output module to form a complete I/O subsystem capable of closed-loop process control. The module slots into the ANB10D or ANB11D node unit, which provides the structural backplane and power distribution for the entire I/O assembly.

For installations requiring high-density signal acquisition, the SAI143-HE3 is commonly paired with the ADM11B A/D multiplexer module and the SCP451 field control processor, which handles real-time execution of control logic and communicates upstream via the Vnet/IP high-speed Ethernet-based control network. In hazardous area applications — such as Zone 1 or Zone 2 classified environments in oil refineries or chemical plants — field signals are first conditioned through YOKOGAWA MTL Zener barriers or galvanic isolators before reaching the SAI143-HE3 input terminals, ensuring intrinsic safety compliance and protecting the module from voltage transients.

Power integrity for the entire FCS cabinet is maintained by the PW481 or PW482 redundant power supply units, which deliver clean, regulated 24 VDC to all I/O modules including the SAI143-HE3. For communication redundancy, the system relies on dual BCV1D Vnet/IP communication modules installed in the field control station, ensuring that a single network fault does not interrupt process data flow. Relay output modules such as the SDV144 digital output module handle actuator commands, while the SSI143 safety I/O module manages SIL-rated interlock signals within the same cabinet — creating a unified, deeply integrated safety and control environment where the SAI143-HE3 plays a foundational role in field signal acquisition.

Application in Critical Infrastructure

The YOKOGAWA SAI143-HE3 is deployed across the most demanding sectors of global critical infrastructure. In upstream oil and gas operations — including offshore platforms and onshore wellhead facilities — the module continuously acquires pressure, temperature, and flow signals from field transmitters, feeding real-time data to the CENTUM VP DCS for production optimization and emergency shutdown coordination. Its high EMI immunity ensures stable operation even in environments saturated with radio frequency interference from communication equipment and variable frequency drives.

In coal-fired and gas-fired power generation plants, the SAI143-HE3 monitors boiler drum levels, turbine exhaust temperatures, and feedwater flow rates with the millisecond-level scan rates required for safe combustion control. The module’s tolerance for elevated ambient temperatures — common in turbine halls and boiler rooms — ensures continuous operation without thermal derating or signal drift.

Within municipal and industrial water treatment facilities, the SAI143-HE3 acquires signals from pH sensors, dissolved oxygen probes, and chlorine analyzers distributed across treatment stages. Its resistance to humidity and corrosive atmospheres — typical in wet process environments — makes it a reliable long-term installation without requiring frequent recalibration or replacement.

In metallurgical and steel production environments, where mechanical vibration from rolling mills and electromagnetic noise from arc furnaces are constant challenges, the SAI143-HE3’s vibration-resistant design and differential input architecture suppress common-mode interference, preserving signal accuracy for temperature and pressure monitoring in continuous casting and hot rolling processes. Its proven track record in these environments makes it a trusted spare part for maintenance engineers managing aging CENTUM VP installations.

Security & Quality FAQ

Q1: Does the SAI143-HE3 come with a warranty?
Yes. Every SAI143-HE3 unit supplied by TOPNLMS is covered by a 12-month full functional warranty from the date of shipment. If the module fails to perform to YOKOGAWA factory specifications within the warranty period, we will provide a replacement or full refund. Our warranty applies to both new and tested-good used units, each of which undergoes pre-shipment functional verification.

Q2: How is the module tested before shipment?
All SAI143-HE3 modules in our inventory are subjected to a multi-point inspection protocol prior to dispatch. This includes visual inspection for physical damage, power-on functional testing, channel-by-channel signal verification, and communication bus integrity checks. Units that do not pass all test criteria are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the SAI143-HE3 compatible with my existing CENTUM VP system version?
The SAI143-HE3 is compatible with CENTUM VP R4.xx, R5.xx, and R6.xx releases. It is also backward-compatible with CENTUM CS 3000 systems when used with the appropriate node adapter hardware. If you are uncertain about compatibility with your specific system revision or FCS configuration, please contact our technical team with your system version and node unit model — we will confirm compatibility before shipment.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of YOKOGAWA CENTUM VP I/O modules, including the SAI143-HE3, to support both planned maintenance schedules and emergency breakdown situations. We understand that unplanned downtime in critical process industries carries significant financial and safety consequences. Our standard lead time for in-stock units is 3–7 business days for international shipments, with expedited options available. For customers managing aging DCS installations, we recommend establishing a standing spare parts agreement to ensure module availability when needed.
