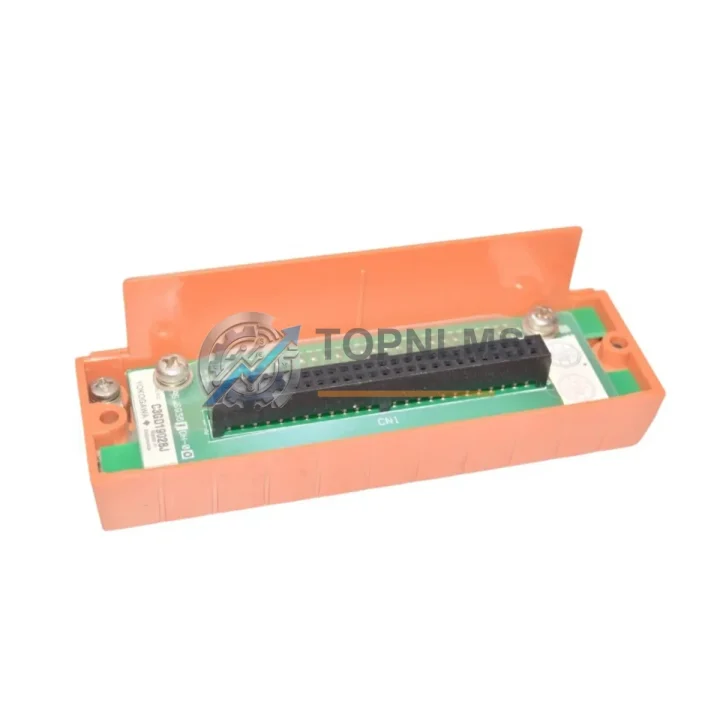

Yokogawa S9361DH-00 Ruggedized Digital I/O Module

Product Overview

Yokogawa S9361DH-00 Ruggedized Digital I/O Module: Industrial Resilience for Harsh Environments

The Yokogawa S9361DH-00 is a high-density Digital I/O Module engineered for the CENTUM VP Distributed Control System (DCS) — one of the most trusted process automation platforms deployed across oil & gas, petrochemical, power generation, water treatment, and heavy metallurgical industries worldwide. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the S9361DH-00 delivers the signal integrity and operational stability that mission-critical control loops demand.

Unlike generic I/O modules, the S9361DH-00 is purpose-built for the CENTUM VP architecture, ensuring seamless integration with Yokogawa’s field control stations, engineering workstations, and human-machine interface layers. Its rugged construction and conformal-coated PCB provide robust protection against corrosive atmospheres and condensation — conditions routinely encountered in offshore platforms, underground mining operations, and coastal chemical plants.

Rugged Specifications Table

Comprehensive Protection Solutions

The S9361DH-00 does not operate in isolation — it is a critical node within a broader CENTUM VP control architecture. In a typical field control station cabinet, this module works in concert with the Yokogawa S9361DH-10 and S9361DH-20 variants to expand digital I/O capacity across multiple process units. Analog signal conditioning is handled upstream by modules such as the Yokogawa AAI141-S00 analog input module, which feeds 4–20 mA field signals into the same control station backplane.

For power distribution within the control cabinet, the Yokogawa PW481 power supply module provides stable, redundant 24 VDC rails that sustain the S9361DH-00 and adjacent I/O modules during grid fluctuations or momentary outages — a common occurrence in heavy industrial environments. Communication between the field control station and the operator workstation is maintained through the Yokogawa ESB10D extended serial bus coupler, ensuring that digital status signals captured by the S9361DH-00 are transmitted to the CENTUM VP HIS (Human Interface Station) with minimal latency.

In safety-instrumented system (SIS) architectures, the S9361DH-00 is frequently deployed alongside Yokogawa ProSafe-RS safety I/O modules, where its digital outputs drive solenoid valves, motor starters, and emergency shutdown relays. Terminal block assemblies — including the Yokogawa TB820V — provide the field wiring interface, offering screw-clamp terminations rated for the vibration levels found in compressor halls and turbine enclosures. For installations requiring HART pass-through or fieldbus integration, the Yokogawa PFCS field communication server bridges the CENTUM VP I/O layer with FOUNDATION Fieldbus and PROFIBUS PA field devices, extending the reach of the digital I/O infrastructure into intelligent transmitter networks.

When replacing aging modules in legacy CENTUM CS 3000 installations being migrated to CENTUM VP, the S9361DH-00 serves as a direct functional replacement for earlier-generation digital I/O cards, reducing re-engineering costs and minimizing downtime during phased system upgrades.

Application in Critical Infrastructure

In oil and gas upstream operations, the S9361DH-00 monitors wellhead valve positions, pump run/stop status, and emergency shutdown system (ESD) feedback signals — all in environments where ambient temperatures can exceed 50°C and salt-laden air accelerates corrosion of unprotected electronics. Its optical isolation barrier prevents ground loops and transient voltage spikes — generated by variable frequency drives controlling submersible pumps — from corrupting the digital signal chain.

At coal-fired and gas-fired power generation plants, the module manages burner management system (BMS) interlocks, turbine auxiliary control signals, and boiler drum level alarm outputs. The continuous duty cycle of power plant operations — often 8,760 hours per year without scheduled downtime — demands the kind of mean-time-between-failure (MTBF) performance that Yokogawa’s CENTUM VP platform is internationally recognized for delivering.

In municipal and industrial water treatment facilities, the S9361DH-00 controls chlorination dosing pump enable signals, UV disinfection system interlocks, and filter backwash sequencing — processes where a missed digital signal can result in regulatory non-compliance or public health risk. The module’s deterministic scan cycle ensures that all 32 digital channels are updated within the field control station’s defined control period, typically 100 ms or 200 ms, providing the real-time response that water quality control demands.

In metallurgical and steel production environments, where electromagnetic interference from arc furnaces and induction heaters is severe, the S9361DH-00’s EMI-hardened design maintains signal fidelity across all digital channels. Its conformal coating resists the metallic dust and flux fumes that routinely degrade unprotected PCBs in smelting and casting facilities.

Mining operations — both surface and underground — rely on the S9361DH-00 for conveyor belt interlock monitoring, ventilation fan control, and hoisting system safety feedback. The module’s wide operating temperature range accommodates the thermal extremes found between deep underground headings and surface processing plants in arctic or desert climates.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Yokogawa S9361DH-00?
Every S9361DH-00 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement unit or full refund — no bureaucratic delays. Our warranty process is documented and transparent, designed for procurement teams that require contractual assurance before approving capital spares purchases.

Q2: How is each unit tested before shipment?
All S9361DH-00 modules undergo pre-shipment functional verification, including power-on self-test confirmation, visual inspection for physical damage, and channel continuity checks where applicable. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation. We do not ship modules that fail inspection — our rejection rate is tracked internally as a quality KPI, and we maintain records available upon request for ISO-audited procurement processes.

Q3: Is the S9361DH-00 compatible with both CENTUM VP R5 and R6 revisions?
The S9361DH-00 is designed for the CENTUM VP platform and is compatible across multiple revision levels of the system software, including R5.xx and R6.xx releases. For installations running CENTUM CS 3000, functional compatibility depends on the specific field control station model and I/O nest configuration. We recommend confirming your FCS model number and software revision with our technical team prior to ordering — contact us at [email protected] for a compatibility confirmation within one business day.

Q4: Can TOPNLMS support long-term or repeat supply of the S9361DH-00 for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand CENTUM VP I/O modules, including the S9361DH-00, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We work with plant maintenance managers, MRO procurement teams, and EPC contractors to establish reliable supply pipelines. Bulk pricing, reserved stock arrangements, and priority shipping options are available — contact our sales team to discuss a supply agreement tailored to your facility’s maintenance schedule.
