Yokogawa S9260DE-01 Replacement for STARDOM FCN/FCJ

Product Overview

Yokogawa S9260DE-01 Replacement for STARDOM FCN/FCJ: Smooth Migration & Legacy System Upgrade

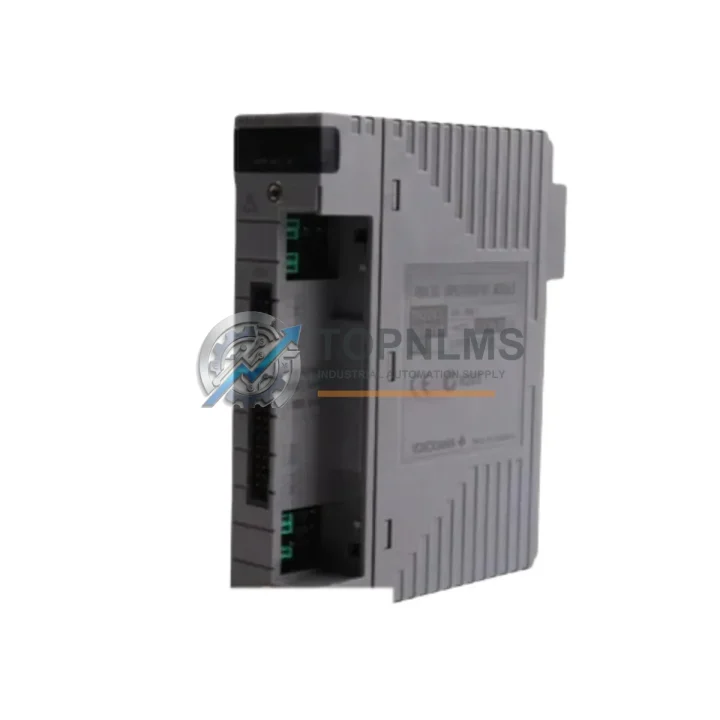

The Yokogawa S9260DE-01 is a 32-channel digital input/output module designed for the STARDOM FCN/FCJ autonomous controller platform. As industrial facilities worldwide accelerate the retirement of aging DCS and PLC architectures, the S9260DE-01 has become a critical component in both direct replacement projects and phased migration strategies. Whether your plant is transitioning from a legacy Yokogawa CENTUM CS 3000 distributed control system, decommissioning an older STARDOM FCN-100 rack, or consolidating I/O infrastructure across multiple control cabinets, this module provides a verified, drop-in upgrade path that minimises engineering rework and unplanned downtime.

Field engineers frequently encounter the S9260DE-01 when replacing end-of-life digital I/O cards in FCN-500 and FCJ controllers. The module’s 24 VDC sink/source input architecture is electrically compatible with the wiring conventions used in earlier STARDOM generations, meaning existing field cable terminations, marshalling panels, and terminal blocks can typically be retained without modification. This wiring compatibility is one of the most significant cost-reduction factors in any brownfield retrofit, eliminating the need to re-pull cables or re-label junction boxes across the plant floor.

From a communications standpoint, the S9260DE-01 integrates natively with the FCN/FCJ backplane bus, supporting the same internal data exchange protocols used by companion modules such as the S9260AE-01 analog input card and the S9260CE-01 counter/pulse input module. Plants running Modbus TCP or FOUNDATION Fieldbus segments through an FCN gateway will find that adding or swapping an S9260DE-01 requires no changes to the network topology or IP addressing scheme. The module is recognised automatically by the FCN’s LD (Ladder Diagram) and FBD (Function Block Diagram) engineering environments, reducing re-commissioning time to a matter of hours rather than days.

Physical installation follows the standard STARDOM FCN module form factor. The S9260DE-01 slides into any available I/O slot on the FCN-500 base unit or the FCJ compact controller chassis without requiring additional mounting hardware. Control cabinet space is preserved, which is a decisive advantage in retrofit projects where panel real estate is constrained by legacy equipment that cannot yet be decommissioned. Engineers migrating from older third-party PLCs — such as discontinued Siemens S5 remote I/O racks or Allen-Bradley SLC 500 digital I/O cards — will need to account for differences in connector pitch and terminal block style, but the S9260DE-01’s screw-terminal field wiring interface simplifies adaptation.

Power supply requirements are straightforward: the module draws its logic power from the FCN backplane, with field-side circuits powered by the plant’s existing 24 VDC distribution rail. This eliminates the need for a dedicated power module swap during replacement, unlike some competing I/O platforms that require a matched PSU upgrade when expanding channel density. If your migration plan includes adding an S9260PE-01 power supply module or upgrading the FCN’s CPU card to the latest firmware revision, the S9260DE-01 is fully compatible with both the current and previous generations of FCN system software.

For facilities managing spare-parts inventory across multiple STARDOM nodes, the S9260DE-01 is interchangeable across FCN-100, FCN-500, and FCJ controller variants, simplifying warehouse stocking strategies and reducing the number of unique part numbers that maintenance teams must track. This cross-compatibility also benefits plants running hybrid architectures where FCN controllers handle safety-critical sequences while FCJ units manage auxiliary utilities — a single S9260DE-01 spare covers both platforms.

During system commissioning and loop testing, the module’s LED status indicators provide channel-level diagnostics that align with the fault codes displayed in Yokogawa’s FAST/TOOLS SCADA and Exaopc OPC server environments. This integration accelerates fault isolation during startup and simplifies handover documentation for operations teams. When combined with the FCN’s built-in self-diagnostic routines and the plant historian’s I/O health trending, maintenance intervals can be extended and predictive replacement schedules established well before a module reaches end of service life.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete STARDOM FCN/FCJ migration typically involves more than a single I/O card swap. Alongside the S9260DE-01, engineers commonly source the S9260AE-01 analog input module to replace legacy analog I/O cards in the same chassis, and the S9260CE-01 counter/pulse input module for high-speed digital signal applications such as flow metering and encoder feedback. Where the FCN-500 base unit itself is being refreshed, the FCN CPU module and the S9260PE-01 power supply module are standard co-procurement items that ensure the entire controller assembly is brought to a consistent firmware and hardware revision level.

Communication infrastructure upgrades frequently accompany I/O modernisation. The FCN’s built-in Ethernet port handles Modbus TCP traffic natively, but plants adding PROFIBUS DP or DeviceNet field devices will require the appropriate FCN communication module to bridge legacy field networks. For marshalling and signal conditioning, DIN-rail-mounted signal isolators and terminal block assemblies from the plant’s existing supplier base can be retained, provided their voltage and current ratings match the S9260DE-01’s field-side specifications. HMI panels connected to the FCN via OPC-UA or FAST/TOOLS can continue operating without modification once the I/O module swap is complete and the FCN configuration is downloaded.

Retrofit Guidance FAQ

Can I reuse existing field wiring? In most cases, yes. The S9260DE-01 uses the same 24 VDC screw-terminal interface as the modules it replaces within the STARDOM FCN/FCJ family. Verify terminal numbering against the original wiring diagram before powering up.

Do I need to modify my FCN program? No re-programming is required for a like-for-like replacement. The FCN engineering tool recognises the S9260DE-01 automatically. If you are expanding channel count or changing I/O assignments, only the affected function blocks need updating.

Is the module compatible with older FCN firmware? The S9260DE-01 is compatible with FCN system software R3.x and later. Contact our technical team if your site is running an earlier revision.

How much panel space does the module require? The S9260DE-01 occupies one standard FCN I/O slot. No additional DIN rail space or cabinet modifications are needed.

What if I am migrating from a non-Yokogawa PLC? Wiring adapters and terminal block converters are available for common third-party connector formats. Our team can advise on the correct adapter for your specific legacy system.

How long does commissioning take? A direct replacement typically takes 1–2 hours including loop testing. Cross-platform migrations involving wiring changes may require a planned maintenance window of 4–8 hours.

Warranty Assurance

Every S9260DE-01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including power-on self-test, channel continuity checks, and communication bus handshake confirmation. Units that fail any stage of pre-shipment testing are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgement and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimise plant downtime. Detailed test records and shipping documentation are provided with every order to support your incoming inspection and asset management processes.

For volume procurement, blanket orders, and project-based supply agreements, please contact our sales team directly to discuss lead times, pricing, and consignment stocking arrangements.
