YOKOGAWA NFDV561-P01 Replacement Solution for CENTUM VP

Product Overview

YOKOGAWA NFDV561-P01 Replacement Solution for CENTUM VP: Smooth Migration from Legacy DCS to Modern Control Architecture

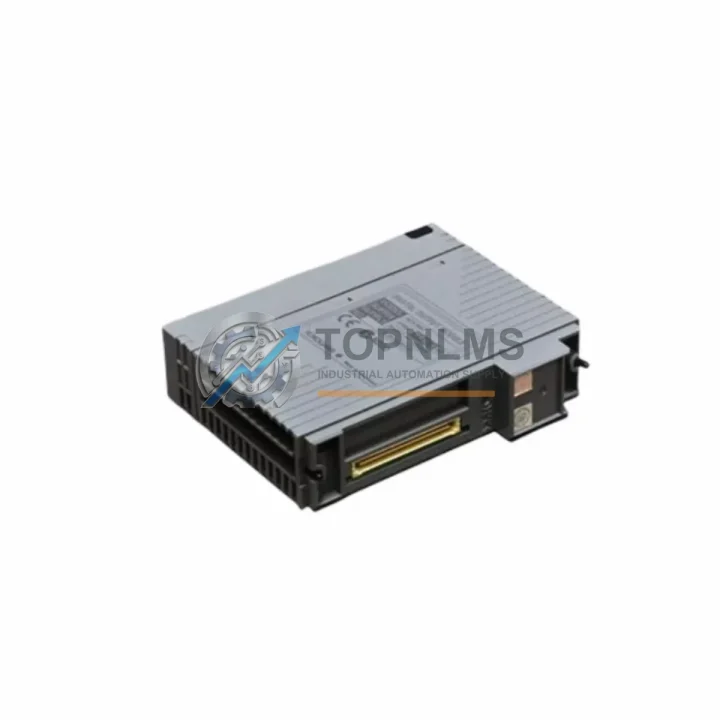

The YOKOGAWA NFDV561-P01 is a 16-channel digital output module engineered for the CENTUM VP Distributed Control System platform. As industrial facilities worldwide accelerate the retirement of aging CENTUM CS 3000 and CENTUM VP legacy I/O subsystems, the NFDV561-P01 has emerged as the preferred drop-in replacement and upgrade path for engineers seeking to preserve existing field wiring, cabinet layouts, and control logic while modernizing their process automation infrastructure.

This module delivers 16 discrete digital output channels with transistor-type sink output, designed to interface directly with solenoid valves, motor starters, relay coils, and indicator lamps in process plant environments. Its compact form factor is optimized for the YOKOGAWA FCS (Field Control Station) node unit rack, allowing direct slot-for-slot substitution without mechanical modification to the control cabinet. Engineers migrating from the earlier NFDV561 or NFDV541 series will find that the NFDV561-P01 maintains full backward compatibility with existing terminal block wiring, eliminating the need for rewiring campaigns that typically account for 40–60% of retrofit project costs.

When planning a CENTUM VP I/O migration, the NFDV561-P01 is typically deployed alongside the NFAI141-S00 analog input module and NFAO141-S00 analog output module to complete a mixed I/O node upgrade. The module slots into the same node unit baseplate as the NFDV561, and the FCS automatically recognizes the replacement module upon power-up, provided the engineering database (EDB) configuration in CENTUM VP Builder has been updated to reflect the new module address. No changes to the SFC (Sequential Function Chart) or FBD (Function Block Diagram) control logic are required in most standard migration scenarios.

For facilities running CENTUM CS 3000 R3 or earlier, the migration path to CENTUM VP typically involves replacing the ACF11 or ACF12 field control units with the PFCS or SFCS processor cards, and updating the I/O node units to accept the current NFDV561-P01 module generation. During this transition, the NFCP701 communication module and NFCP702 dual-redundant communication module remain compatible with the existing Vnet/IP control network, preserving the high-speed deterministic communication backbone without requiring a full network infrastructure replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP I/O node migration rarely involves a single module in isolation. In practice, the NFDV561-P01 digital output module is deployed as part of a coordinated upgrade that addresses the full I/O node architecture. Engineers typically pair this module with the NFDI141-S00 digital input module to complete the discrete I/O complement of a node unit, ensuring that both input sensing and output actuation are upgraded simultaneously to eliminate mixed-generation compatibility risks.

On the analog side, the NFAI141-S00 16-channel analog input module and NFAO141-S00 8-channel analog output module are the standard companions for process variable measurement and control signal output. These modules share the same node unit baseplate and are configured through the same CENTUM VP Builder engineering environment, allowing a single commissioning session to cover the entire I/O node upgrade.

Power supply integrity is critical during any live migration. The CENTUM VP node unit draws regulated 24 VDC from the NFPS701 power supply module, and it is strongly recommended to inspect or replace the power supply module concurrently with I/O module upgrades, particularly in installations where the original power supply has been in service for more than seven years. A failing power supply is the most common cause of intermittent module faults during post-migration commissioning.

Communication continuity is maintained through the NFCP701 or NFCP702 communication module, which handles the Vnet/IP interface between the node unit and the FCS processor. In dual-redundant configurations, both communication modules must be present and healthy before initiating a hot-swap replacement of any I/O module. The YOKOGAWA PFCS or SFCS processor card in the FCS cabinet manages the redundancy switchover logic and will log any module replacement events in the system alarm history.

For facilities that also operate YOKOGAWA STARDOM or ProSafe-RS safety systems in the same plant, the digital output signals from the NFDV561-P01 can be interfaced to the safety system via hardwired interlock circuits or through the plant’s DCS-to-SIS gateway. Signal isolators such as the YOKOGAWA MTL or P+F series barriers are commonly used at this interface boundary to ensure galvanic isolation and SIL compliance. Additionally, YOKOGAWA Exaopc OPC server software provides the data bridge between the CENTUM VP historian and third-party SCADA or MES platforms, preserving data continuity across the migration boundary.

Retrofit Guidance FAQ

Q: Can I replace the NFDV561-P01 without shutting down the FCS?
A: Yes. The CENTUM VP node unit supports hot-swap replacement of I/O modules while the FCS remains in RUN mode, provided the node unit is not in a single-module configuration for that I/O type. Always verify the FCS redundancy status and confirm that the output channels are in a safe state (de-energized or held at last value) before removing the module. Follow YOKOGAWA’s hot-swap procedure documented in IM 33J01B30-01EN.

Q: Do I need to modify my control logic after replacing the module?
A: In most cases, no. The NFDV561-P01 is functionally equivalent to the NFDV561 and NFDV541 in terms of channel count, output type, and signal range. The only required change is updating the module type entry in the CENTUM VP Builder EDB to reflect the -P01 suffix. After downloading the updated EDB to the FCS, the module will be recognized automatically. No changes to SFC sequences, FBD function blocks, or tag assignments are required.

Q: Is the field wiring terminal block compatible?
A: Yes. The NFDV561-P01 uses the same terminal block connector standard as the legacy NFDV561 series. Existing field cables, ferrules, and terminal assignments are fully retained. No rewiring is required at the marshalling cabinet or junction box level.

Q: What communication protocol does the NFDV561-P01 use?
A: The module communicates via the CENTUM VP node unit’s internal bus, which interfaces to the FCS through the Vnet/IP control network. Vnet/IP is YOKOGAWA’s proprietary high-speed Ethernet-based control network operating at 1 Gbps with deterministic latency. No additional protocol converters or gateways are required when replacing within the same CENTUM VP system generation.

Q: What if my control cabinet has limited space?
A: The NFDV561-P01 occupies the same physical slot dimensions as the legacy module it replaces. No additional DIN rail space, cable duct modifications, or cabinet door clearance changes are required. The module’s front-panel LED indicators are repositioned slightly compared to earlier revisions, but this does not affect installation or operation.

Q: How do I verify the module is functioning correctly after installation?
A: After hot-swap or cold installation, use the CENTUM VP HIS (Human Interface Station) to navigate to the FCS hardware status display. The node unit will report the new module’s status within 30 seconds of power-up. Perform a channel-by-channel output test using the CENTUM VP manual output function to verify each of the 16 digital output channels before returning the FCS to automatic control mode.

Warranty Assurance

Every YOKOGAWA NFDV561-P01 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional inspection that includes power-on self-test verification, channel output continuity check, and visual inspection of the PCB, connector pins, and front-panel indicators. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module dispatch within 3 business days of claim confirmation, subject to stock availability. For critical process applications where downtime cost is high, we recommend maintaining one spare NFDV561-P01 module on-site as part of your critical spare parts inventory strategy. Our team can advise on minimum spare holdings based on your installed base and MTBF data.

Shipping is available worldwide from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options depending on urgency and order volume. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment to facilitate customs clearance in your destination country.

For procurement inquiries, technical pre-sales support, or warranty claims, contact our industrial automation team directly.
