YOKOGAWA SAI533-H03 Upgrade Solution for CENTUM VP

Product Overview

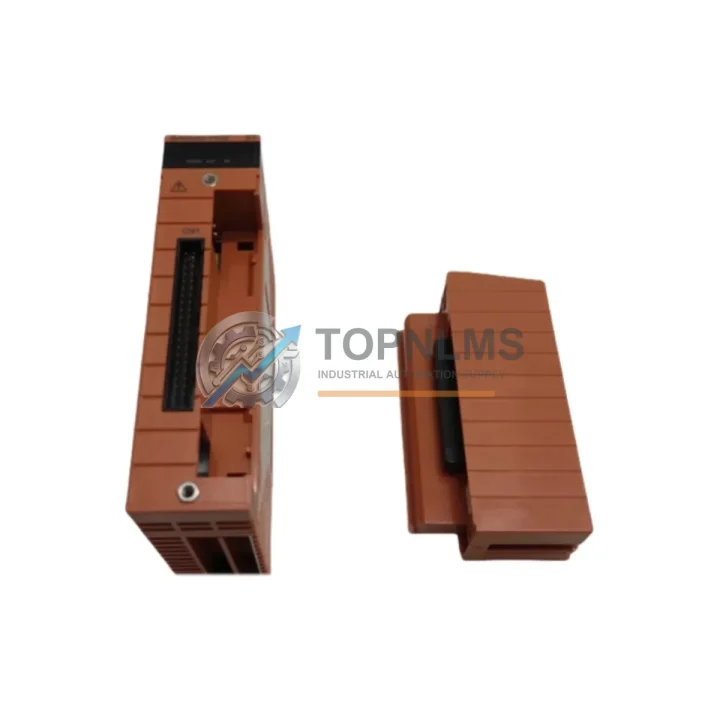

YOKOGAWA SAI533-H03 Upgrade Solution for CENTUM VP — Smooth Transition, Zero Compromise

When a legacy CENTUM VP DCS system reaches end-of-life or a critical analog input module fails on the plant floor, every hour of unplanned downtime translates directly into production loss and safety risk. The YOKOGAWA SAI533-H03 is a proven, original analog input module engineered for seamless integration into CENTUM VP and CENTUM-XL control architectures. Whether you are executing a planned system migration, replacing a failed card in an emergency shutdown scenario, or building a strategic spare-parts inventory to protect aging infrastructure, the SAI533-H03 delivers the electrical compatibility, signal accuracy, and mechanical fit that maintenance engineers demand.

The SAI533-H03 accepts standard 4–20 mA analog input signals and interfaces directly with the CENTUM VP field control station (FCS) I/O bus without requiring any rewiring of existing field junction boxes or marshalling cabinets. This plug-and-play compatibility is the single most important factor in reducing retrofit labor costs and minimizing the commissioning window during a scheduled turnaround. Engineers who have previously managed migrations from older CENTUM-XL or CENTUM CS 3000 platforms will recognize that the SAI533-H03 shares the same terminal block pinout convention, allowing existing field cables to be reconnected without modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP migration rarely involves replacing a single card in isolation. In practice, the SAI533-H03 swap is most efficient when the surrounding I/O infrastructure is evaluated at the same time. During the card replacement procedure, maintenance teams should inspect the SAO400 analog output modules installed in adjacent slots of the same FCS nest — these cards share the same backplane power rail and any degradation in the output section can introduce ground loops that affect the newly installed analog input readings.

If the plant is transitioning from a CENTUM CS 3000 architecture, the migration plan should also account for the communication interface between the FCS and the HIS (Human Interface Station). The ESB bus coupler modules that bridge the FCS nest to the Vnet/IP Ethernet backbone are a common point of failure in aging systems, and replacing the SAI533-H03 without verifying the ESB coupler health can result in intermittent data loss that is difficult to diagnose post-commissioning. Similarly, the ALR111 alarm module and the BCV048 bus converter are frequently overlooked during I/O card replacements but are critical to maintaining signal integrity across the full control loop.

For plants running hybrid architectures where CENTUM VP coexists with legacy Modbus RTU field devices, the AMC80 communication module provides the protocol gateway function. Verifying that the AMC80 firmware is current before commissioning the SAI533-H03 ensures that analog input data is correctly mapped to the DCS tag database without requiring manual offset corrections. In control cabinets where space is constrained, the ANB10D node interface unit can be used to extend the I/O nest capacity without modifying the existing cabinet structure, which is particularly valuable in brownfield retrofit projects where the original cabinet dimensions cannot be changed.

Power distribution within the FCS cabinet should also be reviewed. The PW481 power supply module that feeds the I/O nest operates at its rated capacity in many aging installations, and adding a replacement analog input module — even one with identical power draw — warrants a load calculation review. Stocking a spare PW481 alongside the SAI533-H03 is a recognized best practice in YOKOGAWA CENTUM VP preventive maintenance programs. Finally, for sites that use HART-enabled field instruments, confirming that the SAI533-H03 variant installed supports HART pass-through communication prevents the need for a secondary HART multiplexer installation.

Retrofit Guidance FAQ

Q1: Can the SAI533-H03 be installed without rewiring existing field cables?
Yes. The SAI533-H03 uses the same terminal block pinout as the CENTUM VP standard analog input series. Field cables connected to the original module can be transferred directly to the replacement card without modification, provided the cable labeling is verified against the loop drawing before removal. This is the primary reason the SAI533-H03 is the preferred replacement choice for emergency shutdowns where rewiring time is not available.

Q2: Is the SAI533-H03 compatible with CENTUM CS 3000 and CENTUM-XL platforms?
The SAI533-H03 is designed and certified for CENTUM VP. Physical card dimensions are compatible with CENTUM CS 3000 FCS nests in most configurations, but full software recognition requires CENTUM VP Builder. For CENTUM-XL migrations, a platform-level upgrade of the FCS is typically required before the SAI533-H03 can be commissioned. Contact our technical team with your existing FCS model number for a compatibility confirmation before ordering.

Q3: What commissioning steps are required after installing the SAI533-H03?
After physical installation, the CENTUM VP Builder engineering tool will automatically detect the new module during the next FCS download. Channel tag assignments, range settings, and alarm limits are retained from the existing database if the replacement card is the same model. A loop check on all 16 channels is recommended before returning the FCS to automatic control. No special firmware flashing is required for standard SAI533-H03 variants.

Q4: How does TOPNLMS verify the SAI533-H03 before shipment?
Every SAI533-H03 unit shipped by TOPNLMS undergoes a pre-shipment functional test that verifies analog input signal reception across all channels, backplane connector integrity, and LED status indicator operation. Units are shipped in anti-static packaging with a test report. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or refund is processed within 5 business days of a confirmed warranty claim.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every YOKOGAWA SAI533-H03 unit. Warranty coverage begins from the date of confirmed delivery and covers all functional defects attributable to the module itself under normal DCS operating conditions. In the event of a warranty claim, our technical support team responds within 24 hours to assess the fault. Confirmed warranty replacements are dispatched within 5 business days. We maintain buffer stock of the SAI533-H03 specifically to support warranty exchange without lead-time delays.

All units are sourced from authorized YOKOGAWA distribution channels and are supplied with original manufacturer packaging where available. Pre-shipment testing documentation is included with every order. For procurement teams requiring formal quality assurance documentation, a certificate of conformance can be provided upon request at no additional charge.

Global shipping is available from our Xiamen warehouse. Standard export documentation including commercial invoice, packing list, and country-of-origin certificate (Japan) is provided for all international orders. Expedited shipping options are available for emergency replacement scenarios.
