YOKOGAWA NFDR541-P00-S2 Replacement for STARDOM FCN/FCJ: Seamless Transition & Legacy System Upgrade

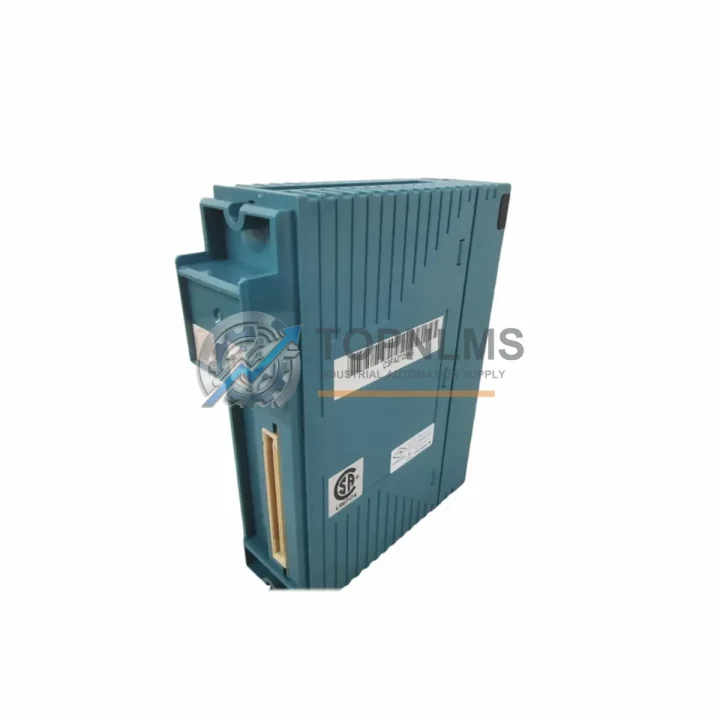

The YOKOGAWA NFDR541-P00-S2 is a 16-channel relay digital output (DO) module designed for the STARDOM FCN/FCJ autonomous controller platform. As industrial facilities worldwide accelerate the retirement of aging DCS and PLC infrastructure, the NFDR541-P00-S2 has become a critical spare and direct replacement component for engineers managing STARDOM-based control systems. Whether you are replacing a failed module, building a hot-standby spare inventory, or executing a phased migration from an older YOKOGAWA STARDOM configuration, this module delivers the relay output performance and rack compatibility your system demands — without requiring changes to your existing wiring, I/O mapping, or control logic.

The NFDR541-P00-S2 slots directly into the FCN or FCJ controller chassis, maintaining full compatibility with the STARDOM system bus and the existing FCN-RTU or FCJ node architecture. Engineers transitioning from earlier NFDR series variants or from discontinued YOKOGAWA I/O modules will find that the physical form factor, terminal block pinout, and relay contact ratings are preserved, minimizing retrofit labor and eliminating the need for panel rewiring. The module supports 16 independent relay output channels, each capable of switching field devices including solenoid valves, motor starters, alarm annunciators, and discrete actuators commonly found in process automation, utilities, and infrastructure control applications.

For sites running mixed STARDOM configurations — where FCN autonomous controllers share a control cabinet with FCJ compact nodes — the NFDR541-P00-S2 integrates into both hardware platforms without firmware modification. The module communicates over the internal STARDOM I/O bus, and its channel assignments are recognized automatically by the FCN/FCJ CPU module upon hot insertion or cold restart, reducing commissioning time during emergency replacements. Field engineers performing live system maintenance will appreciate that the relay output status is preserved in the controller’s I/O image table, allowing seamless handoff between the outgoing and replacement module with minimal process disruption.

When planning a broader STARDOM system upgrade or migration, the NFDR541-P00-S2 is typically deployed alongside complementary I/O and communication modules. Sites upgrading from older FCN-100 or FCN-500 series hardware often source the NFDR541-P00-S2 together with digital input modules such as the NFDV141 or NFDI141 series, analog input modules including the NFAI141 or NFAV141, and analog output modules from the NFAO141 family to complete a full I/O bay refresh. Communication continuity is maintained through STARDOM-compatible Ethernet communication modules and, where legacy serial fieldbus connections remain active, through RS-232C or RS-485 interface modules already installed in the FCN chassis. Power supply modules within the FCN rack — including the NFPS series — should be inspected and replaced as part of any comprehensive module swap to ensure stable 24 VDC rail voltage across all I/O slots.

For facilities migrating from third-party PLC platforms to YOKOGAWA STARDOM, or consolidating multiple legacy controllers into a unified FCN/FCJ architecture, the NFDR541-P00-S2 provides the relay output density needed to interface with existing field wiring without intermediate signal conditioning. In applications where the outgoing controller used a different relay output module with a different terminal block pitch or contact configuration, a terminal adapter or marshalling panel may be required — however, in the majority of STARDOM-to-STARDOM replacement scenarios, the existing field cables can be reconnected directly to the NFDR541-P00-S2 terminal block without modification. This significantly reduces the risk of wiring errors during cutover and shortens the overall maintenance window.

From a system architecture perspective, the NFDR541-P00-S2 supports the STARDOM platform’s distributed I/O philosophy, where FCN and FCJ nodes can be deployed across geographically separated process areas while communicating with a central SCADA or DCS host over Ethernet. This makes the module equally suitable for greenfield STARDOM deployments and for brownfield upgrades where existing field junction boxes and marshalling cabinets are retained. The relay output channels are individually configurable for normally open (NO) or normally closed (NC) operation through the FCN/FCJ engineering tool, allowing engineers to match the output logic of the replaced module without modifying the application program.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful STARDOM FCN/FCJ system upgrade or emergency module replacement rarely involves a single component. In practice, engineers sourcing the NFDR541-P00-S2 relay output module are typically also evaluating adjacent I/O slots and communication infrastructure within the same FCN chassis or control cabinet. Digital input coverage is commonly addressed with NFDV141 or NFDI141 series modules, which share the same rack slot form factor and terminal block convention as the NFDR541-P00-S2, allowing a complete I/O bay to be refreshed in a single maintenance window. Analog signal acquisition for process variables such as temperature, pressure, and flow is handled by NFAI141 or NFAV141 analog input modules, while analog control outputs for valve positioners and variable-speed drives are routed through NFAO141 analog output modules installed in adjacent slots.

For sites where the FCN node communicates with field instruments over HART or where legacy serial communication to remote I/O panels must be preserved, STARDOM-compatible communication interface modules provide the necessary protocol bridging without requiring changes to the FCN CPU application program. In control cabinets where the existing NFPS power supply module is approaching end-of-life or showing voltage instability, replacing the power supply in parallel with the NFDR541-P00-S2 relay output module eliminates a common root cause of intermittent relay output faults. Where field signal isolation is required — particularly in high-voltage or electrically noisy environments — signal isolators and relay interface terminals installed in the marshalling section of the control cabinet complement the NFDR541-P00-S2’s onboard relay contacts and extend the operational life of the upgraded I/O assembly. HMI panels connected to the STARDOM FCN node over Ethernet continue to display relay output status without reconfiguration, as the I/O tag database and communication path remain unchanged after module replacement.

Retrofit Guidance FAQ

Q: Can I replace the NFDR541-P00-S2 without modifying my FCN application program?
A: Yes. The NFDR541-P00-S2 is recognized by the FCN/FCJ CPU using the same I/O module type identifier as compatible legacy NFDR relay output modules. In most cases, the replacement module is detected automatically upon insertion, and the existing I/O tag assignments and relay output logic in the application program remain valid without modification.

Q: Do I need to rewire the field cables when installing the NFDR541-P00-S2?
A: In the majority of STARDOM FCN/FCJ replacement scenarios, the removable terminal block from the outgoing module can be transferred directly to the NFDR541-P00-S2, preserving all field wiring connections. If the terminal block is not transferable, the field cables can be reconnected to the new terminal block using the existing wiring documentation without changes to cable routing or labeling.

Q: Is the NFDR541-P00-S2 compatible with both FCN and FCJ controller platforms?
A: Yes. The module is designed for the STARDOM I/O bus architecture shared by both the FCN autonomous controller and the FCJ compact node. Slot assignment and channel configuration are performed through the standard STARDOM FCN/FCJ Engineering Tool and are consistent across both platforms.

Q: What communication protocols does the NFDR541-P00-S2 support?
A: The module communicates internally over the STARDOM I/O bus and does not require a separate fieldbus connection. The FCN/FCJ CPU handles all upstream communication — including Modbus TCP, OPC, and proprietary YOKOGAWA protocols — transparently, so the relay output data is available to SCADA, DCS, and historian systems without additional configuration at the module level.

Q: How much physical space does the NFDR541-P00-S2 require in the FCN chassis?
A: The module occupies a single standard I/O slot in the FCN or FCJ chassis. No additional mounting hardware or slot expanders are required. The module dimensions are consistent with the STARDOM I/O module family, ensuring compatibility with existing control cabinet layouts and DIN rail assemblies.

Q: Can the NFDR541-P00-S2 be used as a spare for a system that is still operational?
A: Yes. Maintaining a spare NFDR541-P00-S2 in inventory is a recommended practice for STARDOM FCN/FCJ systems in critical process applications. The module can be stored in its original packaging and installed without pre-configuration — the FCN CPU will recognize and configure the module automatically upon first insertion.

Warranty Assurance

Every YOKOGAWA NFDR541-P00-S2 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including relay contact continuity testing, backplane connector inspection, and visual quality control to confirm the unit meets YOKOGAWA’s original manufacturing specifications. In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing to minimize impact on your production schedule.

Our sourcing network prioritizes original YOKOGAWA inventory, and all modules are handled and stored in accordance with industrial electronics best practices — including ESD-safe packaging, climate-controlled storage, and traceability documentation. For urgent replacement requirements, expedited shipping from our Xiamen warehouse is available to destinations across Asia, Europe, and the Americas. Our technical team is available to assist with compatibility verification, installation guidance, and post-delivery commissioning support.
