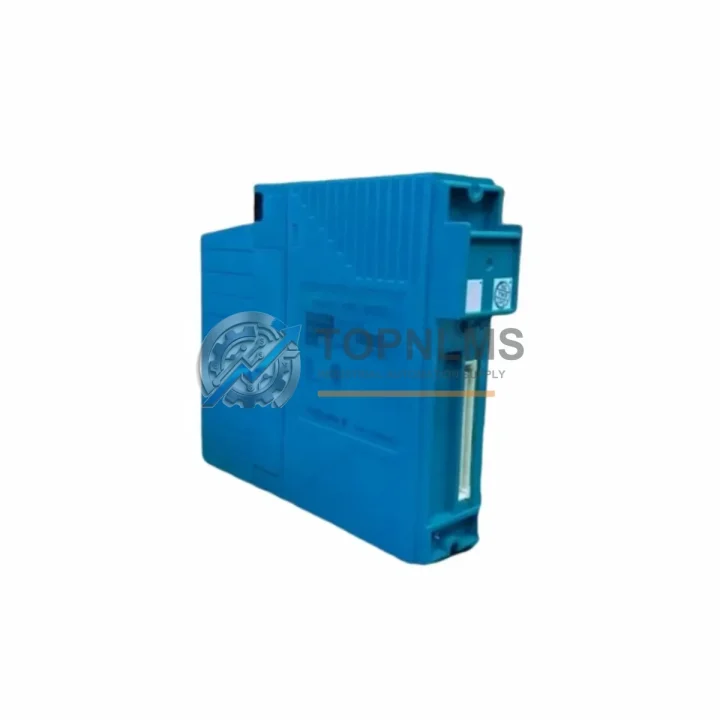

YOKOGAWA NFAI135-S01 Replacement for CENTUM VP

Product Overview

YOKOGAWA NFAI135-S01 Replacement for CENTUM VP: Smooth Migration from Legacy Analog Input Systems

The YOKOGAWA NFAI135-S01 is a 16-channel analog input module designed for the CENTUM VP distributed control system platform. For facilities running aging CENTUM CS 3000 or earlier CENTUM VP field control stations, migrating to or replacing the NFAI135-S01 represents one of the most straightforward upgrade paths available — preserving existing field wiring, I/O signal ranges, and control logic while restoring full system reliability and vendor support coverage.

This module accepts 4–20 mA and 1–5 V DC analog signals across all 16 channels, with individual channel isolation and high-resolution A/D conversion. It mounts directly into the CENTUM VP field control unit (FCU) node unit rack, occupying a standard single-slot position. Engineers migrating from the earlier NFAI131 or NFAI133 series will find that the NFAI135-S01 maintains backward-compatible terminal block wiring assignments, significantly reducing rewiring labor during scheduled turnarounds or emergency replacements.

When planning a CENTUM VP analog input upgrade, the NFAI135-S01 is typically deployed alongside the ANB10D or ANB10S node unit backplane, which provides the communication backbone between field I/O modules and the field control unit processor. Facilities that have already standardized on the FFCS-V or PFCS processor cards will find the NFAI135-S01 integrates without firmware changes, as the module communicates over the internal Vnet/IP or ESB bus depending on the node unit generation in use.

For sites transitioning from third-party DCS platforms — including legacy Honeywell TDC 3000 or Foxboro I/A Series analog input cards — the NFAI135-S01 provides a well-documented migration target. Field signal cables can often be re-terminated directly to the YOKOGAWA terminal block adapters (such as the TB820V or equivalent marshalling terminal units) without replacing home-run cable runs, provided signal types and loop power configurations are verified during the pre-migration audit.

Control cabinet space is a frequent constraint in brownfield retrofit projects. The NFAI135-S01’s compact single-slot form factor allows high-density I/O consolidation within existing CENTUM VP node unit enclosures. In applications where a legacy system used multiple smaller-capacity analog input cards, consolidating to the 16-channel NFAI135-S01 can free rack slots for additional communication modules such as the ALF111 FOUNDATION Fieldbus H1 interface or the ALE111 PROFIBUS DP module, supporting phased migration to digital field instrument networks.

Power supply compatibility is maintained through the standard CENTUM VP node unit power distribution architecture. The NFAI135-S01 draws regulated DC power from the node unit’s internal bus, supplied by the PW481 or PW482 power supply modules. Sites with redundant power configurations should verify that both power supply slots are populated and that the node unit’s power budget accommodates the full complement of I/O modules after the replacement is installed.

From a commissioning standpoint, the NFAI135-S01 is recognized automatically by the CENTUM VP engineering environment (System View / HIS) upon insertion, provided the node unit is online and the FCU database has been pre-configured with the correct I/O module type. No manual driver installation is required. Channel-level calibration data and range settings are retained in the FCU database, meaning that a hot-swap replacement in a redundant node configuration can restore full I/O functionality within minutes of module insertion — a critical advantage for continuous-process industries where minimizing unplanned downtime is paramount.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CENTUM VP analog input migration typically involves more than a single module swap. The ANB10D node unit backplane provides the physical and electrical foundation for the NFAI135-S01 and any co-installed I/O modules. Where digital field communication is being introduced alongside the analog input upgrade, the ALF111 FOUNDATION Fieldbus H1 card or the ALE111 PROFIBUS DP interface can be installed in adjacent slots within the same node unit, enabling a phased transition from 4–20 mA loops to fully digital instrument networks without requiring a new control cabinet.

For sites that need to extend the analog input upgrade across multiple field control stations, the NFAI135-S01 can be deployed in parallel with the NFAI145 (analog output) and NNDI141 (digital input) modules, maintaining a consistent I/O architecture across the plant. The PW481 power supply module should be verified or replaced concurrently to ensure stable power delivery to the expanded I/O complement. Engineering workstations running CENTUM VP’s System View software will require the FCU database to be updated to reflect the new module configuration before the replacement unit is brought online — a process that can be completed offline and downloaded to the FCU during the maintenance window.

Where marshalling cabinet space is being reorganized as part of the upgrade, YOKOGAWA’s TB820V terminal block units provide a clean interface between existing field cable terminations and the new NFAI135-S01 wiring, preserving loop numbering and reducing the risk of mis-termination during the cutover.

Retrofit Guidance FAQ

Q: Can I replace an NFAI131 or NFAI133 with the NFAI135-S01 without rewiring field cables?
A: In most cases, yes. The terminal block wiring assignments are compatible, but you should verify the TB adapter model and confirm that the node unit slot assignment in the FCU database is updated to reflect the NFAI135-S01 module type before powering on.

Q: Does the NFAI135-S01 require a firmware update on the FCU?
A: No firmware update is required. The module is recognized automatically by the CENTUM VP engineering environment. Ensure the FCU database is configured with the correct module type prior to insertion.

Q: Is hot-swap replacement supported?
A: Yes, in redundant node unit configurations. For simplex node units, a brief I/O interruption during module swap should be planned and coordinated with the process control team.

Q: What communication protocol does the NFAI135-S01 use?
A: The module communicates over the node unit’s internal ESB or Vnet/IP bus, depending on the node unit generation. No external fieldbus configuration is required for standard analog I/O operation.

Q: Can this module be used in a CENTUM CS 3000 system?
A: The NFAI135-S01 is designed for CENTUM VP. Compatibility with CENTUM CS 3000 hardware depends on the specific node unit and FCU generation. Please confirm your system architecture before ordering.

Warranty Assurance

Every YOKOGAWA NFAI135-S01 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on testing and visual inspection for physical integrity. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers in active production environments. Our technical team is available to assist with pre-installation verification, compatibility confirmation, and post-installation commissioning queries. We maintain stock of commonly requested CENTUM VP I/O modules to support rapid dispatch for emergency replacement scenarios, with international shipping available to minimize plant downtime.

For procurement teams, we can provide documentation including test records, packing lists, and certificates of conformity upon request. Volume orders and blanket purchase agreements are supported for MRO and spare parts programs.
