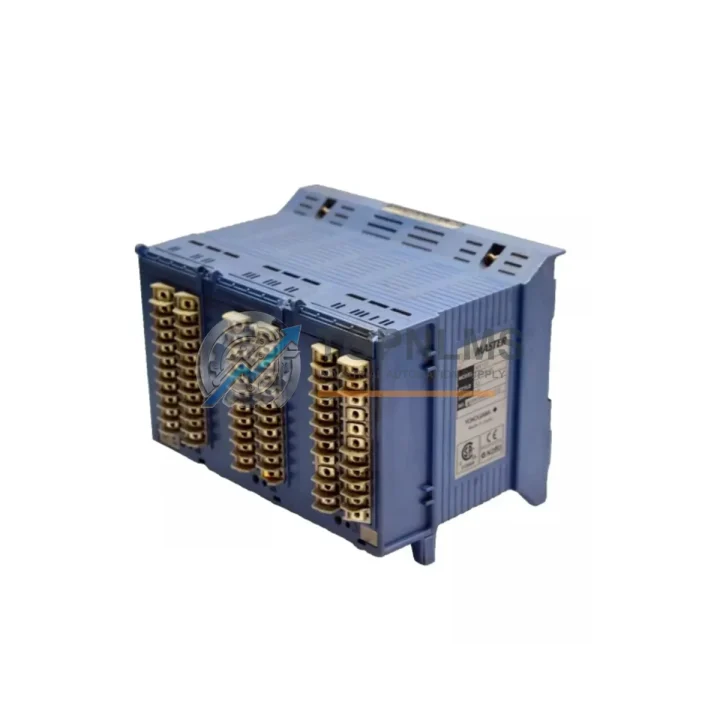

YOKOGAWA MX110-VTD-L30 Original Industrial Spare MX100 Compatible

Product Overview

YOKOGAWA MX110-VTD-L30 Original Industrial Spare — MX100 System Stability & Maintenance Value

The YOKOGAWA MX110-VTD-L30 is a 30-channel thermocouple and millivolt (mV) input module designed for the YOKOGAWA MX100 Distributed Data Acquisition System (ScopeCorder platform). In industrial environments where continuous temperature monitoring, process data logging, and multi-point signal acquisition are mission-critical, maintaining a verified original spare of the MX110-VTD-L30 is a fundamental element of any responsible preventive maintenance program. Whether your facility operates in power generation, chemical processing, automotive testing, or precision manufacturing, the MX100 system’s reliability depends directly on the integrity of its input modules — and the MX110-VTD-L30 is one of the most operationally critical components in that chain.

Sourced directly from authorized supply channels, every MX110-VTD-L30 unit shipped by TOPNLMS is tested prior to dispatch and backed by a 12-month warranty. We understand that unplanned downtime in data acquisition systems can cascade into production losses, compliance failures, and delayed reporting cycles. Securing a verified original replacement module before failure occurs is the most cost-effective strategy available to maintenance engineers and procurement teams alike.

Critical Technical Specs

Preventive Maintenance Strategy for MX100 Data Acquisition Systems

A scheduled maintenance inspection of any MX100-based data acquisition cabinet should treat the MX110-VTD-L30 as a primary audit point. Thermocouple input modules are subject to cumulative thermal stress, connector oxidation, and signal drift over extended deployment cycles — particularly in high-cycle industrial environments such as furnace monitoring, turbine testing, or multi-zone process control. During a planned shutdown or annual calibration cycle, maintenance engineers should verify channel-by-channel signal integrity, inspect terminal block connections for corrosion or loose wiring, and confirm that reference junction compensation is functioning within specification.

When inspecting the MX110-VTD-L30, it is equally important to audit the broader MX100 system architecture. The MX110-V4D (4-channel universal input module) and MX110-VAD-M10 (10-channel voltage/current input module) are frequently installed alongside the VTD-L30 in mixed-signal acquisition cabinets; any degradation in one module type often correlates with stress on adjacent modules sharing the same mainframe bus. The MX100-P1 and MX100-P3 mainframe units themselves should be inspected for backplane connector wear and power rail stability during the same maintenance window.

Power integrity is a foundational concern in any MX100 deployment. The MX100 internal power supply module and any associated external 24 VDC DIN-rail power supply feeding the system should be load-tested and replaced on a proactive schedule — typically every 5–7 years in continuous-duty environments. A failing power supply is one of the most common root causes of intermittent channel errors and false thermocouple readings that are incorrectly attributed to the input module itself.

Signal wiring integrity is another critical maintenance dimension. Thermocouple extension cables and compensating cables connected to the MX110-VTD-L30 terminal blocks should be inspected for insulation degradation, shield continuity, and correct polarity. In environments with significant electromagnetic interference — such as motor drive cabinets or high-current switching panels — signal isolators or thermocouple signal conditioners installed upstream of the MX100 input module can dramatically extend measurement accuracy and module service life. Where analog signals from third-party sensors are routed into the MX100 system, signal isolation barriers and terminal block assemblies with integrated surge protection are recommended additions to the maintenance checklist.

For facilities managing legacy MX100 installations alongside newer YOKOGAWA data acquisition platforms such as the MW100 or GP10/GP20 paperless recorders, a cross-platform spare parts strategy is advisable. Maintaining verified original spares for both the MX110-VTD-L30 and its functional equivalents in adjacent system generations reduces the risk of extended lead times during emergency procurement — a scenario that becomes increasingly likely as older MX100 systems approach end-of-production status.

Strategic Replacement Solutions

The MX110-VTD-L30 is a direct plug-in replacement for any failed or degraded 30-channel thermocouple input module within the MX100 platform. Because the MX100 system uses a modular slot architecture, field replacement requires no rewiring of the mainframe — only the terminal block wiring to the replacement module must be reconnected, following the original channel assignment documentation. This design significantly reduces mean time to repair (MTTR) compared to legacy fixed-wiring data acquisition systems.

For facilities operating older MX100 systems where the original MX110-VTD-L30 has been discontinued from standard distribution channels, sourcing a verified original unit from a specialist industrial spare parts supplier is the most reliable path to maintaining system continuity without undertaking a full platform migration. A full migration to a newer data acquisition platform — while sometimes appropriate for greenfield projects — introduces significant re-engineering costs, re-validation requirements, and operator retraining burdens that are rarely justified when a single module replacement can restore full system functionality.

TOPNLMS maintains stock of the MX110-VTD-L30 and related MX100 series components to support exactly this scenario: rapid, verified, original-part replacement that keeps your existing system operational, your data acquisition validated, and your maintenance budget under control. All units are inspected and function-tested prior to shipment, with full traceability documentation available on request.

Support FAQ

Q1: Is the MX110-VTD-L30 supplied by TOPNLMS an original YOKOGAWA part or a compatible substitute?
All MX110-VTD-L30 units supplied by TOPNLMS are original YOKOGAWA manufactured components sourced through authorized industrial supply channels. We do not supply counterfeit, rebranded, or third-party compatible substitutes. Each unit is individually inspected and tested before dispatch.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, contact TOPNLMS at [email protected] with your order reference and a description of the fault. We will arrange inspection, repair, or replacement at no additional cost within the warranty period.

Q3: Can the MX110-VTD-L30 be installed in any MX100 mainframe slot, and is hot-swap supported?
The MX110-VTD-L30 is compatible with all standard module slots in the MX100-P1 and MX100-P3 mainframes. Hot-swap capability depends on the firmware version and system configuration of your specific MX100 installation. We recommend consulting your MX100 system documentation or contacting TOPNLMS for guidance specific to your mainframe revision before performing a live module swap in a production environment.

Q4: How should I verify compatibility before ordering, and what is the typical lead time?
Compatibility can be confirmed by matching your existing module’s model number (printed on the module label) with MX110-VTD-L30. If you are replacing a module from a different channel count or input type variant, contact us at [email protected] before ordering. Standard in-stock units are dispatched within 1–3 business days. For urgent requirements, expedited shipping options are available — please contact us directly to confirm availability and lead time.
