YOKOGAWA F3YD08-6A Ruggedized Output Module for Harsh Environments

Product Overview

YOKOGAWA F3YD08-6A Ruggedized Output Module for Harsh Environments

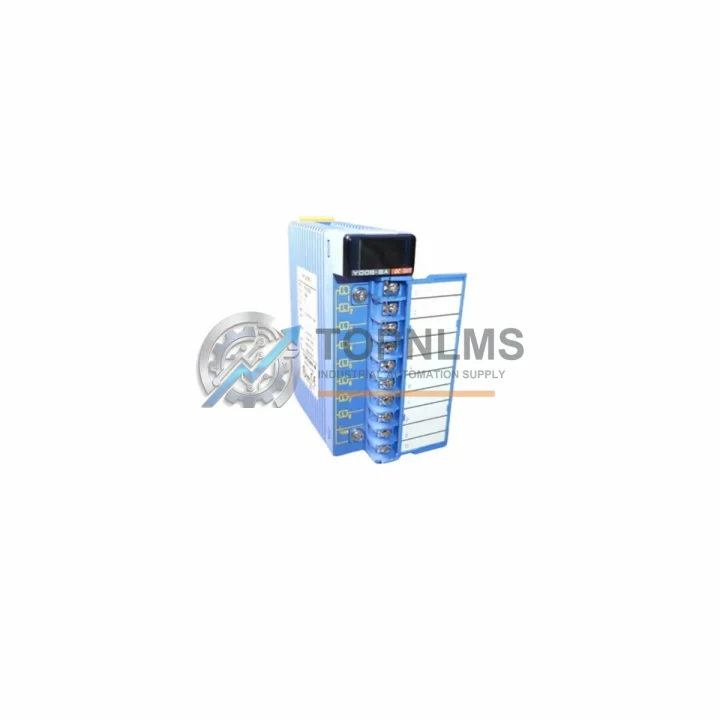

The YOKOGAWA F3YD08-6A is an 8-point transistor digital output module engineered for the STARDOM FCN/FCJ controller platform — one of YOKOGAWA’s most resilient distributed control architectures. Designed to operate reliably in the most demanding industrial environments, the F3YD08-6A delivers consistent, high-speed digital switching performance even under conditions of extreme temperature variation, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). For maintenance engineers and procurement specialists managing continuous production lines, hazardous-area installations, or aging control systems, this module represents a critical building block for sustained operational integrity.

Industrial facilities — from offshore oil platforms to inland chemical processing plants — depend on digital output modules like the F3YD08-6A to actuate field devices: solenoid valves, motor starters, indicator lamps, relay coils, and safety interlocks. Any degradation or failure in this signal chain can cascade into unplanned shutdowns, safety incidents, or costly production losses. Sourcing a verified original spare with a documented 12-month quality warranty is not merely a procurement decision — it is a risk management strategy.

Rugged Specifications Table

Comprehensive Protection Solutions

In harsh industrial environments, the F3YD08-6A does not operate in isolation. Its reliability is directly tied to the health of the surrounding control architecture. During scheduled maintenance or emergency replacement of this digital output module, experienced maintenance teams routinely inspect and, where necessary, replace a set of interdependent components to prevent secondary failures.

The STARDOM FCN-100 or FCN-500 controller base unit forms the backbone of the system; any instability in the CPU module — such as the YOKOGAWA F3SP71-4N or F3SP76-7S — can produce erratic output behavior that is often misdiagnosed as a module fault. Simultaneously, the power supply module (e.g., YOKOGAWA F3PU20-0S or F3PU10-0S) must deliver clean, stable 24 VDC to the I/O bus; voltage ripple or transient spikes are a leading cause of transistor output degradation in field conditions. Engineers should verify the power supply’s output voltage under full load before condemning an output module.

On the input side, the companion digital input module — such as the YOKOGAWA F3XD32-3H or F3XD16-3H — should be inspected for contact bounce or signal noise that may be misinterpreted by the controller as a command to cycle outputs excessively, accelerating wear on the F3YD08-6A’s transistor outputs. In environments with significant EMI — common in facilities with large variable frequency drives (VFDs), arc welding equipment, or high-voltage switchgear — the installation of signal isolators or surge protection terminal blocks on the field wiring side is strongly recommended to protect the module’s optical isolation barrier.

Communication integrity is equally important. The STARDOM FCN platform typically communicates via Ethernet-based protocols (Modbus TCP, OPC-UA, or FOUNDATION Fieldbus HSE). The network interface module and associated managed industrial Ethernet switches should be checked for firmware currency and port integrity. A degraded communication link can cause the controller to lose synchronization with the SCADA or DCS host, resulting in output modules holding last-state or defaulting to safe-state — behaviors that must be validated during commissioning of any replacement module.

Finally, the terminal block assemblies and field wiring connectors interfacing with the F3YD08-6A’s output terminals deserve careful inspection. Loose terminations, corroded contacts, or undersized conductors are frequent root causes of intermittent output faults in high-vibration environments such as compressor stations, mining conveyors, or steel rolling mills. Replacing the module without addressing wiring integrity will result in repeat failures.

Application in Critical Infrastructure

The YOKOGAWA F3YD08-6A finds its most demanding deployments in critical infrastructure sectors where control system reliability is non-negotiable.

In oil and gas upstream and midstream facilities — wellhead control panels, pipeline SCADA RTUs, and compressor station automation — the F3YD08-6A drives solenoid-operated shutdown valves and ESD (Emergency Shutdown) relay coils. The module’s optical isolation and transistor output architecture ensure that field-side faults do not propagate back into the controller backplane, a critical safety characteristic in SIL-rated applications.

In power generation and transmission substations, the module is used to actuate breaker trip/close coils, annunciator panels, and auxiliary relay circuits. Its wide operating temperature range and vibration compliance make it suitable for outdoor switchgear enclosures and GIS (Gas-Insulated Switchgear) control buildings.

In water and wastewater treatment plants, the F3YD08-6A controls pump motor starters, valve actuators, and chemical dosing systems. The high-humidity tolerance (up to 95% RH) is particularly valuable in wet-well pump stations and membrane filtration buildings where condensation is a persistent challenge.

In metallurgical and heavy manufacturing facilities — blast furnaces, rolling mills, and smelting operations — the module must withstand intense electromagnetic interference from large induction furnaces and DC drive systems. Its photocoupler isolation provides the necessary galvanic separation to maintain signal integrity in these electrically hostile environments.

In mining operations, including underground coal mines and open-pit mineral processing plants, the module’s vibration resistance and wide temperature tolerance support reliable operation on conveyor control panels, crusher automation systems, and ventilation fan controllers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it validated?
A: Every F3YD08-6A unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional testing including output switching verification, isolation resistance measurement, and power consumption check. A test report is available upon request. Warranty claims are processed via email with photographic evidence of the defect; replacement or refund is arranged within 5 business days of claim approval.

Q2: How do I verify compatibility with my existing STARDOM FCN system before installation?
A: The F3YD08-6A is compatible with STARDOM FCN-100, FCN-500, and FCJ controller bases. Compatibility is determined by the controller’s I/O bus specification and the slot assignment configured in YOKOGAWA’s FAST/TOOLS or Versatile Data Server (VDS) engineering software. Provide your controller model and firmware version to our technical team at [email protected] and we will confirm slot compatibility and any firmware prerequisites before shipment.

Q3: Can this module replace an older or discontinued YOKOGAWA digital output module?
A: Yes. The F3YD08-6A is a current-production module and serves as a direct replacement for earlier 8-point transistor output modules in the STARDOM FCN/FCJ I/O family. For cross-reference to legacy FA-M3 series output modules (e.g., F3YD08-2A or F3YD08-4A), our engineering team can advise on any wiring or configuration changes required to ensure a drop-in replacement without controller re-engineering.

Q4: What is the typical lead time, and do you support long-term supply agreements for maintenance contracts?
A: In-stock units ship within 1–3 business days from our Xiamen, China warehouse. For maintenance contractors and plant operators requiring guaranteed annual supply, TOPNLMS offers blanket purchase order arrangements with reserved inventory allocation. Contact [email protected] to discuss volume pricing, consignment stock options, and multi-year supply agreements tailored to your planned maintenance schedule.
