YOKOGAWA ET5*C Replacement Upgrade Solution for ET Series

Product Overview

YOKOGAWA ET5*C Replacement & Upgrade Solution for ET Series: Smooth Migration from Legacy Thermocouple Signal Conditioning Systems

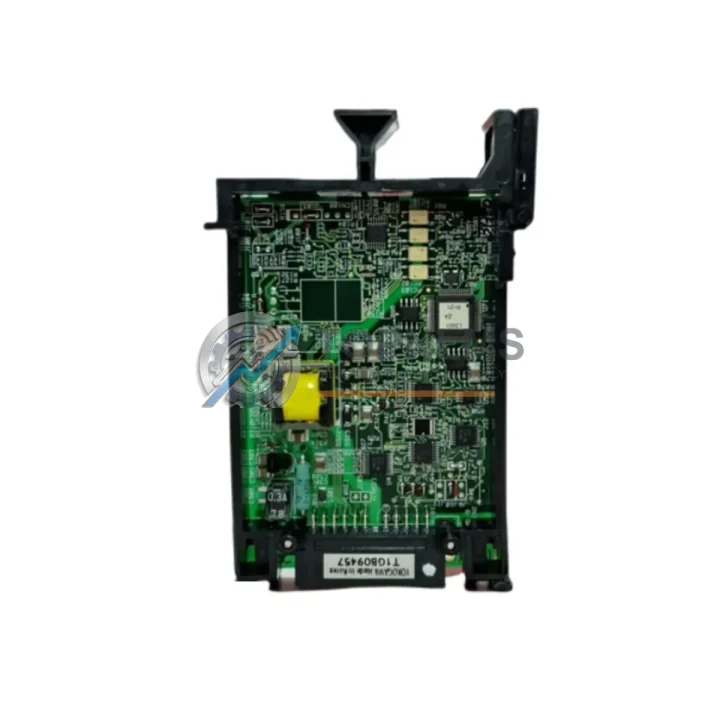

The YOKOGAWA ET5*C is a thermocouple input signal conditioner from the YOKOGAWA ET Series, designed for industrial process control environments where accurate temperature signal isolation, conversion, and transmission are critical. As legacy DCS and PLC architectures age out of vendor support cycles, facilities running older YOKOGAWA CENTUM CS, CENTUM VP, or third-party distributed control systems increasingly face the challenge of sourcing reliable, drop-in compatible replacements for discontinued or hard-to-find signal conditioning modules. The ET5*C addresses this need directly — offering a verified upgrade path that preserves existing wiring infrastructure, minimizes engineering rework, and reduces planned or unplanned downtime during retrofit projects.

For plants currently operating with aging signal conditioner racks populated by earlier-generation YOKOGAWA ET Series modules — including variants such as the ET1*C, ET2*C, or ET4*C — the ET5*C provides a functionally compatible replacement that maintains the same thermocouple input type support (Type K, J, T, E, R, S, B, and N), the same 4–20 mA analog output range, and the same DIN rail or panel-mount form factor. Field engineers performing like-for-like swaps will find that terminal block wiring assignments are consistent with prior ET Series generations, eliminating the need to re-label or re-route field cables during the changeover. This is particularly valuable in brownfield installations where cable trays are congested and re-wiring carries significant labor cost and safety risk.

In systems where the ET5*C interfaces with a YOKOGAWA STARDOM FCN/FCJ controller, a YOKOGAWA ProSafe-RS safety controller, or a third-party PLC such as a Siemens S7-300 or Allen-Bradley ControlLogix via analog input modules, the 4–20 mA output signal remains fully compatible without any changes to the receiving end’s I/O configuration or scaling parameters. Engineers migrating from a legacy YOKOGAWA EJA or EJX transmitter-based loop to a thermocouple-direct input architecture will find the ET5*C a natural fit for the signal conditioning layer, particularly when paired with YOKOGAWA YTA series temperature transmitters or standalone barrier modules for intrinsically safe zone applications.

Physical installation is straightforward. The ET5*C occupies a standard 22.5 mm DIN rail slot, compatible with the same mounting rails used across the broader YOKOGAWA ET Series lineup. In control cabinets where space is at a premium — particularly in compact marshalling panels or junction boxes serving remote I/O nodes — the slim profile of the ET5*C allows high-density channel configurations without requiring cabinet expansion. Power supply requirements align with standard 24 VDC instrument bus rails commonly found in YOKOGAWA and third-party control system architectures, meaning no additional power conditioning or dedicated PSU is required for the replacement unit.

For facilities managing a broader migration from a legacy YOKOGAWA CENTUM CS 3000 system to a CENTUM VP or CENTUM VP R6 platform, the ET5*C fits naturally into the signal conditioning layer of the new architecture. During phased migrations where the DCS backbone is being upgraded while field instrumentation remains in place, the ET5*C can serve as a bridge component — maintaining signal integrity from existing thermocouple field devices while the upstream I/O modules, such as YOKOGAWA AAI141 or AAI543 analog input cards, are being commissioned on the new controller nodes. This phased approach significantly reduces the risk window compared to a full cutover strategy.

Communication protocol compatibility is not a concern for the ET5*C, as it operates as a passive analog signal conditioner outputting a standard 4–20 mA loop signal. This makes it universally compatible with any PLC, DCS, or SCADA system capable of reading a standard analog input — including systems from Honeywell, Emerson DeltaV, ABB 800xA, and Rockwell Automation PlantPAx — without requiring any protocol gateway, signal converter, or firmware update on the receiving controller. For applications requiring HART communication overlay on the 4–20 mA loop, a HART multiplexer or HART-capable analog input module on the controller side can be used without modification to the ET5*C itself.

Procurement teams evaluating the ET5*C as a replacement or safety stock item will find that TOPNLMS maintains verified inventory with pre-shipment functional testing on every unit. Each ET5*C is inspected against YOKOGAWA factory specifications before dispatch, with full traceability documentation available on request. Standard lead time from our Xiamen warehouse is 3–7 business days for international express shipments, with DHL, FedEx, and UPS options available depending on destination country and urgency. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Replacement or refund is processed within 5 business days of confirmed fault diagnosis, with no requirement to return the unit before a replacement is dispatched in urgent production scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete ET5*C migration typically involves more than a single module swap. In practice, field engineers coordinating a signal conditioning rack upgrade will also assess the condition of adjacent components. Terminal blocks and wiring accessories from the YOKOGAWA ET Series accessory range — including plug-in screw terminal connectors and DIN rail end brackets — are commonly replaced at the same time to ensure long-term reliability. Where the existing marshalling panel also houses YOKOGAWA MTL or P+F Pepperl+Fuchs zener barriers for intrinsically safe thermocouple circuits, these are evaluated for compatibility with the ET5*C’s input impedance characteristics.

In systems where the ET5*C feeds into a YOKOGAWA AAI141 8-channel analog input module or an AAI543 16-channel module on a CENTUM VP FCS node, the analog input card configuration in CENTUM VP Engineering Environment (CEVEE) requires no changes — the 4–20 mA signal range and tag scaling remain identical. For older CENTUM CS 3000 systems using ACM12 or ACM22 analog I/O modules, the same applies. Engineers also frequently pair the ET5*C with YOKOGAWA YTA110 or YTA310 temperature transmitters in hybrid loop architectures where some field points use direct thermocouple input and others use transmitter-based 4–20 mA loops, allowing a unified signal conditioning strategy across the marshalling panel. HART communicators such as the Emerson 475 Field Communicator are used during commissioning to verify loop integrity without requiring the ET5*C to support HART natively.

Retrofit Guidance FAQ

Q: Can I replace an ET4*C with an ET5*C without re-wiring?
A: Yes. The ET5*C uses the same terminal block layout as prior ET Series generations. Field wiring connections for thermocouple positive, negative, and shield are identical. No re-labeling or cable re-routing is required.

Q: Will the ET5*C work with my existing DCS analog input cards?
A: Yes. The ET5*C outputs a standard 4–20 mA signal compatible with any analog input module regardless of DCS or PLC brand. No configuration changes are needed on the receiving I/O card.

Q: Does the ET5*C require any programming or configuration after installation?
A: The ET5*C is configured via front-panel DIP switches or rotary selectors for thermocouple type and output range. No software programming tool or communication interface is required for basic commissioning.

Q: Is the physical footprint identical to the legacy ET Series modules?
A: Yes. The ET5*C occupies a 22.5 mm DIN rail slot — the same as all ET Series signal conditioners. No cabinet modification, additional mounting hardware, or spacer is required.

Q: What if I need to replace multiple channels simultaneously?
A: TOPNLMS can supply multi-unit orders with matched batch testing. Contact us for volume pricing and coordinated shipment scheduling to support planned maintenance windows.

Warranty Assurance

Every YOKOGAWA ET5*C supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification against YOKOGAWA factory specifications, including input accuracy testing across the supported thermocouple types and output linearity verification across the 4–20 mA range. Full test records are available on request for quality-critical procurement processes.

In the event of a confirmed functional failure within the warranty period, TOPNLMS will dispatch a replacement unit within 5 business days of fault confirmation — without requiring the original unit to be returned first in urgent production scenarios. For non-urgent cases, a standard RMA process applies with full documentation support. Our after-sales team is reachable via email and phone for technical queries, commissioning support, and warranty claims throughout the coverage period.

Standard shipping from our Xiamen warehouse covers DHL Express, FedEx International Priority, and UPS Worldwide Express, with typical transit times of 3–5 business days to most destinations in Asia, Europe, and the Americas. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment.
