YOKOGAWA EJA110A Replacement/Upgrade for EJA Series

Product Overview

YOKOGAWA EJA110A Replacement/Upgrade Solution for EJA Series: Smooth Transition from Legacy Differential Pressure Systems

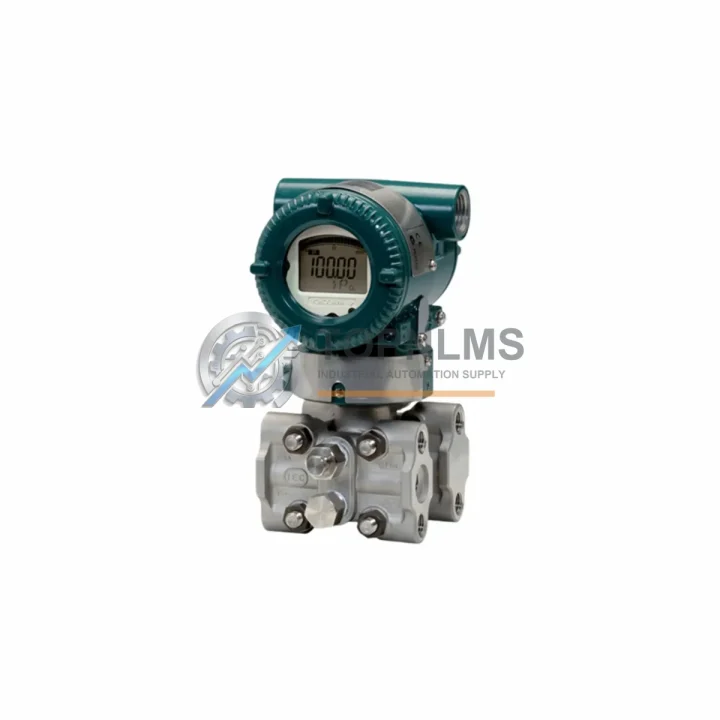

The YOKOGAWA EJA110A is a high-performance differential pressure transmitter from YOKOGAWA’s renowned EJA Series, widely deployed across oil & gas, chemical processing, power generation, and water treatment facilities worldwide. As legacy installations age and original EJA110A units approach end-of-service life, plant engineers and procurement teams face the critical challenge of sourcing verified replacement units that maintain full compatibility with existing process connections, signal wiring, and DCS/PLC communication architectures — without triggering costly plant shutdowns or extended commissioning cycles.

TOPNLMS maintains ready-to-ship inventory of the EJA110A, fully tested and verified against YOKOGAWA factory specifications. Each unit ships with a 12-month warranty and full traceability documentation, enabling your maintenance team to execute a direct swap with minimal downtime exposure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EJA110A field replacement rarely involves the transmitter alone. In practice, plant engineers executing a differential pressure loop upgrade or legacy instrument swap will also evaluate the surrounding measurement infrastructure to ensure the entire signal chain performs reliably after the changeover.

For installations where the existing 3-valve or 5-valve manifold has accumulated corrosion or seat wear, replacing the manifold assembly alongside the EJA110A eliminates a common source of zero-shift errors after recommissioning. YOKOGAWA’s EJX series manifolds and third-party equivalents with matching flange patterns are direct fits to the EJA110A’s high- and low-pressure process connections.

Where the plant DCS is a YOKOGAWA CENTUM VP or CENTUM CS 3000 system, the EJA110A integrates natively via HART or BRAIN protocol through the existing field bus wiring. No changes to the CENTUM VP FCS (Field Control Station) I/O cards or terminal boards are required, provided the existing AI (Analog Input) module — such as the AAI141 or AAI543 — is already configured for 4–20 mA HART input. This makes the EJA110A an ideal drop-in for plants running CENTUM VP R6 or later without requiring a DCS software revision.

In installations where the original EJA110A was configured and tagged using YOKOGAWA’s BRAIN terminal BT200, the same handheld communicator remains fully compatible with the replacement unit. Alternatively, sites that have migrated to YOKOGAWA FieldMate R3 or later can perform zero/span calibration, range configuration, and tag assignment digitally over HART without opening the terminal compartment. For sites using third-party HART communicators such as the Emerson 475 Field Communicator, the EJA110A’s HART DD (Device Description) file is publicly available and supports full parameter access.

When the replacement scope extends to the entire measurement loop — including the impulse lines, root valves, and secondary containment — engineers should also assess the condition of the associated ProSafe-RS safety instrumented system I/O modules if the loop is part of a SIL-rated interlock. The EJA110A carries SIL 2 certification (IEC 61508), making it suitable for direct reinstatement into existing safety loops without requiring a full SIL re-assessment, provided the loop’s PFD (Probability of Failure on Demand) calculation is updated to reflect the new unit’s failure rate data.

For plants upgrading from older EJA110 (non-A suffix) or EJA115A units to the EJA110A, the primary wiring change involves confirming the terminal block polarity and shield grounding arrangement, as the EJA110A’s terminal compartment layout is consistent across the EJA Series. The existing junction box, cable gland, and conduit entry are typically reusable without modification. Signal isolators or YOKOGAWA MTL series Zener barriers installed in the loop for intrinsic safety compliance remain compatible with the EJA110A’s input impedance and loop current characteristics.

Where the plant is executing a broader instrument modernization program — migrating from pneumatic or early electronic transmitters to digital HART devices — the EJA110A serves as a natural anchor point for the differential pressure measurement tier. Pairing the EJA110A with a YOKOGAWA EJX910A multivariable transmitter for flow compensation, or with an EJA530A absolute pressure transmitter for static pressure reference, enables a complete pressure measurement upgrade within the same EJA/EJX platform, minimizing spare parts complexity and technician retraining requirements.

Retrofit Guidance FAQ

Q: Can I reuse the existing 2-wire loop wiring when replacing a failed EJA110A?
A: Yes. The EJA110A is a loop-powered 4–20 mA device operating on 10.5–42 V DC. Provided the existing cable is in good condition and the loop resistance is within the HART communication window (typically 230–600 Ω for HART), no rewiring is required. Verify the terminal polarity (+ and –) before energizing.

Q: Will the replacement EJA110A retain the original tag name and range configuration?
A: No. The new unit ships with factory default configuration. Tag name, engineering unit, range (LRV/URV), damping, and alarm setpoints must be re-entered using a HART communicator (BT200, Emerson 475, or FieldMate). If the original configuration file was saved in FieldMate or a plant asset management system, it can be downloaded directly to the replacement unit.

Q: Is the EJA110A compatible with YOKOGAWA CENTUM VP and ProSafe-RS DCS systems?
A: Yes. The EJA110A communicates via HART Rev. 5 or BRAIN protocol, both of which are natively supported by YOKOGAWA CENTUM VP FCS AI modules and ProSafe-RS SIL I/O cards. No DCS software changes are required for a like-for-like replacement.

Q: What is the physical footprint of the EJA110A compared to older EJA110 units?
A: The EJA110A maintains the same external dimensions and process connection geometry as the original EJA110 series. Existing pipe mounting brackets, 2-inch pipe clamps, and impulse tubing connections are directly reusable. The electronics housing and conduit entry thread size are unchanged.

Q: Can the EJA110A be used in SIL 2 safety loops?
A: Yes. The EJA110A is IEC 61508 SIL 2 certified. When reinstating the unit into an existing safety loop, update the SIL verification calculation with the EJA110A’s published PFD data from YOKOGAWA’s functional safety manual. No physical loop modification is required.

Q: How do I verify the correct suffix code before ordering?
A: The full model code is printed on the nameplate of the existing unit. Key suffix positions define the measurement capsule range, process connection type, output protocol (HART/BRAIN), housing material, and hazardous area certification. Provide the complete nameplate model string to TOPNLMS for exact-match sourcing.

Warranty Assurance

Every YOKOGAWA EJA110A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point pre-delivery inspection including visual inspection, terminal integrity check, loop current output verification, and HART communication confirmation. Units are packed in anti-static, shock-resistant packaging with desiccant to protect the electronics housing and process wetted parts during international transit.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of claim confirmation, subject to fault verification. Our after-sales team is reachable via email and phone for technical support during installation and commissioning. Procurement documentation including packing list, commercial invoice, and test report is provided with every shipment to support your plant’s incoming inspection and asset registration procedures.

For urgent replacement requirements — including unplanned shutdowns and emergency maintenance windows — TOPNLMS offers priority dispatch from Xiamen warehouse stock. Contact our sales team directly to confirm real-time availability and lead time before raising a purchase order.
