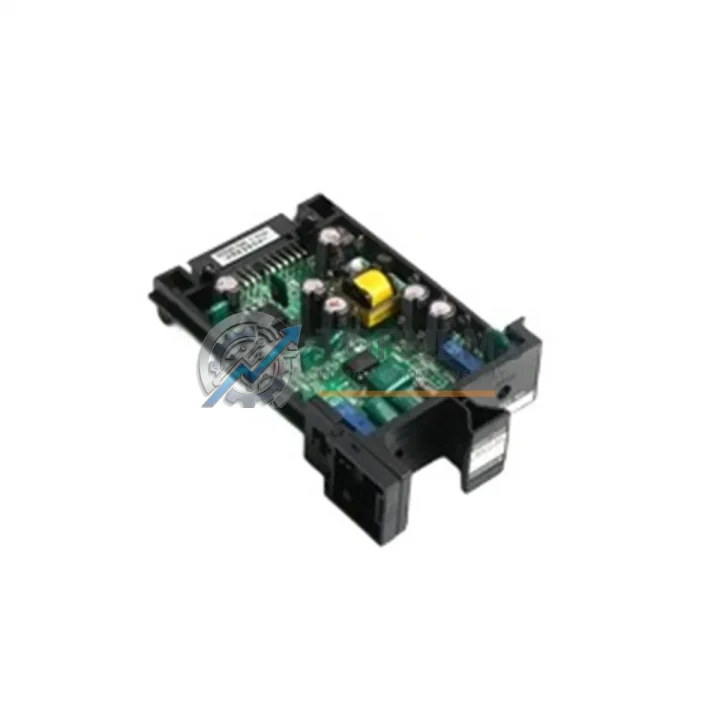

YOKOGAWA EA1*A ASE9740A-07 Original Spare EJA Compatible

Product Overview

YOKOGAWA EA1*A ASE9740A-07 Original Spare – System Stability & Industrial Maintenance Value

The YOKOGAWA EA1*A ASE9740A-07 is an original signal conditioner transmitter module engineered for precision signal processing in demanding industrial environments. Designed as a core component within YOKOGAWA’s EJA and YTSC transmitter series, this module plays a critical role in maintaining measurement accuracy, loop integrity, and process control stability across refineries, chemical plants, power generation facilities, and discrete manufacturing lines.

When a signal conditioner fails or drifts out of calibration tolerance, the downstream impact on process control can be immediate and severe — triggering false alarms, loop instability, or unplanned shutdowns. Stocking the EA1*A ASE9740A-07 as a verified original spare ensures your maintenance team can execute rapid like-for-like replacement without reconfiguration delays, preserving the integrity of your existing YOKOGAWA transmitter infrastructure.

Critical Technical Specs

Preventive Maintenance Strategy

Signal conditioner modules like the EA1*A ASE9740A-07 rarely fail in isolation. In most field scenarios, degradation of this module is accompanied by — or caused by — issues in adjacent components within the same measurement loop or control cabinet. A disciplined preventive maintenance approach should treat the transmitter assembly as a system, not a single component.

During scheduled shutdowns or loop calibration checks, maintenance engineers should simultaneously inspect the EJA110A differential pressure transmitter body for diaphragm seal integrity and zero-point drift. The YOKOGAWA YTA110 or YTA310 temperature transmitter modules sharing the same marshalling cabinet should be verified for terminal corrosion and signal accuracy. If the plant runs a CENTUM VP or ProSafe-RS DCS architecture, the associated YOKOGAWA ADV151 or ADV161 analog input modules should be checked for channel-level signal fidelity to confirm the conditioner output is being received correctly at the controller level.

Field wiring between the transmitter and the DCS I/O card is a common failure point. Inspect shielded twisted-pair signal cables (typically KPEV-S or equivalent) for insulation breakdown, especially in high-temperature or chemically aggressive environments. Terminal blocks and DIN-rail mounted barriers — such as YOKOGAWA’s MTL or P+F Zener barriers — should be tested for continuity and isolation resistance. A degraded barrier can introduce noise or offset errors that mimic a failing signal conditioner, leading to misdiagnosis and unnecessary module replacement.

For plants operating legacy YOKOGAWA STARDOM or EJX-series installations, the EJX110A or EJX430A transmitter amplifier boards are functionally adjacent to the EA1*A ASE9740A-07 and should be included in the same inspection cycle. Additionally, YOKOGAWA F3SP22 or F3SP28 sequence CPU modules in FA-M3 PLC racks that receive signals from these transmitters should be verified for I/O scan integrity during the same maintenance window.

Fuse modules and 24 VDC power supply units feeding the transmitter loop — such as YOKOGAWA’s PW481 or equivalent DIN-rail PSUs — are often overlooked until a loop goes dead. Replacing aging capacitors or the entire PSU module proactively is far less costly than an unplanned process shutdown. Rounding out the inspection, HART communicator compatibility should be verified if the site uses handheld configurators (e.g., Emerson 475 or 375) for remote calibration of the EJA transmitter connected to this signal conditioner.

Strategic Replacement Solutions

The EA1*A ASE9740A-07 is a direct original replacement for aging or failed signal conditioner assemblies within the EJA and YTSC transmitter families. Unlike third-party aftermarket alternatives, this original YOKOGAWA module maintains full factory calibration traceability, ensuring that loop accuracy specifications — typically ±0.1% of span or better — are preserved without field recalibration after installation.

For plants managing aging YOKOGAWA infrastructure beyond its nominal 10–15 year service life, stocking this module as a critical spare eliminates the risk of extended lead times from the OEM. Original spare availability is particularly valuable during unplanned outages, where every hour of downtime carries significant production cost. The EA1*A ASE9740A-07 can be installed by a qualified instrument technician in under 30 minutes using standard hand tools, with no firmware update or loop reconfiguration required when replacing a like-for-like unit.

For facilities transitioning from older EJA-A series to EJX-series transmitters, this module also serves as a bridge component, maintaining measurement continuity in hybrid installations where full system upgrades are deferred due to capital budget constraints. This makes it a strategically important SKU for multi-year asset lifecycle planning and spare parts rationalization programs.

Support FAQ

Q1: Is the EA1*A ASE9740A-07 compatible with all EJA-series transmitters?
The EA1*A ASE9740A-07 is designed for use within the YOKOGAWA EJA and YTSC signal conditioner transmitter families, including EJA110A, EJA120A, EJA130A, EJA210A, EJA310A, and EJA430A models. Compatibility with specific sub-variants should be verified against the transmitter’s nameplate model code and YOKOGAWA’s technical documentation for your installation.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes functional verification prior to dispatch, including power-on testing and output signal validation. Units are shipped in anti-static protective packaging with inspection documentation. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Q3: How should this spare be stored to maximize shelf life?
Store in a dry, temperature-controlled environment between –20°C and +40°C, away from direct sunlight and electromagnetic interference sources. Anti-static packaging should remain intact until installation. Recommended maximum storage duration before installation is 24 months; inspect for any physical damage or oxidation on connector pins before use.

Q4: Can this module be installed without recalibrating the transmitter loop?
In a like-for-like replacement scenario (same model, same configuration), the EA1*A ASE9740A-07 can typically be installed without full loop recalibration, as the factory calibration parameters are preserved. However, best practice recommends performing a zero and span check after installation to confirm loop accuracy within your site’s acceptance criteria, particularly for safety-critical or custody-transfer measurement points.
