Yaskawa XRC-CPS-150F Original Industrial Spare XRC Compatible

Product Overview

Yaskawa XRC-CPS-150F Original Industrial Spare XRC Compatible: System Stability and Industrial Spare Parts Maintenance Value

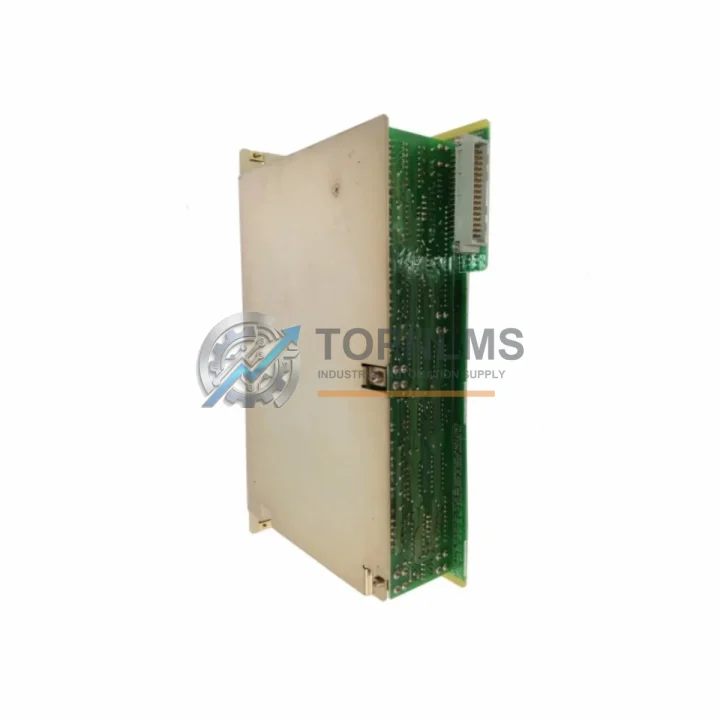

The Yaskawa XRC-CPS-150F is an original power supply unit (PSU) designed for the Motoman XRC series robot controller — one of the most widely deployed industrial robot control platforms in automotive, electronics, and general manufacturing environments worldwide. As a critical internal component of the XRC controller cabinet, the CPS-150F regulates and distributes DC power to the controller’s CPU board, servo amplifier interface, and I/O subsystems. When this unit degrades or fails, the entire robot cell goes offline, making rapid access to a verified replacement essential for minimizing unplanned downtime.

At TOPNLMS, we stock the XRC-CPS-150F as part of our commitment to supporting legacy Yaskawa Motoman systems that remain in active production service. Each unit is sourced from authorized supply channels, inspected upon receipt, and tested prior to shipment to ensure it meets original Yaskawa electrical specifications. A 12-month warranty is included with every order.

Critical Technical Specs

Preventive Maintenance Strategy for Motoman XRC Robot Systems

A power supply failure in the XRC controller is rarely an isolated event. In most field cases, PSU degradation is accompanied by voltage ripple on the DC bus, intermittent CPU resets, or erratic servo behavior — symptoms that often point to broader stress on the controller’s internal power distribution chain. A disciplined preventive maintenance program for XRC-based robot cells should treat the CPS-150F replacement as part of a coordinated inspection, not a standalone swap.

When replacing the XRC-CPS-150F, maintenance engineers should simultaneously inspect the XRC controller’s CPU board (JANCD-XCP01) for capacitor bulging or corrosion on the power input section. The servo amplifier unit (CACR-SR series) draws regulated DC from the same PSU rail and should be checked for abnormal heat signatures or fault history logs. If the robot has been in service for more than five years, the battery backup module for program memory retention is also a high-priority replacement item — a failed battery combined with a PSU fault can result in complete loss of teach pendant programs.

The XRC I/O board (JANCD-XIO01 or equivalent) interfaces directly with the PSU’s 24VDC output. During a PSU replacement, verify that all I/O terminal connections are secure and that the I/O relay modules in the control cabinet show no signs of contact wear or coil resistance drift. Relay modules in high-cycle applications — particularly those controlling gripper solenoids or safety interlocks — should be replaced on a scheduled basis regardless of apparent condition.

The teach pendant cable assembly and its connector at the controller bulkhead are frequently overlooked during PSU-focused maintenance visits. A damaged cable can introduce ground loops that stress the PSU’s output regulation. Similarly, the emergency stop circuit board and its associated wiring harness should be inspected for insulation degradation, particularly in environments with high ambient temperature or chemical exposure.

For facilities managing multiple XRC-based robot cells, it is operationally sound to maintain a minimum stock of one XRC-CPS-150F per three to five robots, alongside a spare JANCD-XCP01 CPU board and a set of fuse modules rated for the XRC cabinet’s internal protection circuits. This inventory posture reduces mean time to repair (MTTR) from days to hours when an unplanned failure occurs during a production shift.

Facilities running mixed fleets that include both XRC and later-generation NX100 or DX100 Motoman controllers should maintain separate spare parts inventories, as PSU form factors and electrical specifications differ significantly between generations. Cross-referencing part numbers before procurement is essential to avoid installation errors.

Strategic Replacement Solutions

The Motoman XRC controller was introduced in the late 1990s and remained in production through the mid-2000s. Many XRC-based robot cells are now operating well beyond their original design service life, supported by skilled maintenance teams who understand the value of keeping proven, reliable automation assets running rather than undertaking costly full-system replacements.

The XRC-CPS-150F is a direct OEM-equivalent replacement that requires no firmware modification, no reconfiguration of the controller’s parameter files, and no changes to the robot’s calibration data. Swap-in time for a trained technician is typically under two hours, including cabinet de-energization, PSU removal, connector transfer, and functional verification. This makes it one of the highest-value spare parts available for XRC system life extension.

For facilities considering a phased modernization strategy, maintaining a stock of XRC-CPS-150F units provides a cost-effective bridge: robots can continue operating at full capacity while capital budgets are allocated for eventual controller upgrades to the YRC1000 or YRC1000micro platform. This approach avoids forced emergency replacements driven by parts unavailability and allows maintenance schedules to align with planned production downtime windows.

TOPNLMS ships the XRC-CPS-150F with full documentation support, including installation reference notes and compatibility verification. Orders are processed within 1–2 business days, with international express shipping available to minimize lead time for urgent maintenance requirements.

Support FAQ

Q1: How do I confirm the XRC-CPS-150F is compatible with my specific XRC controller cabinet revision?
Check the nameplate on your XRC controller cabinet for the model suffix and manufacturing date code. The CPS-150F is compatible with standard XRC cabinets. If your cabinet has been modified or uses a non-standard power input configuration, contact us at [email protected] with your cabinet nameplate details before ordering.

Q2: What does the 12-month warranty cover?
The warranty covers electrical and functional defects under normal operating conditions for 12 months from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return shipping coordination provided by TOPNLMS.

Q3: Is the unit tested before shipment?
Yes. Every XRC-CPS-150F unit undergoes electrical output verification prior to shipment. DC rail voltages are measured against Yaskawa’s original specification tolerances. A test record is available upon request.

Q4: What is the recommended inventory strategy for facilities with multiple XRC robots?
We recommend maintaining at least one XRC-CPS-150F in on-site spare parts stock for every three to five XRC robots in your fleet. For facilities with 24/7 production schedules or long lead times from local distributors, a two-unit buffer stock is advisable. Bulk procurement pricing is available — contact [email protected] for a quote.
