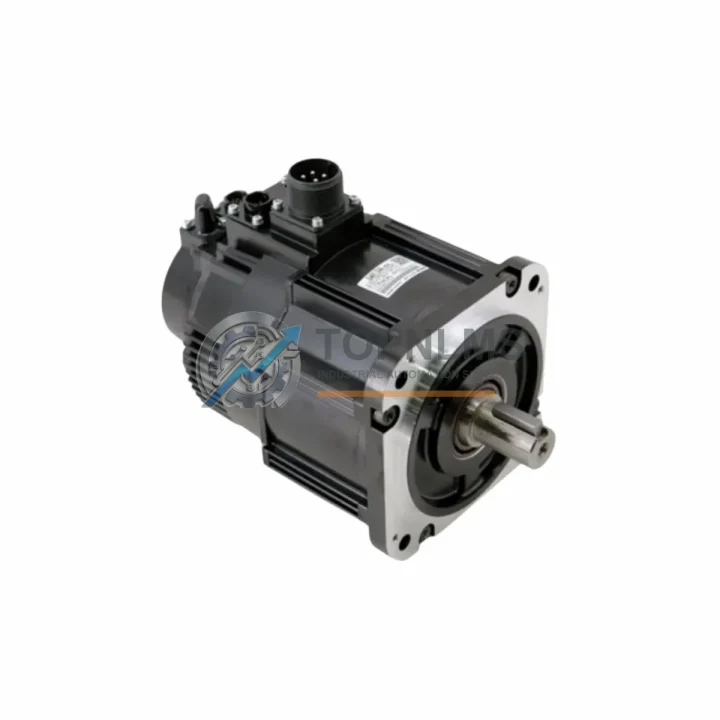

Yaskawa UTSAE-B17CLE SGMRS-06A2B-YR21 Original Industrial Spare SGMRS Compatible

Product Overview

Yaskawa UTSAE-B17CLE SGMRS-06A2B-YR21 Original Industrial Spare SGMRS Compatible: System Stability and Industrial Spare Parts Maintenance Value

In high-demand manufacturing environments, servo drive systems are the backbone of precision motion control. The Yaskawa UTSAE-B17CLE / SGMRS-06A2B-YR21 is a large-capacity AC servo motor from Yaskawa’s SGMRS series, equipped with a multi-turn absolute encoder for accurate position feedback without homing cycles. Sourced as an original Yaskawa spare, this unit is engineered to deliver the same performance characteristics as the factory-installed component — making it the preferred choice for maintenance engineers managing servo axis replacements in CNC machining centers, press lines, injection molding machines, and heavy-duty automated assembly systems.

When a servo motor fails on a production line, every minute of downtime translates directly into lost output and increased labor cost. Having a verified original replacement unit — pre-tested, properly packaged, and ready to install — is the single most effective way to compress mean time to repair (MTTR). The SGMRS-06A2B-YR21 is rated for high-torque, low-speed applications and is designed to integrate seamlessly with Yaskawa SGDV and SGDM series servo drives, preserving the original system’s tuning parameters and communication protocols.

For facilities operating legacy Yaskawa servo systems, sourcing a genuine UTSAE-B17CLE encoder assembly or a complete SGMRS-06A2B-YR21 motor unit from a reliable industrial spare parts supplier is a critical risk mitigation strategy. Counterfeit or incompatible replacements can introduce encoder feedback errors, axis drift, or drive fault codes that are difficult to diagnose and may cause secondary damage to the servo amplifier or mechanical load.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo motor replacement is rarely an isolated event. When the SGMRS-06A2B-YR21 is removed from service — whether due to encoder failure, winding insulation breakdown, bearing wear, or physical damage — a thorough inspection of the surrounding servo system components is essential to prevent repeat failures and ensure the replacement unit operates within specification from day one.

Begin with the encoder feedback cable (JZSP-CMP series) connecting the UTSAE-B17CLE encoder to the servo drive. Encoder cables are subject to continuous flexing in robotic and gantry applications and are a leading cause of intermittent absolute position loss alarms. Replace the cable if any abrasion, kinking, or connector corrosion is observed. At the same time, inspect the servo drive (SGDV-470A or equivalent SGDV series amplifier) for capacitor bulging, cooling fan degradation, or fault history logs that may indicate the drive contributed to the motor failure.

Check the regenerative resistor unit connected to the servo drive — in high-inertia applications such as press or winding machines, an undersized or degraded regenerative resistor can cause overvoltage faults that stress motor windings. Verify the DC bus capacitors in the servo drive cabinet and inspect the power supply module feeding the servo system for output voltage stability under load.

For multi-axis systems, inspect the servo relay module or contactor in the main circuit, as contact wear can introduce voltage drops that affect torque linearity. Review the I/O module handling servo enable, alarm reset, and positioning complete signals — a faulty digital output channel can cause nuisance faults that are misdiagnosed as motor problems. If the system uses a Yaskawa MP series machine controller or a third-party PLC for motion command generation, verify that the pulse output or MECHATROLINK-II/III communication is functioning correctly before commissioning the replacement motor.

Finally, inspect the terminal block and wiring duct inside the control cabinet for loose connections, heat discoloration, or insulation cracking — particularly on the U/V/W power leads to the motor. A loose power terminal is a common root cause of intermittent motor overload faults. Completing this full-system inspection before installing the SGMRS-06A2B-YR21 replacement ensures the new unit is not immediately exposed to the same fault conditions that caused the original failure.

Strategic Replacement Solutions

The Yaskawa SGMRS series was designed for large-capacity servo applications where high torque density and absolute position retention are non-negotiable. As these systems age, OEM support for original motor units becomes increasingly constrained, and lead times for factory-new units can extend to 12–20 weeks through standard distribution channels. Maintaining a verified original spare — such as the UTSAE-B17CLE / SGMRS-06A2B-YR21 — in your on-site or regional warehouse eliminates this lead time risk entirely.

For facilities managing multiple Yaskawa servo axes, a strategic approach is to stock one replacement unit per critical axis tier. The SGMRS-06A2B-YR21 is directly interchangeable with other SGMRS-06A2B variants (differing only in shaft key, brake, or IP option suffixes), which increases the effective coverage of a single spare unit across multiple machine axes. This cross-compatibility reduces the total number of spare SKUs required while maintaining full coverage for the most common failure modes.

When replacing an SGMRS motor in an older system originally commissioned with SGDM drives, verify that the absolute encoder battery backup circuit is functional before powering up the replacement unit. A depleted encoder battery will trigger an absolute encoder error on first power-up, which is often misdiagnosed as a defective replacement motor. Replacing the encoder battery (ER6V or equivalent 3.6V lithium cell) as part of the motor swap procedure eliminates this risk and is considered best practice for any SGMRS series installation.

All units supplied by TOPNLMS are tested for electrical continuity, insulation resistance (IR test at 500V DC), and encoder communication integrity prior to shipment. Each unit ships with a test report and is packaged in anti-static, moisture-barrier packaging suitable for long-term storage or immediate installation.

Support FAQ

Q1: Is the SGMRS-06A2B-YR21 compatible with my existing SGDV series servo drive without parameter changes?
A: In most cases, yes. The SGMRS-06A2B-YR21 uses the standard UTSAE-B17CLE absolute encoder interface, which is natively supported by SGDV series drives. However, if the original motor was a different frame size or power rating, you should verify the motor code (Pn000.1 or equivalent) in the drive parameters matches the replacement unit. TOPNLMS can provide the motor code for this specific model upon request.

Q2: What is the shelf life of this spare part, and how should it be stored?
A: Yaskawa servo motors have a recommended storage life of 3–5 years when stored in a dry, temperature-controlled environment (5–40°C, <85% RH, non-condensing). The absolute encoder battery should be replaced if the unit has been in storage for more than 2 years before installation. TOPNLMS ships all units in sealed moisture-barrier packaging with desiccant to maximize shelf life.

Q3: How do I verify the unit is genuine before installation?
A: Genuine Yaskawa SGMRS motors carry a factory nameplate with the full model number, serial number, and manufacturing date code. The encoder connector and cable entry points will have Yaskawa-branded seals. TOPNLMS provides a pre-shipment test report with insulation resistance values and encoder communication verification for each unit. If you require additional traceability documentation, contact us before placing your order.

Q4: What does the 12-month warranty cover, and what is the claims process?
