YASKAWA SGM-02U3B4L Original Industrial Spare Sigma Compatible

Product Overview

YASKAWA SGM-02U3B4L Original Industrial Spare – Sigma Series System Stability

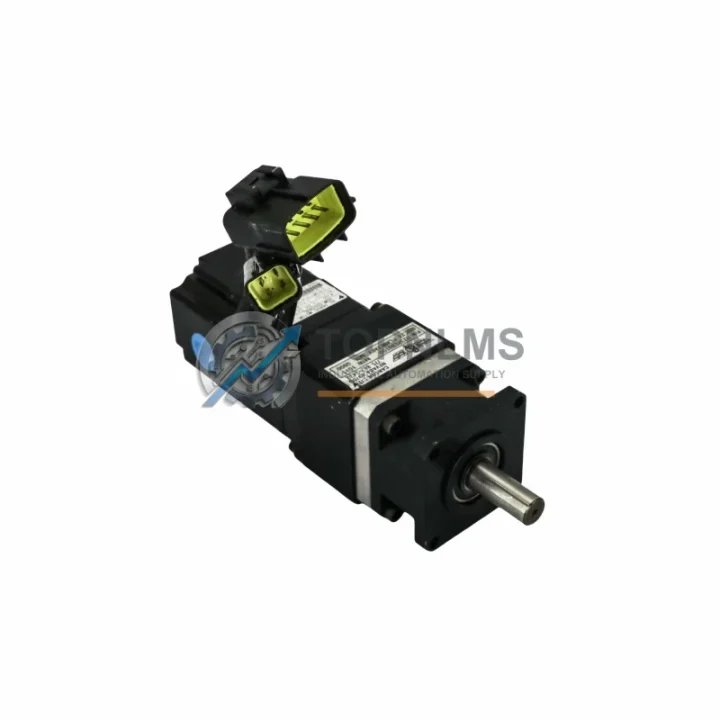

The YASKAWA SGM-02U3B4L is a 200W AC servo motor from the industry-proven Sigma Series, engineered for precision motion control in demanding industrial automation environments. As an original spare part, it delivers the exact electrical and mechanical characteristics required for drop-in replacement without reconfiguration of your existing servo drive system. Whether you are managing a scheduled shutdown, responding to an unplanned motor failure, or building a strategic spare parts inventory, the SGM-02U3B4L is a mission-critical component that directly supports production continuity and system uptime.

Maintaining a verified original spare on the shelf eliminates the most costly phase of any servo motor failure: the sourcing delay. Industrial facilities running YASKAWA Sigma Series servo systems — including packaging lines, CNC machining centers, semiconductor handling equipment, and robotic assembly cells — depend on rapid motor replacement to minimize mean time to repair (MTTR). The SGM-02U3B4L ships fully tested, with each unit verified for rated torque output, encoder signal integrity, and insulation resistance before dispatch.

Critical Technical Specs

Preventive Maintenance Strategy

A servo motor replacement rarely occurs in isolation. When the SGM-02U3B4L is flagged for replacement during a scheduled maintenance window or an emergency shutdown, experienced maintenance engineers use the opportunity to inspect and refresh the entire servo axis and surrounding control cabinet components. This approach reduces the probability of a secondary failure shortly after the primary repair — a pattern that accounts for a significant share of repeat downtime events in servo-driven machinery.

During the same maintenance window, it is advisable to inspect the SGDH-02AE servo amplifier (the matched drive unit for this motor) for capacitor aging, cooling fan condition, and fault history logs. The encoder cable assembly (YASKAWA JZSP-CMP00 series) should be checked for connector corrosion, shield continuity, and bend-radius fatigue — encoder cable degradation is a leading cause of intermittent position feedback errors that are often misdiagnosed as motor faults. Similarly, the power cable connecting the amplifier to the motor should be inspected for insulation cracking near the motor connector.

At the control cabinet level, the 24VDC control power supply module feeding the servo amplifier’s logic circuit should be load-tested; an aging PSU with marginal output voltage is a common root cause of unexplained servo alarm codes. The regenerative resistor unit (if externally mounted) should be checked for thermal discoloration and resistance drift. For multi-axis systems, the SGDH series servo amplifier rack and its shared DC bus capacitor bank warrant inspection when any single axis motor is replaced.

If the machine uses a YASKAWA MP2000 or CP9200SH motion controller as the upper-level command source, verify that the axis parameter file still matches the replacement motor’s encoder resolution and torque constant — parameter mismatch after motor swap is a frequent commissioning error. For facilities running MECHATROLINK-II communication between the controller and amplifier, inspect the MECHATROLINK terminator plug and network cable integrity at the same time. Finally, review the condition of the terminal block assembly and I/O relay modules in the control panel; loose terminals and aged relay contacts in the servo enable and alarm reset circuits can cause intermittent faults that are difficult to trace after a motor replacement.

Strategic Replacement Solutions

The SGM-02U3B4L is a legacy Sigma Series model that remains widely installed across manufacturing facilities commissioned in the late 1990s through the 2010s. YASKAWA’s commitment to long-term parts availability means original replacement units continue to be sourced through authorized distribution and verified surplus channels, allowing facilities to extend the operational life of existing servo systems without undertaking a full drive-and-motor upgrade project.

For facilities managing a phased modernization strategy, stocking one or two SGM-02U3B4L units as on-site spares provides a cost-effective bridge: the existing SGDH amplifier, cabling infrastructure, and machine parameters remain unchanged, and the replacement motor is installed and commissioned in under two hours by a qualified technician. This approach defers capital expenditure on a full Sigma-7 upgrade while maintaining production reliability. When the modernization project does proceed, the SGM-02U3B4L’s mechanical envelope is dimensionally compatible with several Sigma-7 small-frame motors, simplifying the eventual transition.

Each unit supplied by TOPNLMS is inspected prior to shipment. Testing includes no-load run verification, encoder output signal check, winding resistance measurement, and insulation resistance test (≥100 MΩ at 500VDC). Units are packed in anti-static foam with original or equivalent protective packaging to prevent transit damage.

Support FAQ

Q1: Is this an original YASKAWA SGM-02U3B4L or a compatible replacement?
This is an original YASKAWA SGM-02U3B4L. We do not supply counterfeit or third-party compatible substitutes. All units are sourced through verified channels and are either new old stock or tested surplus in confirmed working condition.

Q2: Which YASKAWA servo amplifiers are compatible with the SGM-02U3B4L?
The SGM-02U3B4L is designed for use with YASKAWA Sigma Series servo amplifiers, including the SGDA-02AS, SGDB-02ADG, and SGDH-02AE. Always verify the amplifier’s rated current and encoder interface specification against your machine documentation before installation.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, we provide replacement or refund after fault verification. The warranty period begins from the date of confirmed delivery.

Q4: How quickly can the SGM-02U3B4L be shipped, and what documentation is provided?
In-stock units are dispatched within 1–3 business days via DHL, FedEx, or EMS depending on destination. A commercial invoice, packing list, and test record are included with each shipment. For urgent breakdown situations, please contact us directly to confirm stock availability and expedited shipping options.
