Yaskawa SRDA-EAXA21A Ruggedized Servo Axis Board for Harsh Environments

Product Overview

Yaskawa SRDA-EAXA21A Ruggedized Servo Axis Board for Harsh Environments

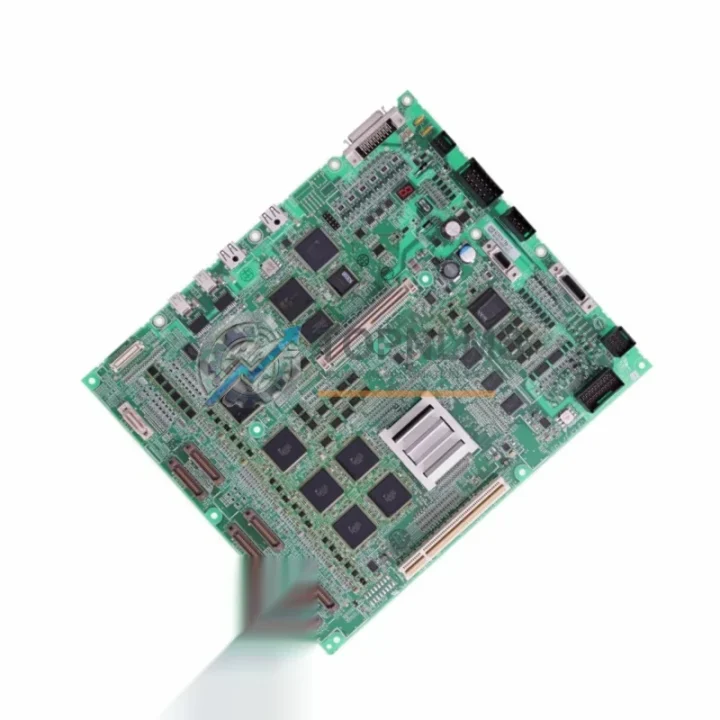

The Yaskawa SRDA-EAXA21A is a multi-axis servo coordination board engineered for the DX200 robot controller platform — one of Yaskawa’s most widely deployed industrial robot control architectures. Designed to operate continuously in demanding production environments, this board manages real-time servo axis coordination across multiple robot joints, delivering the precision motion control that modern automated manufacturing lines depend on. Whether installed in automotive body shops, metal fabrication cells, food processing lines, or heavy-duty palletizing systems, the SRDA-EAXA21A is built to sustain reliable performance where downtime is not an option.

Industrial environments impose relentless stress on control electronics. High ambient temperatures from furnaces and welding arcs, persistent vibration from press lines and conveyor systems, airborne particulates from grinding and cutting operations, and pervasive electromagnetic interference from variable frequency drives and high-current switching equipment all degrade lesser components over time. The SRDA-EAXA21A is manufactured to Yaskawa’s rigorous industrial-grade standards, with robust PCB conformal coating, reinforced connector interfaces, and thermal management characteristics that allow it to sustain operation across the full temperature range typical of factory floor enclosures. Its EMI shielding design ensures signal integrity is maintained even when installed in control cabinets alongside high-power inverters, servo amplifiers, and switching power supplies.

Within the DX200 controller architecture, the SRDA-EAXA21A interfaces directly with the system’s servo amplifier modules — including the SRDA-SDA3A20A and related SRDA-series amplifier boards — to coordinate synchronized multi-axis motion. It communicates with the DX200’s main CPU board via the controller’s internal high-speed bus, ensuring deterministic real-time control loop execution. This tight integration means that a faulty or degraded SRDA-EAXA21A will immediately manifest as axis synchronization errors, servo alarm codes, or complete motion inhibit conditions, making rapid spare part availability critical to minimizing unplanned downtime.

For facilities running Yaskawa DX200-based robot cells — whether single-robot welding stations or multi-robot coordinated assembly lines — maintaining a stocked SRDA-EAXA21A spare is a recognized best practice in industrial maintenance planning. The board is also compatible with DX200 controller variants used in material handling, arc welding, spot welding, and general-purpose manipulation applications, making it a versatile spare that covers a broad range of installed robot configurations. Maintenance engineers familiar with the Yaskawa MotionWorks environment and DX200 diagnostic tools will find the board’s replacement procedure straightforward, with no firmware re-flashing required in most standard swap scenarios.

Beyond the servo axis board itself, a fully protected DX200 robot cell typically relies on a coordinated set of control and power components. The JZNC-YRK21-1E robot controller CPU unit provides the master processing and I/O coordination layer, while JZRCR-YPU21-1 power supply units deliver the regulated DC rails that the servo and control boards depend on. In cells with external safety integration, JZNC-YSU21-1E safety control units enforce zone monitoring and emergency stop logic, working in parallel with the servo coordination layer managed by the SRDA-EAXA21A. For multi-robot coordinated motion, the JZNC-YEW01-1E Ethernet communication board enables inter-controller synchronization across the production cell network.

In harsh-environment installations — such as foundry automation, offshore platform equipment handling, or chemical plant material transfer — the control cabinet housing the DX200 system will often include additional protective measures: positive-pressure purge systems, industrial-grade DIN rail terminal blocks rated for high-vibration environments, and EMI-filtered power entry modules. The SRDA-EAXA21A’s design accommodates these installation contexts, maintaining stable servo coordination even when the surrounding cabinet environment is subject to thermal cycling, condensation risk management protocols, or continuous vibration from nearby heavy machinery.

For facilities in oil and gas processing, mining, electric power generation, water treatment, metallurgy, and heavy manufacturing, robot controller reliability is directly tied to production continuity. A single unplanned robot downtime event in a continuous casting line or a refinery transfer system can result in losses that far exceed the cost of maintaining a qualified spare parts inventory. Stocking a verified SRDA-EAXA21A — sourced from a supplier with documented testing and quality control procedures — is a straightforward risk mitigation measure that experienced maintenance and reliability engineers consistently recommend.

Rugged Specifications Table

Comprehensive Protection Solutions

A resilient DX200 robot control system is never a single-component solution. The SRDA-EAXA21A servo axis board operates as part of a tightly integrated control architecture that spans power conditioning, safety enforcement, communications, and I/O management. In a fully protected installation, the DX200 controller’s JZNC-YRK21-1E CPU board handles task scheduling and program execution, while dedicated JZRCR-YPU21-1 power supply modules provide the stable, regulated DC power that servo coordination electronics require. Any instability in the power supply layer — whether from mains fluctuations, inrush events, or aging capacitors — will directly stress the SRDA-EAXA21A and associated servo amplifier boards.

Safety integration in hazardous or collaborative robot installations relies on the JZNC-YSU21-1E safety unit, which monitors emergency stop circuits, safety gate interlocks, and zone control signals. This unit works in coordination with the servo axis board to enforce safe torque-off and controlled stop functions when a safety event is detected. For facilities requiring network-level safety integration, the JZNC-YEW01-1E Ethernet board enables EtherNet/IP or PROFINET connectivity, allowing the DX200 system to participate in plant-wide safety PLC architectures — including Siemens S7-series safety PLCs and Allen-Bradley GuardLogix controllers — without compromising the real-time servo coordination managed by the SRDA-EAXA21A.

At the field level, I/O expansion modules, industrial relay output boards, and DIN-rail-mounted terminal blocks connect the robot controller to end-of-arm tooling, conveyor interlocks, vision system triggers, and process sensors. Maintaining the integrity of this entire signal chain — from field device through I/O module to the DX200 CPU and down to the SRDA-EAXA21A servo coordination layer — is essential for consistent, fault-free robot operation in continuous production environments.

Application in Critical Infrastructure

The Yaskawa SRDA-EAXA21A finds its most demanding applications in industries where production continuity, personnel safety, and process precision are simultaneously non-negotiable. In oil and gas facilities, DX200-based robots perform pipe handling, valve assembly, and inspection tasks in environments characterized by explosive atmosphere risk, high humidity, and corrosive airborne contaminants — conditions that demand the highest standards of control electronics reliability. In mining and mineral processing, robots equipped with DX200 controllers manage ore sampling, explosive loading assistance, and heavy component handling in environments with extreme dust loading, ground vibration, and wide temperature swings between surface and underground operations.

In electric power generation — including thermal, nuclear, and renewable energy facilities — DX200-based automation systems perform maintenance tasks on high-voltage equipment, turbine component handling, and fuel assembly management, where electromagnetic interference from high-current bus systems and switching equipment is a constant challenge for control electronics. Water and wastewater treatment plants deploy Yaskawa robots for chemical dosing, pipe inspection, and pump maintenance in high-humidity, chemically aggressive environments where corrosion resistance and sealed enclosure integrity are critical. In metallurgy and steel production, DX200 controllers manage ladle handling, billet transfer, and rolling mill automation in environments with radiant heat loads, metal dust, and continuous vibration — among the most demanding conditions any industrial control board will face.

Across all these sectors, the ability to source a verified, tested SRDA-EAXA21A spare part rapidly — with documented quality assurance and a clear warranty commitment — is a material factor in maintenance planning and risk management decisions.

Security & Quality FAQ

Q: What warranty coverage is provided with the SRDA-EAXA21A?
A: Every SRDA-EAXA21A shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with the DX200 controller’s specified installation environment. Warranty claims are supported by our technical team with direct replacement or repair options.

Q: How is each unit tested before shipment?
A: All SRDA-EAXA21A boards undergo a documented functional inspection process prior to dispatch. This includes visual inspection for physical damage, connector integrity verification, and where applicable, powered functional testing against known-good DX200 reference systems. A test record is maintained for each unit. We do not ship untested or uninspected boards.

Q: Is this board compatible with all DX200 controller variants?
A: The SRDA-EAXA21A is designed for the Yaskawa DX200 controller platform and is compatible with the standard range of DX200 variants used in arc welding, spot welding, material handling, and general-purpose robot applications. If your installation uses a specialized DX200 configuration — such as a multi-robot coordinated system or a specific regional variant — please contact our technical team before ordering to confirm compatibility with your exact controller revision.

Q: Can TOPNLMS support long-term or repeat supply of this part?
A: Yes. TOPNLMS maintains ongoing inventory of Yaskawa DX200 series spare parts, including the SRDA-EAXA21A, to support customers with planned maintenance programs, emergency replacement needs, and multi-site fleet management requirements. We can discuss scheduled supply agreements, reserved stock arrangements, and priority dispatch options for customers with critical uptime requirements. Contact us at [email protected] or call +86 18359293191 to discuss your supply requirements.
