Yaskawa SGMSS-20A2A-YR12 Ruggedized AC Servo Motor

Product Overview

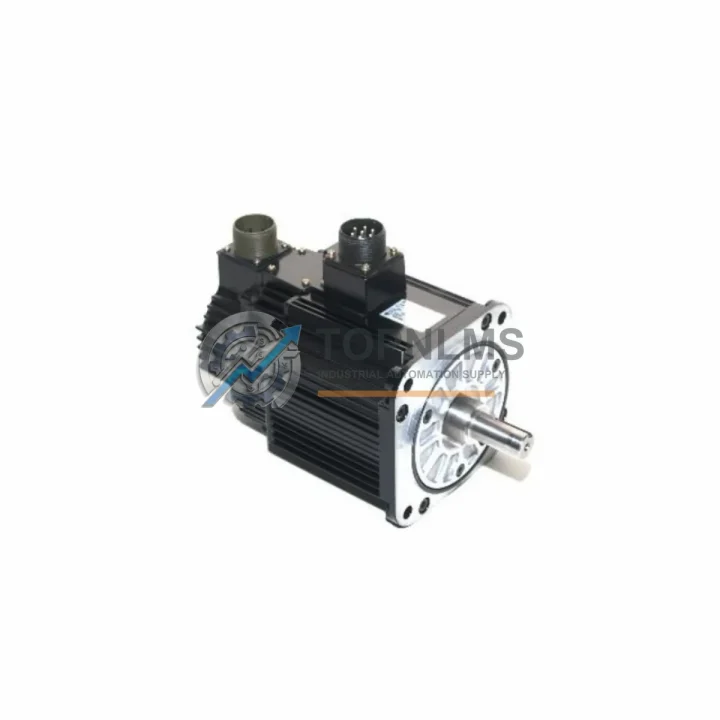

Yaskawa SGMSS-20A2A-YR12 Ruggedized AC Servo Motor for Harsh Environments

The Yaskawa SGMSS-20A2A-YR12 is a high-performance, ruggedized AC servo motor from the Sigma-V series, engineered to deliver consistent, reliable torque output in the most demanding industrial environments. Rated at 2.0 kW with a 200V AC supply and carrying an IP67 ingress protection rating, this motor is purpose-built to withstand continuous exposure to moisture, dust, vibration, thermal cycling, and electromagnetic interference — conditions routinely encountered in heavy manufacturing, process automation, and critical infrastructure operations.

In applications where production continuity is non-negotiable, the SGMSS-20A2A-YR12 provides the mechanical and electrical resilience required to maintain servo loop integrity without unplanned downtime. Its sealed construction prevents ingress of coolant mist, metal particulate, and hydraulic fluid — common contaminants in CNC machining centers, press lines, and robotic welding cells. The motor’s high-resolution encoder interface ensures precise position feedback even under sustained vibration loads, making it a preferred choice for multi-axis motion platforms where positional accuracy directly affects product quality.

When integrated with the Yaskawa SGDV-200A01A Sigma-V servo drive, the SGMSS-20A2A-YR12 operates within a fully tuned closed-loop system. The SGDV series drives support autotuning algorithms that compensate for load inertia variation — critical in applications such as coil winding, tension control, and high-speed pick-and-place. The motor’s connector pinout is compatible with standard Yaskawa CN1 and CN2 encoder cable assemblies, simplifying drop-in replacement without rewiring the control cabinet.

In steel mill auxiliary drives, the SGMSS-20A2A-YR12 is frequently deployed alongside Yaskawa CIMR-series variable frequency drives to coordinate speed-matched roller tables and coiler tension arms. The motor’s thermal class F insulation and forced-air-compatible frame geometry allow it to sustain rated output at elevated ambient temperatures, reducing the need for supplemental cooling infrastructure in confined electrical rooms. For facilities operating Yaskawa MP3300 machine controllers, the motor integrates directly into MECHATROLINK-III motion networks, enabling synchronized multi-axis coordination with sub-millisecond cycle times.

Replacement planning for the SGMSS-20A2A-YR12 should account for the full servo axis assembly. Facilities maintaining Sigma-V servo systems typically stock the SGDV servo amplifier, the JZSP-CHP00-03 power cable, and the JZSP-CVP00-03 encoder cable as a matched set. When the motor is replaced in the field, the servo drive’s encoder offset parameter (Pn080) must be re-initialized using the SGDV operator panel or Yaskawa SigmaWin+ software to restore absolute position reference. This procedure takes approximately 15 minutes and does not require PLC program modification.

For operations in oil and gas upstream facilities, the IP67 rating of the SGMSS-20A2A-YR12 satisfies the ingress protection requirements for Zone 2 classified areas when installed within an appropriate Ex-rated enclosure. In water treatment and desalination plants, the motor’s corrosion-resistant shaft seal and stainless-option flange variants support long service intervals in high-humidity, chemically aggressive atmospheres. Mining conveyor drive applications benefit from the motor’s high peak torque-to-inertia ratio, which absorbs belt-load shock without triggering overcurrent faults in the associated SGDV drive.

TOPNLMS maintains verified stock of the SGMSS-20A2A-YR12 sourced through authorized industrial distribution channels. Each unit undergoes pre-shipment functional testing including insulation resistance verification, encoder signal integrity check, and no-load run-in. Units are shipped in original or equivalent protective packaging with full documentation. Standard lead time from Xiamen is 3–7 business days for international express freight.

Rugged Specifications Table

Comprehensive Protection Solutions

A complete Sigma-V servo axis requires more than the motor itself. The SGDV-200A01A servo amplifier provides the drive intelligence, while the JZSP-CHP00-03 motor power cable and JZSP-CVP00-03 encoder cable ensure signal integrity between the drive and motor over distances up to 20 meters. For cabinet-level power conditioning, the Yaskawa CIMR-series input reactor suppresses line harmonics that would otherwise degrade encoder feedback accuracy. In multi-axis systems, the Yaskawa SGDV-OSA01A option card enables absolute encoder battery backup, preserving homing data through power cycles — essential for gantry and Cartesian robot applications.

Where the servo system interfaces with a Yaskawa MP3300 or MP2300S machine controller, the MECHATROLINK-III network card (JAPMC-MC2300) coordinates motion commands across all axes with deterministic timing. Safety-rated applications may additionally incorporate the Yaskawa SGDV-SER20A safety option module, which provides STO (Safe Torque Off) and SS1 (Safe Stop 1) functions compliant with IEC 62061 SIL 2. Terminal block assemblies such as the Yaskawa JUSP-TA50P simplify I/O wiring between the servo drive and the host PLC, reducing cabinet wiring time and the risk of connection errors during commissioning.

Application in Critical Infrastructure

In oil and gas pipeline compression stations, the SGMSS-20A2A-YR12 drives valve actuators and metering pump heads where IP67 sealing prevents hydrocarbon condensate ingress. In coal preparation plants and mineral processing facilities, the motor’s 5G vibration rating sustains reliable operation on vibrating screen drives and classifier feed conveyors. Power generation facilities use Sigma-V servo motors to position inlet guide vanes on gas turbine compressors, where sub-degree positioning accuracy directly affects combustion efficiency. Water and wastewater treatment plants deploy the SGMSS-20A2A-YR12 on chemical dosing pump drives and sluice gate actuators, where the IP67 rating and corrosion-resistant construction extend maintenance intervals in permanently wet environments. In primary aluminum smelters and steel continuous casting lines, the motor’s thermal resilience and high peak torque support the demanding duty cycles of ladle transfer cars and mold oscillation drives.

Security & Quality FAQ

Q: What does the 12-month warranty cover?
A: TOPNLMS provides a 12-month warranty from the date of shipment covering manufacturing defects, encoder failure, winding insulation breakdown, and bearing failure under normal operating conditions. Warranty claims are processed within 5 business days, with replacement units dispatched from Xiamen stock.

Q: How is each unit tested before shipment?
A: Every SGMSS-20A2A-YR12 undergoes insulation resistance testing (≥100 MΩ at 500V DC), encoder signal verification using a Yaskawa-compatible tester, and a no-load run-in at rated speed. A test report is available upon request.

Q: Is this motor compatible with my existing Sigma-V drive and cabling?
A: Yes. The SGMSS-20A2A-YR12 is fully compatible with all SGDV-200 series amplifiers and standard Yaskawa Sigma-V motor cables. No drive parameter changes are required beyond the standard encoder offset initialization (Pn080) performed after any motor replacement.

Q: Can TOPNLMS guarantee long-term supply for ongoing maintenance programs?
A: TOPNLMS maintains buffer stock of high-demand Sigma-V servo motors and can support scheduled procurement programs for facilities with planned maintenance cycles. Contact our team to discuss consignment or reserved-stock arrangements.
