YASKAWA SGDV-5R4D11A020000 Ruggedized AC Servo Drive

Product Overview

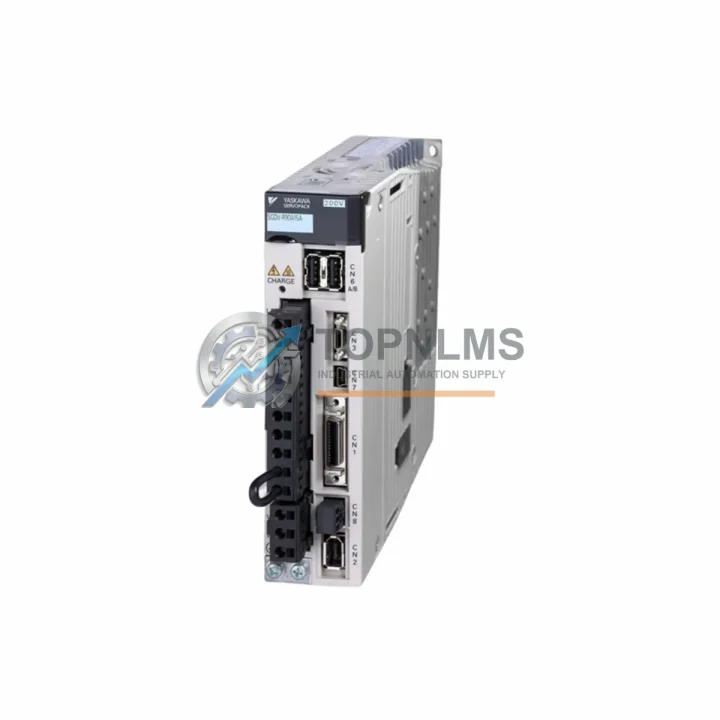

YASKAWA SGDV-5R4D11A020000 Ruggedized AC Servo Drive for Harsh Environments

The YASKAWA SGDV-5R4D11A020000 is a high-performance Sigma-V Series SERVOPACK AC servo amplifier engineered to deliver precise motion control under the most demanding industrial conditions. Rated at 200V AC input with a continuous output current of 5.4A, this servo drive is purpose-built for applications where uptime is non-negotiable — from continuous production lines and heavy-duty machining centers to hazardous-area automation systems in oil & gas, mining, and metallurgical plants.

YASKAWA’s Sigma-V platform is globally recognized for its exceptional anti-vibration tuning, high-speed autotuning algorithms, and robust EMC shielding. The SGDV-5R4D11A020000 inherits all of these characteristics, making it a trusted choice for engineers who need a servo amplifier that performs reliably in environments characterized by high ambient temperatures, humidity, airborne particulates, mechanical shock, and intense electromagnetic interference.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, the SGDV-5R4D11A020000 rarely operates in isolation. It is most commonly deployed alongside a matched YASKAWA SGMJV or SGMGV Series servo motor, forming a tightly integrated Sigma-V motion axis. The SERVOPACK communicates upstream with a YASKAWA MP3300 Machine Controller or a third-party PLC via MECHATROLINK-II, enabling synchronized multi-axis coordination across complex production cells.

Within the control cabinet, the SGDV-5R4D11A020000 is typically paired with a YASKAWA JZRCR-NPP01B regenerative resistor unit or a braking resistor module to safely dissipate energy during rapid deceleration cycles — a critical requirement in high-inertia applications such as press feeders and winding machines. An EMC line filter installed on the input side further suppresses conducted emissions, protecting adjacent Siemens S7-1200 or Mitsubishi MELSEC iQ-R PLCs sharing the same power distribution panel from servo-induced noise.

For facilities operating under IEC 62061 or ISO 13849 safety standards, the servo drive is often integrated with a PILZ PNOZ safety relay module or a Rockwell Allen-Bradley GuardLogix safety controller to implement STO (Safe Torque Off) functionality. This ensures that in the event of an emergency stop or guard door opening, the servo axis is de-energized in a controlled, certified manner without requiring a full system power-down.

On the I/O side, Phoenix Contact or Weidmüller terminal blocks and I/O modules are commonly used to interface the SGDV’s digital I/O signals with the broader control system. Industrial 24VDC power supplies — such as those from the YASKAWA or MEAN WELL series — provide stable logic-level power to the drive’s control circuitry, ensuring immunity to voltage sags on the main supply rail. Where fieldbus connectivity is required, a MECHATROLINK-II communication module or an optional DeviceNet / EtherCAT gateway bridges the servo network to plant-level SCADA systems.

Application in Critical Infrastructure

The YASKAWA SGDV-5R4D11A020000 has established a strong track record across critical infrastructure sectors where servo drive failure carries significant operational and safety consequences.

Oil & Gas: In upstream and midstream facilities, this SERVOPACK controls valve actuators, metering pump drives, and pipeline pig launcher mechanisms. Its sealed control board design and wide operating temperature range allow it to function reliably in outdoor equipment enclosures exposed to salt-laden air, condensation cycles, and hydrocarbon vapors.

Mining & Mineral Processing: Conveyor positioning systems, ore sampling equipment, and flotation cell agitators in underground and open-pit mines demand servo drives that can withstand continuous vibration, coal dust ingress, and frequent voltage fluctuations from large motor starts. The SGDV-5R4D11A020000’s advanced autotuning and vibration suppression filters maintain positioning accuracy even under these adverse conditions.

Power Generation & Utilities: Turbine blade pitch control, fuel injection positioning, and automated switchgear testing rigs in thermal and hydroelectric power plants rely on servo precision. The drive’s CE and UL certifications satisfy the stringent electrical safety requirements of utility-grade installations.

Water & Wastewater Treatment: Dosing pump drives, filter press actuators, and UV disinfection system positioning mechanisms in water treatment plants operate in high-humidity, chemically aggressive environments. The SGDV-5R4D11A020000’s conformal-coated PCB option and robust thermal management ensure long service intervals between maintenance cycles.

Metallurgy & Steel: Rolling mill gap control, continuous casting withdrawal drives, and ladle transfer car positioning in steel plants subject servo equipment to extreme thermal radiation, heavy vibration, and electromagnetic interference from large induction furnaces. YASKAWA’s Sigma-V platform is specifically validated for these environments, with field installations documented across major steel producers in Asia and Europe.

Security & Quality FAQ

Q1: What warranty coverage is provided with the SGDV-5R4D11A020000?
Every unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides remote diagnostic support throughout the warranty period, and replacement units are dispatched within 3–5 business days upon confirmed fault verification.

Q2: How is each unit tested before shipment?
All SGDV-5R4D11A020000 units undergo a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying control mode operation, encoder interface verification, and parameter initialization check. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for critical procurement projects.

Q3: Is this drive compatible with existing Sigma-V servo motors and controllers?
Yes. The SGDV-5R4D11A020000 is fully compatible with the YASKAWA Sigma-V motor series (SGMJV, SGMGV, SGMCS) and integrates natively with YASKAWA MP-series machine controllers via MECHATROLINK-II. It also supports analog ±10V and pulse-train command interfaces for integration with third-party PLCs and CNC controllers. Parameter migration from other Sigma-V SERVOPACK models is supported via YASKAWA’s SigmaWin+ software.

Q4: Can long-term supply and replacement support be guaranteed?
TOPNLMS maintains dedicated stock of Sigma-V SERVOPACK models to support ongoing MRO (Maintenance, Repair & Operations) requirements. For customers with multi-unit installations, we offer reserved stock agreements and priority allocation to ensure continuity of supply during planned maintenance shutdowns or unplanned breakdowns. Contact our team to discuss long-term supply arrangements tailored to your facility’s maintenance schedule.
