YASKAWA SGDS-01A32A Replacement Solution for Sigma-III

Product Overview

YASKAWA SGDS-01A32A Replacement Solution for Sigma-III: Smooth Transition & Legacy System Compatibility

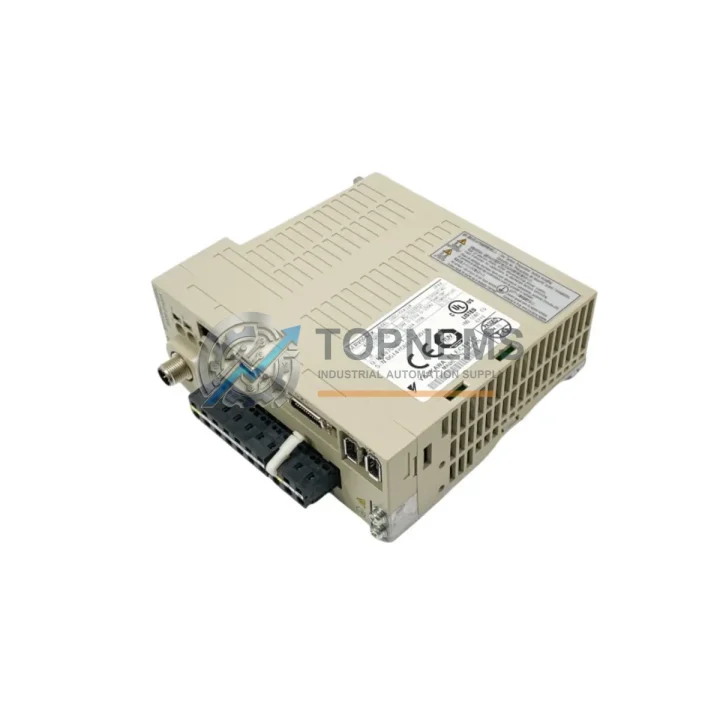

The YASKAWA SGDS-01A32A is a compact, high-performance AC servo amplifier from the Sigma-III series, designed for precision motion control in demanding industrial environments. As legacy servo systems age and original components approach end-of-life, sourcing a verified replacement for the SGDS-01A32A becomes a critical priority for maintenance engineers, system integrators, and procurement teams managing production continuity.

At TOPNLMS, every SGDS-01A32A unit is sourced as an original Yaskawa component, fully tested prior to shipment, and backed by a 12-month warranty. Whether you are executing a like-for-like swap on an existing Sigma-III axis or planning a broader servo system upgrade, this amplifier delivers the electrical compatibility and communication protocol support your application demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing or upgrading a servo drive rarely occurs in isolation. The SGDS-01A32A sits within a broader motion control architecture, and a successful migration requires careful attention to every connected component in the servo loop and control cabinet.

When migrating from a Sigma-II SGDM-01ADA or similar analog-command amplifier to the SGDS-01A32A, the most immediate consideration is the communication interface. The Sigma-III series uses MECHATROLINK-II, a high-speed synchronous network protocol. If your existing motion controller — such as a Yaskawa MP2300 machine controller or a compatible third-party PLC — already supports MECHATROLINK-II, the transition is straightforward. If not, a MECHATROLINK-II interface module or a controller upgrade may be required before commissioning.

On the motor side, the SGDS-01A32A is matched to SGMSH-01A or SGMS-01A series servo motors. If the existing motor is from the Sigma-II generation, verify encoder type compatibility. Sigma-III amplifiers support 17-bit absolute encoders, which provide superior positioning accuracy and eliminate the need for homing routines after power loss — a significant operational advantage in automated assembly and CNC applications. If the motor must also be replaced, sourcing the matched SGMSH-01ADE6S motor alongside the amplifier ensures a validated drive-motor pair.

Within the control cabinet, the SGDS-01A32A requires a stable 200–230 VAC single-phase supply. Inspect the power supply module and input fusing before installation. A dedicated noise filter on the AC input line is strongly recommended to suppress conducted interference, particularly in environments with variable-frequency drives or other switching equipment sharing the same panel. Ensure the regenerative resistor — either the built-in unit or an external JUSP-RA04 regenerative resistor unit — is correctly sized for the duty cycle of your application.

Signal integrity is equally important during migration. The CN1 I/O connector carries digital inputs for servo-on, alarm reset, forward/reverse run prohibit, and analog monitor outputs. When re-terminating wiring from a legacy system, use shielded cable and verify that the terminal block adapter (JUSP-TA50P or equivalent) is correctly mapped to the new connector pinout. For multi-axis systems, the MECHATROLINK-II cable daisy-chain topology must be maintained with proper termination resistors at the last axis.

For facilities running Yaskawa SGDV (Sigma-V) drives on adjacent axes, the SGDS-01A32A can coexist on the same MECHATROLINK-II network, simplifying mixed-generation panel management during phased upgrades. Parameter migration from Sigma-II to Sigma-III requires re-entry of key settings — speed loop gain, position loop gain, notch filter frequencies, and electronic gear ratio — using the SigmaWin+ engineering software or the front-panel digital operator.

Procurement teams managing spare parts inventory should consider stocking the SGDS-01A32A alongside related consumables: encoder cables (JZSP-CHP800), power cables (JZSP-B9P003), and a spare digital operator (JUSP-OP05A-1) for on-site parameter backup and fault diagnostics. These components have finite service lives and are frequently the first to fail in high-cycle applications.

All units shipped by TOPNLMS are inspected, function-tested, and packaged with anti-static protection. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent production line recovery. Global shipping is supported with full documentation for customs clearance.

Retrofit Guidance FAQ

Q1: Can the SGDS-01A32A directly replace a Sigma-II SGDM-01ADA without rewiring?
A direct plug-in replacement is not possible due to differences in connector layout and communication protocol. The Sigma-II SGDM series uses analog or pulse command interfaces, while the SGDS-01A32A uses MECHATROLINK-II. Wiring adaptation and controller-side protocol support are required. However, the motor shaft and flange dimensions are compatible with matched Sigma-III motors, and the physical cabinet footprint is similar, minimizing mechanical rework.

Q2: Is the SGDS-01A32A compatible with third-party PLCs or motion controllers?
Yes, provided the controller supports MECHATROLINK-II communication. Many Yaskawa MP-series controllers and select third-party motion controllers with MECHATROLINK-II option cards are compatible. For pulse-train or analog-command controllers, a MECHATROLINK-II to pulse converter module may be used, though this adds latency and is not recommended for high-precision applications.

Q3: What parameters must be re-entered after replacing the amplifier?
All servo parameters are stored in the amplifier, not the motor. After replacement, key parameters including Pn100 (speed loop gain), Pn102 (position loop gain), Pn20E/Pn210 (electronic gear ratio), and notch filter settings must be re-entered. TOPNLMS recommends backing up parameters from the original unit using SigmaWin+ before removal, if the unit is still partially functional.

Q4: How is physical installation space affected when upgrading from Sigma-II to Sigma-III?
The SGDS-01A32A has a compact form factor comparable to the SGDM-01ADA. DIN-rail mounting is supported with an optional bracket. Verify clearance for the CN6 MECHATROLINK-II connector and cable routing, as this connector is absent on Sigma-II units and requires additional cable management space in the panel.

Warranty Assurance

Every YASKAWA SGDS-01A32A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes power-on functional testing, alarm code verification, and encoder interface validation. Units are shipped in original or equivalent anti-static packaging with full traceability documentation.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with compatibility verification, parameter guidance, and installation troubleshooting. Procurement teams are encouraged to contact us for volume pricing, lead time commitments, and consignment stock arrangements for critical spare parts programs.

For urgent production line recovery, expedited shipping options are available to most global destinations. All export documentation, including commercial invoices and packing lists, is prepared to facilitate smooth customs clearance.
