YASKAWA SGDM-60ADA Replacement/Upgrade Solution for Sigma-II

Product Overview

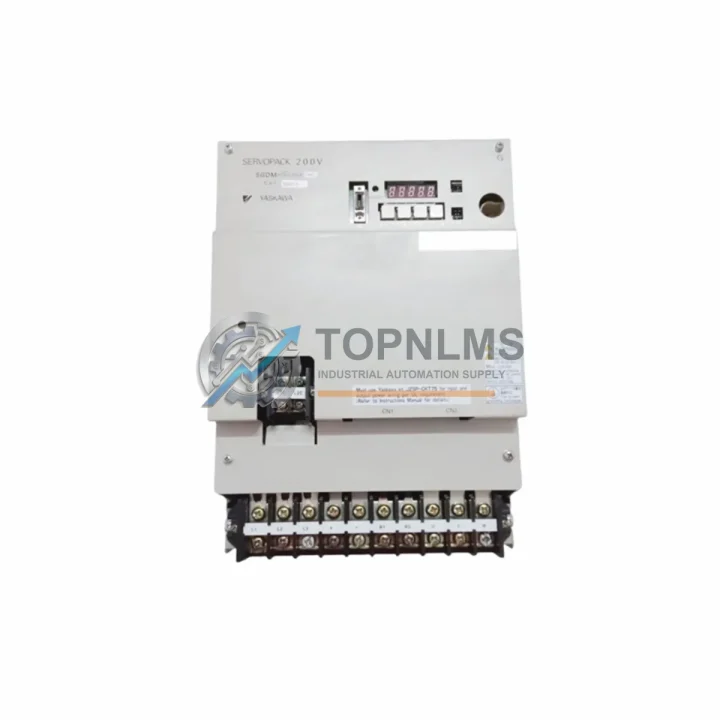

YASKAWA SGDM-60ADA Replacement/Upgrade Solution for Sigma-II: Smooth Transition from Legacy Servo Systems

When your existing YASKAWA SGDM-60ADA Sigma-II series AC servo drive reaches end-of-life, faces obsolescence, or suffers an unexpected failure, production continuity becomes the immediate priority. The SGDM-60ADA is a 6 kW, single-axis AC servo drive from YASKAWA’s Sigma-II platform — a workhorse in precision motion control applications across CNC machining centers, injection molding machines, semiconductor handling equipment, and automated assembly lines. This product page is dedicated to engineers and procurement teams seeking a verified, in-stock replacement or a structured upgrade path away from the SGDM-60ADA with minimal disruption to existing wiring, programming, and control architecture.

The SGDM-60ADA operates on a 200 V AC three-phase input and interfaces with YASKAWA SGMG or SGMS series servo motors via the standard CN1 I/O connector and CN2 encoder feedback cable. Its analog command input (±10 V) and pulse train input modes are widely used in legacy motion controller integrations. When migrating away from this drive, the primary engineering concerns are: maintaining encoder feedback compatibility, preserving the existing CN1 wiring harness, matching the physical DIN-rail or panel-mount footprint, and ensuring the replacement drive can accept the same speed/torque command signals from the upstream controller — whether that is a YASKAWA MP2000 series machine controller, a Mitsubishi MELSEC Q-series PLC, or a Siemens S7-300 with analog output modules.

For sites running YASKAWA’s own motion network, the SGDM-60ADA’s successor within the Sigma-II family or the newer Sigma-7 platform (such as the SGD7S-5R5A00A or SGD7S-120A00A) offers a direct upgrade path. The Sigma-7 drives retain backward compatibility with many Sigma-II motor types when paired with the appropriate encoder conversion cable, and YASKAWA’s SigmaWin+ software allows parameter migration from legacy SGDM drives to the new SGD7S platform. This dramatically reduces re-commissioning time on the factory floor.

In retrofit scenarios where the control cabinet space is constrained, the SGDM-60ADA’s 6 kW rating and physical dimensions must be matched carefully. Engineers frequently pair this drive with the JUSP-NS600 MECHATROLINK-II option card or the SI-T3/V option module for fieldbus integration. During migration, these option cards may need to be replaced with their Sigma-7 equivalents, such as the JUSP-NS115 for MECHATROLINK-III or the SGD7S-specific SI-ES3 EtherCAT option. Ensuring the new drive’s option slot is compatible with the existing network topology — whether MECHATROLINK-II, MECHATROLINK-III, EtherCAT, or DeviceNet — is a critical pre-migration checklist item.

Power supply compatibility is another key consideration. The SGDM-60ADA draws from a 200–230 V AC three-phase supply. If the control cabinet also houses a YASKAWA CIMR-series inverter drive for auxiliary axes or a JZRCR-NPP01B regenerative converter unit, the shared DC bus or regenerative resistor configuration must be re-evaluated when the servo drive is replaced. In multi-axis cabinets, the SGDM-60ADA is often installed alongside SGDM-20ADA or SGDM-30ADA drives on the same servo pack rail, and the replacement strategy should account for all axes simultaneously to avoid mixed-generation compatibility issues.

On the programming side, existing ladder logic or motion programs referencing the SGDM-60ADA’s parameter set (Pn000–Pn212 range) will need to be reviewed against the replacement drive’s parameter map. YASKAWA provides detailed parameter cross-reference tables in the Sigma-7 migration guide. For sites using third-party PLCs, the analog I/O wiring to the CN1 connector — including forward run inhibit (P-OT), reverse run inhibit (N-OT), servo alarm output (/ALM), and speed reference input (V-REF) — must be verified pin-for-pin against the replacement drive’s CN1 pinout before power-up.

Spare parts and consumables associated with the SGDM-60ADA — including the SGDM-60ADA’s internal cooling fan, regenerative resistor unit (JUSP-RA04-E), and the DB resistor assembly — should be sourced alongside the drive replacement to ensure a complete retrofit kit. Having these components on hand reduces the risk of secondary failures during the commissioning phase.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SGDM-60ADA migration typically involves more than just the servo drive itself. During the upgrade process, engineers commonly source the JZSP-CVS06-02-E encoder conversion cable to bridge the legacy incremental encoder wiring to the new Sigma-7 serial encoder interface. The CN1 I/O terminal block — often a JUSP-TA50P breakout board — can be reused if the wiring harness is preserved. For sites transitioning to MECHATROLINK-III, the JUSP-NS115 network option card slots directly into the SGD7S drive and replaces the older JUSP-NS600 used with the SGDM-60ADA.

In multi-axis cabinets, the SGDM-20ADA and SGDM-30ADA drives installed alongside the SGDM-60ADA are frequently upgraded in the same maintenance window to standardize the servo platform. The shared regenerative resistor unit (JUSP-RA04-E) and the 24 V DC control power supply feeding the servo pack rail should be inspected and replaced if they show signs of wear. For applications requiring a new HMI interface, the YASKAWA GP series or a compatible Proface GP4000 panel can be integrated with the upgraded Sigma-7 system via EtherNet/IP or MECHATROLINK-III without changes to the PLC program structure.

Signal isolation between the upstream PLC analog output and the servo drive’s V-REF input is a best practice in high-noise industrial environments. A DIN-rail mounted signal isolator — such as the Phoenix Contact MINI MCR-SL-UI-UI or equivalent — protects the new drive’s command input from ground loop interference, particularly in cabinets where VFDs and servo drives share the same enclosure. This small addition significantly improves long-term reliability of the upgraded system.

Retrofit Guidance FAQ

Q: Can I reuse the existing CN1 wiring harness from the SGDM-60ADA?
A: Yes, in most cases. The CN1 pinout for Sigma-7 SGD7S drives is largely compatible with Sigma-II SGDM drives for standard I/O signals (P-OT, N-OT, /ALM, V-REF, SG). Verify pin assignments against the SGD7S hardware manual before power-up.

Q: Will my existing servo motor (SGMG or SGMS series) work with the new drive?
A: Yes, with the appropriate encoder conversion cable (JZSP-CVS06-02-E). Sigma-II motors are compatible with Sigma-7 drives in analog/pulse command mode. Full serial encoder functionality requires a Sigma-7 compatible motor.

Q: How do I migrate parameters from the SGDM-60ADA to the replacement drive?
A: Use YASKAWA SigmaWin+ software. The parameter migration wizard maps SGDM Pn parameters to their SGD7S equivalents and flags any parameters that require manual review due to functional differences.

Q: Is the physical footprint the same?
A: The SGD7S-120A00A is approximately 5 mm wider than the SGDM-60ADA. In tight cabinet layouts, this may require minor rail adjustment. Depth and height are comparable. Always verify cabinet drawings before ordering.

Q: What communication protocol changes are required?
A: If the existing system uses MECHATROLINK-II, the new drive requires the JUSP-NS115 option card for MECHATROLINK-III, or the SI-ES3 for EtherCAT. Pure analog/pulse command systems require no protocol changes.

Warranty Assurance

Every SGDM-60ADA replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, alarm code check, and encoder interface validation. Units are packed in anti-static foam with original or equivalent OEM packaging to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a direct replacement unit dispatched within 3 business days of fault confirmation. Our technical support team is available to assist with installation queries, parameter setup, and commissioning guidance via email and phone. We maintain stock of SGDM-60ADA and related Sigma-II and Sigma-7 components in our Xiamen warehouse, enabling same-day dispatch for urgent orders placed before 15:00 CST.

For procurement teams requiring documentation, we provide a certificate of conformity, packing list, and commercial invoice with each shipment. DDP (Delivered Duty Paid) terms are available for select international destinations. Contact our sales team for volume pricing, lead time confirmation, and technical pre-sales support.
