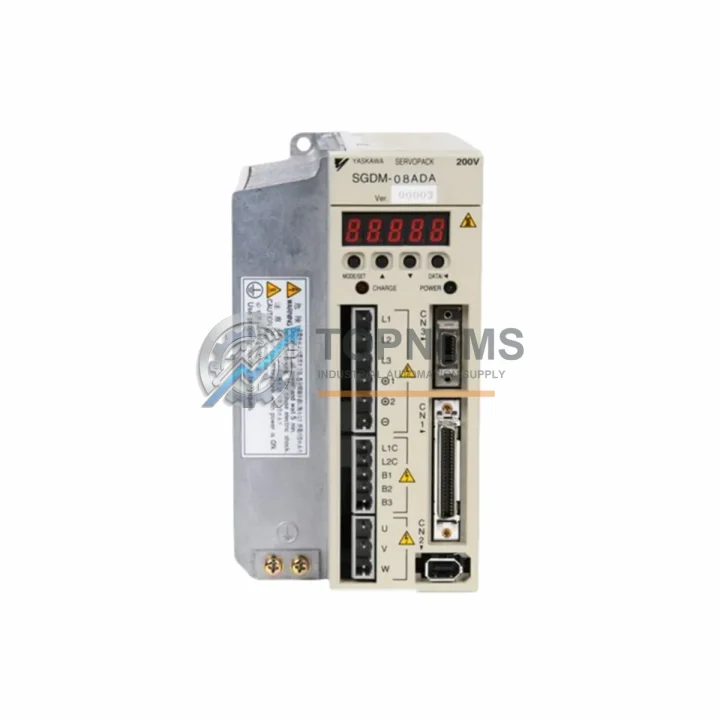

YASKAWA SGDM-08ADA Ruggedized AC Servo Drive Module

Product Overview

YASKAWA SGDM-08ADA Ruggedized AC Servo Drive: Industrial Resilience for Harsh Environments

The YASKAWA SGDM-08ADA is a high-performance AC servo amplifier from the renowned Sigma-II Series, engineered to deliver precise motion control under the most demanding industrial conditions. Rated at 0.85 kW with a 200V single/three-phase input, this drive is purpose-built for continuous-duty applications where thermal stability, electromagnetic immunity, and mechanical robustness are non-negotiable. Whether deployed on a high-speed packaging line, a precision CNC machining center, or a critical process control loop in a petrochemical facility, the SGDM-08ADA maintains servo loop integrity where lesser drives fail.

YASKAWA’s Sigma-II architecture incorporates advanced auto-tuning algorithms and vibration suppression technology, enabling the SGDM-08ADA to achieve stable positioning even in environments subject to mechanical resonance, floor vibration, or sudden load changes. The drive’s internal heat management design supports operation across a wide ambient temperature range, making it suitable for control cabinets in foundries, cement plants, and outdoor substations where thermal cycling is a daily reality.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, the SGDM-08ADA does not operate in isolation — it is a precision node within a broader control ecosystem. When integrated with a YASKAWA MP2300 Machine Controller or coordinated through a YASKAWA MECHATROLINK-II motion network, the drive achieves synchronized multi-axis performance critical for robotic assembly, semiconductor handling, and high-speed pick-and-place systems.

For facilities running mixed-vendor control infrastructure, the SGDM-08ADA pairs reliably with Siemens S7-300/S7-400 PLC systems via pulse-train or analog reference interfaces, and integrates cleanly into Mitsubishi MELSEC Q-Series architectures using standard position control modules. In DCS-governed process plants, it can receive setpoint commands from Yokogawa CENTUM VP or Honeywell Experion PKS distributed control systems through analog I/O or fieldbus gateways.

Within the control cabinet, the SGDM-08ADA is typically installed alongside YASKAWA JZRCR-NPP01B regenerative resistor units to safely dissipate braking energy during rapid deceleration cycles — a critical consideration in vertical axis and high-inertia load applications. Upstream power conditioning is best handled by a YASKAWA CIMR-series industrial power filter or a dedicated Schaffner FN3258 EMC line filter, ensuring the drive’s sensitive control circuitry is shielded from grid-borne transients and harmonic distortion common in heavy manufacturing environments.

For safety-rated applications, the SGDM-08ADA can be supervised by a Pilz PNOZ X safety relay or a Sick Flexi Soft safety controller that monitors the servo enable signal and enforces STO (Safe Torque Off) behavior in compliance with IEC 62061 and ISO 13849-1 PL d requirements. Terminal wiring within the cabinet is best managed using Phoenix Contact PTFIX distribution terminal blocks or Weidmüller WDU 2.5 series terminals, which provide reliable, vibration-proof connections in high-cycle environments.

Application in Critical Infrastructure

The SGDM-08ADA has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it drives valve actuators and pump control systems on offshore platforms where salt-laden air, constant vibration, and wide temperature swings demand a servo amplifier with proven long-term reliability. Operators in these environments rely on the Sigma-II’s auto-tuning capability to maintain precise flow control without requiring frequent on-site recalibration.

In mining and mineral processing, the SGDM-08ADA controls conveyor positioning systems, ore sampling mechanisms, and crusher feed regulators in environments saturated with silica dust and subject to heavy mechanical shock. Its robust IGBT output stage and conservative thermal design allow it to sustain rated output even when ambient temperatures inside poorly ventilated equipment rooms exceed 45°C.

Power generation and electrical grid infrastructure facilities deploy the SGDM-08ADA in turbine governor control systems and transformer tap-changer actuators, where positioning accuracy directly impacts grid stability. Water and wastewater treatment plants use it to drive precision dosing pump actuators and sluice gate controllers, where continuous 24/7 operation and resistance to high-humidity environments are essential.

In metallurgy and steel production, the drive controls rolling mill positioning systems and ladle transfer car drives, operating in environments with intense radiated heat, electromagnetic interference from large induction furnaces, and airborne metallic particulates. The SGDM-08ADA’s built-in EMI filter and shielded encoder interface maintain signal integrity even in these extreme electromagnetic environments, ensuring that position feedback remains accurate and the servo loop remains stable throughout continuous production shifts.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All SGDM-08ADA units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, component failure under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full repair at no additional cost. Each unit is individually tested prior to dispatch using servo loop verification and insulation resistance checks to confirm it meets YASKAWA factory specifications before leaving our facility.

Q2: How is each unit tested before shipment?
Every SGDM-08ADA undergoes a pre-shipment inspection protocol that includes power-on functional verification, encoder interface continuity testing, parameter initialization confirmation, and visual inspection for physical damage or counterfeit indicators. Units sourced through our verified supply chain are cross-referenced against YASKAWA’s authentic product identification markings, including holographic labels and serial number traceability, to ensure you receive a genuine, fully functional component.

Q3: Is the SGDM-08ADA compatible with my existing YASKAWA servo motor and PLC system?
The SGDM-08ADA is designed for use with YASKAWA SGMAH-08A series servo motors and is backward-compatible with standard Sigma-II motor cables and encoder connectors. It accepts pulse-train position commands (sign + pulse or 90° phase difference) compatible with most PLC high-speed output modules, including those from Siemens, Mitsubishi, Omron, and Rockwell Automation. If you require MECHATROLINK-II network integration, the optional NS115 communication module can be fitted to enable seamless network-based motion control.

Q4: Can TOPNLMS support long-term supply continuity for this model?
Yes. TOPNLMS maintains dedicated stock of Sigma-II series servo amplifiers, including the SGDM-08ADA, to support both immediate replacement needs and planned maintenance programs. We understand that production lines cannot afford extended lead times for critical spare parts. Our procurement team actively manages inventory levels to ensure consistent availability, and we can provide scheduled delivery agreements for customers with recurring maintenance requirements. Contact us to discuss volume pricing and long-term supply arrangements.
