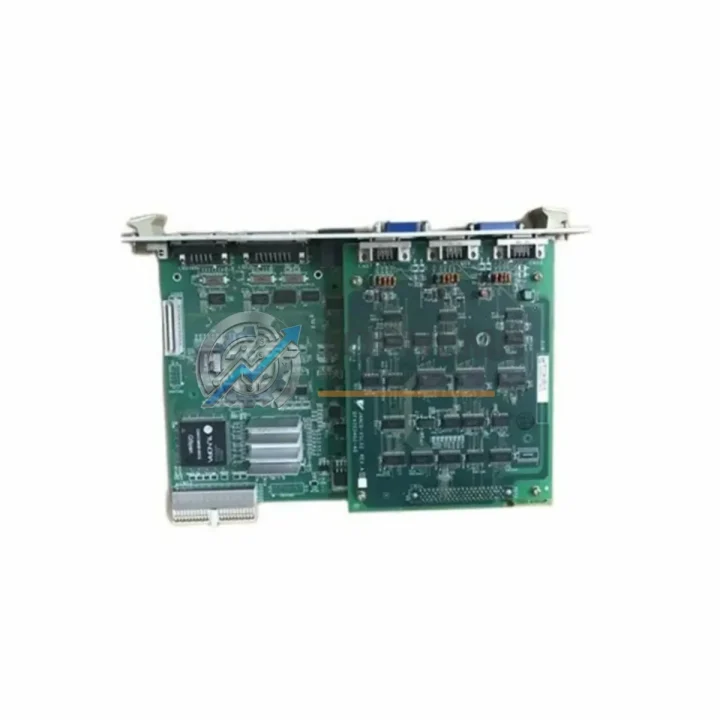

Yaskawa RECW20D50-201-1 Replacement for NX100/YRC1000

Product Overview

Yaskawa RECW20D50-201-1 Replacement for NX100/YRC1000: Smooth Migration, Zero Compromise

The Yaskawa RECW20D50-201-1 is a robot motion control PCB engineered for the NX100 and YRC1000 robot controller platforms. As Yaskawa continues to evolve its controller architecture, many facilities running legacy NX100-based systems — originally paired with UP series, ES series, or HP series manipulators — face the challenge of sourcing reliable replacement boards without triggering a full controller overhaul. This listing addresses that challenge directly.

Whether your maintenance team is responding to an unplanned board failure, executing a scheduled preventive replacement, or managing a phased migration from NX100 to YRC1000 architecture, the RECW20D50-201-1 provides a verified, drop-in-compatible solution. The board interfaces directly with the existing backplane and connector harness inside the NX100 controller cabinet, eliminating the need for rewiring or mechanical modification in most standard configurations.

For facilities already operating on the YRC1000 platform — Yaskawa’s current-generation controller used with MOTOMAN GP, HC, and AR series robots — this PCB also serves as a direct replacement for failed or degraded motion control boards within the same controller family. The YRC1000’s modular architecture means that individual boards such as the RECW20D50-201-1 can be swapped without replacing the entire controller unit, significantly reducing both cost and downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NX100-to-YRC1000 migration — or an in-place NX100 board replacement — rarely involves a single component. In practice, maintenance engineers and system integrators working on Yaskawa robot controller upgrades typically address several interconnected subsystems simultaneously.

When replacing the RECW20D50-201-1 motion control PCB, it is common to inspect and, where necessary, replace the JANCD-NCP02 CPU board, which handles the high-level motion planning and I/O coordination within the NX100 controller. If the JANCD-NCP02 shows signs of firmware corruption or capacitor aging, replacing it alongside the RECW20D50-201-1 ensures the entire motion control stack is refreshed in a single maintenance window.

The CSRA-SDCA01AA servo drive control board is another component frequently addressed during NX100 refurbishment. This board manages the servo amplifier command signals for each robot axis. A degraded CSRA-SDCA01AA can cause intermittent axis faults that are often misdiagnosed as motion PCB failures — replacing both boards together eliminates ambiguity during post-swap commissioning.

On the power distribution side, the NX100 controller relies on a dedicated JZNC-NZU01 power supply unit to deliver regulated 24VDC and 5VDC rails to the logic boards. If the controller has experienced voltage transients or has been in service for more than eight years, inspecting and replacing the PSU in conjunction with the motion PCB is a standard preventive measure recommended by Yaskawa field service guidelines.

For facilities transitioning to the YRC1000 platform, the JZNC-YRK01-1E controller rack provides the physical housing and backplane for YRC1000-series boards. Migrating from NX100 to YRC1000 typically involves installing a new rack alongside the existing controller during a planned shutdown, allowing parallel validation before the legacy system is decommissioned.

Communication integration is another critical migration consideration. Many NX100 installations use JANCD-NCP01 or JANCD-NCP02B network interface boards to connect the robot controller to upstream PLCs or SCADA systems via DeviceNet or Ethernet/IP. When upgrading to YRC1000, the equivalent JZNC-YEW01 Ethernet communication board must be configured to replicate the existing I/O mapping, ensuring that the robot’s interface with the broader production line — including safety interlocks, conveyor synchronization signals, and vision system triggers — remains intact.

For multi-robot cells, the JZNC-YSU01 synchronized motion control option board enables coordinated axis control across multiple manipulators sharing a common YRC1000 controller. Facilities upgrading from NX100 multi-robot configurations should verify that the synchronized motion parameters are re-validated after the board swap, as axis calibration data is stored on the motion PCB and must be reloaded from backup or re-taught on the new board.

Finally, the Yaskawa DX200 controller — positioned between the NX100 and YRC1000 in Yaskawa’s controller evolution — is still in active service at many facilities. For sites running DX200 with MOTOMAN MA, MH, or MS series robots, the RECW20D50-201-1 is not directly compatible, but the migration pathway from DX200 to YRC1000 follows a similar board-level replacement logic, and our team can advise on the appropriate DX200 motion PCB equivalents.

Retrofit Guidance FAQ

Q: Do I need to rewire the controller cabinet when replacing the RECW20D50-201-1?
A: No. The RECW20D50-201-1 uses the same connector footprint and backplane interface as the original NX100 motion control PCB. In standard NX100 configurations, the replacement is a direct plug-in swap with no wiring modification required. Always verify connector orientation and locking tab engagement before powering up.

Q: Will the robot’s existing teach pendant programs be retained after the board swap?
A: Yes, provided the job files are stored on the controller’s flash memory or backed up to a CF card or USB device prior to the swap. The RECW20D50-201-1 does not store job data — program memory resides on the CPU board (JANCD-NCP02). Back up all job files, system parameters, and I/O assignments before beginning any board replacement procedure.

Q: Is the RECW20D50-201-1 compatible with both NX100 and YRC1000 controllers?
A: Yes. This board is cross-compatible with both the NX100 and YRC1000 controller platforms. Verify your controller’s hardware revision and board slot designation against the Yaskawa maintenance manual for your specific robot model before installation.

Q: What communication protocols does this board support?
A: The RECW20D50-201-1 operates on Yaskawa’s proprietary internal servo communication bus. External fieldbus protocols (DeviceNet, Ethernet/IP, PROFIBUS) are handled by separate network interface boards within the controller and are not affected by replacing the motion PCB.

Q: How much physical space does the replacement require inside the controller cabinet?
A: The RECW20D50-201-1 occupies the same PCB slot as the original board. No additional cabinet space is required. Ensure adequate clearance for the connector harness and that the cabinet door can close fully after installation.

Q: What should I verify during post-installation commissioning?
A: After installing the replacement board, perform a controlled power-up with the robot in maintenance mode. Verify that all axis servo drives initialize without fault codes, confirm I/O signal mapping against the pre-swap backup, and run a slow-speed test cycle through the robot’s full range of motion before resuming production speed. Check the alarm history log for any residual fault codes from the previous board failure.

Warranty Assurance

Every Yaskawa RECW20D50-201-1 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and functional bench testing where applicable. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing active production downtime. Our standard response time for warranty inquiries is within one business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent requirements.

Stock availability is maintained for this SKU to support both planned maintenance schedules and emergency replacement scenarios. Orders placed before the daily cut-off are processed and dispatched the same business day. Tracking information is provided upon shipment.

For procurement teams requiring documentation, we can provide a product conformity statement, packing list, and commercial invoice with HS code declaration upon request. All units are shipped with appropriate ESD-protective packaging to prevent transit damage.

To place an order, request a quotation, or discuss compatibility for your specific robot model and controller configuration, contact our technical sales team directly.
