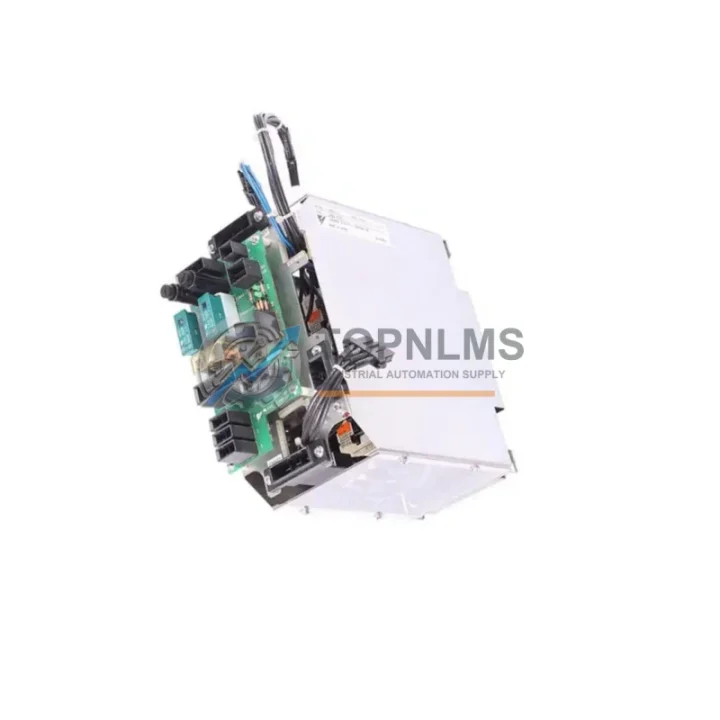

YASKAWA JZNC-YSU01-1E Replacement for DX100 DX200

Product Overview

YASKAWA JZNC-YSU01-1E Replacement for DX100 DX200: Smooth Transition & Legacy System Compatibility

The YASKAWA JZNC-YSU01-1E is the dedicated Safety Unit board for YASKAWA Motoman DX100 and DX200 robot controllers. As aging DX-series systems approach end-of-service life or experience safety board failures, facilities face urgent pressure to restore robot operation with minimal downtime. This replacement unit is sourced, tested, and shipped to support seamless migration from failed or obsolete safety modules — preserving your existing wiring harness, controller chassis, and robot program without requiring a full controller overhaul.

Whether you are replacing a fault-triggered JZNC-YSU01-1E in a live production cell, upgrading a spare-parts inventory for a fleet of Motoman robots, or transitioning from an older DX100 installation to a maintained DX200 platform, this unit delivers the exact form, fit, and function required by YASKAWA’s safety architecture. The board interfaces directly with the controller’s safety I/O bus, emergency stop circuits, and teach pendant safety chain — no re-engineering of the safety relay logic or external safety PLC wiring is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A JZNC-YSU01-1E replacement is rarely a standalone action — it is typically part of a broader DX100 or DX200 controller restoration or preventive maintenance program. During the safety board swap, technicians commonly inspect and replace adjacent components to prevent cascading failures and extend controller service life.

The JZNC-YRK01-1E robot control board and JZNC-YIU01-1E I/O interface unit share the same DX-series backplane and are frequently serviced in the same maintenance window. If the controller has experienced a power surge or extended operation without cooling maintenance, the JZNC-YPS01-1E power supply board should be evaluated alongside the safety unit replacement. For facilities running multiple Motoman robots on a network, the JZNC-YEW01-1E Ethernet communication board governs robot-to-robot and robot-to-SCADA connectivity — verifying its integrity during a safety board swap prevents unplanned network faults after restart.

On the teach pendant side, the JZRCR-YPP21-1 teach pendant cable and the YPP21 pendant unit itself should be inspected for connector wear, as degraded pendant cables are a common secondary cause of safety chain faults that are initially misdiagnosed as safety board failures. Replacing the JZNC-YSU01-1E without verifying pendant cable continuity may result in recurring safety alarms post-installation.

For facilities planning a phased migration from DX100 to DX200 architecture, the JZNC-YCP01-1E CPU board and JZNC-YSF21-1E safety function board represent the next-generation equivalents that support expanded functional safety features under IEC 62061. Stocking the JZNC-YSU01-1E as an interim replacement allows production continuity while the full controller upgrade is planned and budgeted. Additionally, the JZNC-YBK01-1E battery backup unit should be replaced concurrently to protect robot program memory during the board swap procedure.

Retrofit Guidance FAQ

Q: Will replacing the JZNC-YSU01-1E require re-teaching the robot program?
No. Robot job programs, tool data, and coordinate system settings are stored on the CPU and memory boards, not the safety unit. A direct board swap does not affect stored programs. However, safety parameter files (e.g., speed limits, zone settings) should be verified and re-confirmed after replacement as a standard commissioning step.

Q: Is the wiring harness compatible between DX100 and DX200 safety units?
The JZNC-YSU01-1E is designed for both DX100 and DX200 controllers using the same internal connector layout. No wiring modification is required for a like-for-like replacement within the same controller generation. Cross-generation migration (e.g., DX100 to DX200 full controller swap) requires a full wiring and parameter review.

Q: What alarms indicate a failed safety unit?
Common DX-series alarms associated with safety board failure include ALARM 4107 (Safety Board Communication Error), ALARM 4108 (Safety I/O Fault), and ALARM 0050 (E-Stop Board Fault). If these alarms persist after resetting and verifying external E-stop wiring, the JZNC-YSU01-1E is the primary suspect.

Q: Can this unit be used in a servo-off or collaborative robot cell?
The JZNC-YSU01-1E is designed for standard Motoman DX100/DX200 industrial robot controllers. It is not compatible with HC-series collaborative robot controllers, which use a different safety architecture. For HC10 or HC20 applications, a different safety board part number is required.

Q: How long does installation take?
A trained YASKAWA service technician or qualified automation engineer can complete the board swap in 30–60 minutes under controlled conditions. Allow additional time for safety parameter verification, E-stop circuit testing, and a supervised test cycle before returning the robot to production.

Q: Is this compatible with external safety PLCs (e.g., SICK, Pilz, Omron)?
The JZNC-YSU01-1E manages the internal safety bus of the DX controller. External safety PLC connections are made through the controller’s I/O terminal block, not through the safety board directly. Replacing the safety unit does not affect external safety PLC wiring or logic, provided the I/O interface board (JZNC-YIU01-1E) is intact.

Warranty Assurance

Every JZNC-YSU01-1E unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each board undergoes a functional inspection including visual examination for component damage, connector integrity verification, and where applicable, bench-level power-on testing. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault. Our after-sales response target is within 24 business hours of a warranty claim submission. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our team to arrange priority handling.

We maintain stock of JZNC-YSU01-1E and related DX-series components to support same-week dispatch for urgent orders. Standard international shipping from Xiamen, China covers major industrial regions including Southeast Asia, the Middle East, Europe, and the Americas. Express courier options (DHL, FedEx) are available for time-critical downtime recovery orders.

For volume procurement, spare-parts program pricing, or OEM/MRO supply agreements, contact our industrial automation team directly. We support procurement teams, maintenance contractors, and system integrators with documented part sourcing, test reports, and customs documentation as required.
