Yaskawa JZNC-XRK01D-1XCP01C+CPS-150F Replacement for NX100

Product Overview

Yaskawa JZNC-XRK01D-1XCP01C+CPS-150F Replacement for NX100: Seamless Transition & Legacy System Upgrade

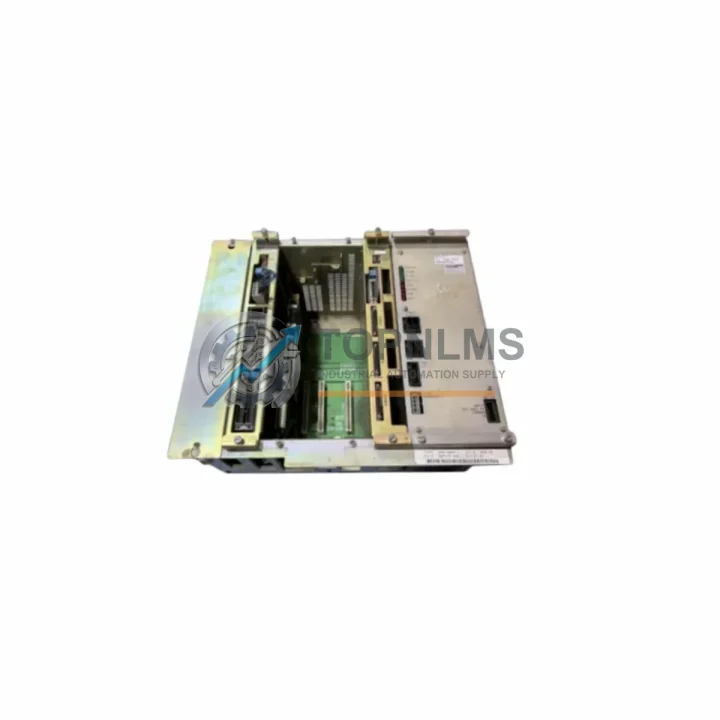

The Yaskawa JZNC-XRK01D-1XCP01C+CPS-150F is the core controller assembly for the Motoman NX100 robot controller platform, integrating the main CPU board (JZNC-XRK01D-1XCP01C) with the dedicated power supply unit (CPS-150F) into a single, field-replaceable module. As Yaskawa progressively transitions its installed base toward the DX100 and YRC1000 controller generations, many facilities operating NX100-based Motoman UP, ES, HP, and MA series robots face the challenge of sourcing reliable replacement assemblies to extend system life or execute a controlled migration. This product page addresses both scenarios: direct drop-in replacement for failed NX100 controller cores and structured upgrade planning for facilities ready to modernize.

Whether your production line relies on a single Motoman UP6 arc welding cell or a multi-robot palletizing system built around the NX100 platform, unplanned downtime caused by a failed controller core is a critical operational risk. TOPNLMS maintains verified stock of the JZNC-XRK01D-1XCP01C+CPS-150F assembly to support emergency replacement, scheduled maintenance, and spare-parts inventory programs for industrial customers worldwide.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NX100 controller core replacement or migration involves more than swapping the JZNC-XRK01D-1XCP01C+CPS-150F assembly. Field engineers consistently identify a set of companion components that must be verified, tested, or replaced concurrently to ensure system stability and minimize re-commissioning time.

The JZNC-XIU01 I/O interface board, mounted within the NX100 cabinet, handles all discrete input and output signals between the controller and the robot cell peripherals — safety gates, conveyor interlocks, weld start signals, and gripper controls. When replacing the controller core, inspecting and if necessary replacing the JZNC-XIU01 eliminates a common source of intermittent faults that can be misattributed to the new CPU board. Similarly, the JZNC-XRK01D-1XIO01 robot I/O board governs the internal signal routing between the controller backplane and the manipulator harness connector — a component that experiences wear in high-cycle applications such as spot welding and press tending.

Communication continuity is equally critical. Facilities using DeviceNet fieldbus for PLC-to-robot coordination — typically via a Yaskawa JZNC-XEW01 DeviceNet option board — must confirm that the replacement controller core retains the correct node address and baud rate settings stored in the original unit. For sites using Ethernet connectivity for remote monitoring or INFORM job transfer, the optional Ethernet board configuration must be re-applied after the core swap. If your facility is using a Profibus-DP option board (JZNC-XPB01) for integration with a Siemens S7 or similar PLC, the GSD file and slave address must be re-verified post-installation.

The CPS-150F power supply, bundled in this assembly, feeds the NX100 controller backplane. In aging systems, the servo amplifier units — typically CACR-SR series servo packs for UP6, UP20, or HP20 manipulators — should be inspected for capacitor degradation, as a failing servo pack can place abnormal load on the controller power bus and shorten the life of a newly installed CPS-150F. Proactive replacement of suspect servo packs alongside the controller core is a best practice for facilities targeting 3–5 years of extended NX100 service life.

For facilities executing a full migration from NX100 to the YRC1000 platform, the process involves new manipulator harness adapters, updated INFORM III job conversion, and replacement of the teach pendant with the YRC1000 Smart Pendant or standard pendant. The YRC1000 controller uses a completely different backplane architecture and is not a drop-in replacement for the NX100 cabinet — however, the manipulator mechanical structure of many Motoman UP, HP, and MA series robots is retained, making the YRC1000 a viable long-term upgrade path when the NX100 controller reaches end of supportable life.

Finally, for sites that need to maintain NX100 operation during the transition period, maintaining a spare JZNC-XRK01D-1XCP01C+CPS-150F assembly on the shelf — alongside a current CF card backup of all robot jobs, system parameters, and tool calibration data — is the most effective strategy for achieving sub-4-hour recovery time in the event of an unplanned controller failure.

Retrofit Guidance FAQ

Q: Can I replace the JZNC-XRK01D-1XCP01C+CPS-150F without re-teaching the robot?
A: Yes, provided you have a complete CF card backup of the robot’s jobs, system parameters (S1CxG files), and tool/user coordinate data taken from the original controller before failure. After installing the replacement assembly, restore the backup via the teach pendant’s File Manager. If the original controller failed without a prior backup, TOPNLMS can advise on parameter reconstruction from robot model defaults.

Q: Is the wiring harness between the NX100 cabinet and the manipulator compatible with the replacement core?
A: Yes. The JZNC-XRK01D-1XCP01C+CPS-150F replacement uses the same backplane connector layout as the original NX100 controller core. No harness modifications are required for a like-for-like replacement within the same NX100 cabinet.

Q: What communication protocols does the NX100 support, and are they preserved after replacement?
A: The NX100 natively supports RS-232C and optional DeviceNet, Ethernet, and Profibus-DP via plug-in option boards. The option boards are separate from the controller core assembly and remain in the cabinet during a core swap. Protocol settings stored on the option boards are preserved; however, IP addresses and node IDs stored in the CPU board’s non-volatile memory must be re-entered after replacement.

Q: Will the replacement core fit in my existing NX100 cabinet without modification?
A: The JZNC-XRK01D-1XCP01C+CPS-150F is designed for the standard NX100 controller cabinet. It occupies the same physical slot and uses the same mounting hardware as the original assembly. No cabinet modifications are required.

Q: How do I verify the software version compatibility of the replacement unit?
A: The NX100 system software version is stored on the CF card, not in the controller core hardware. As long as the CF card from the original system (or a backup) is used with the replacement core, the software version is maintained. TOPNLMS can provide units pre-loaded with specific NX100 software versions upon request.

Q: Can this assembly be used with Motoman HP20, UP20, or MA1400 manipulators?
A: The NX100 controller platform supports a range of Motoman manipulators including the UP6, UP20, HP20, HP6, MA1400, and ES165 series, among others. Compatibility depends on the specific robot model file (RC file) loaded on the CF card. Please confirm your manipulator model when ordering to ensure the correct RC file is supplied.

Warranty Assurance

Every Yaskawa JZNC-XRK01D-1XCP01C+CPS-150F assembly shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our warranty program is designed specifically for industrial customers who cannot afford ambiguity in their spare-parts supply chain.

Pre-shipment testing: Each unit undergoes power-on functional verification, backplane connector inspection, and CPS-150F output voltage testing before dispatch. Units that do not meet Yaskawa’s original specification are quarantined and not offered for sale.

Warranty coverage: The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and DOA (dead on arrival) scenarios. It covers both the JZNC-XRK01D-1XCP01C CPU board and the CPS-150F power supply as an integrated assembly.

Replacement support: In the event of a warranty claim, TOPNLMS will ship a verified replacement unit within 3–5 business days of claim confirmation. For customers with critical production requirements, expedited replacement options are available — contact our sales team to discuss advance-exchange arrangements.

After-sales response: Our technical team is available via email and phone to support installation, parameter restoration, and commissioning questions throughout the warranty period. We maintain records of all shipped units to facilitate rapid claim processing.

Procurement assurance: TOPNLMS issues a formal invoice with serial number documentation for every unit sold, supporting your internal asset management and warranty tracking requirements. Export documentation, including commercial invoice and packing list, is provided for all international shipments.
