Yaskawa JANCD-YSF21-E Replacement/Upgrade for NX100 DX200: Smooth Transition & Legacy System Compatibility

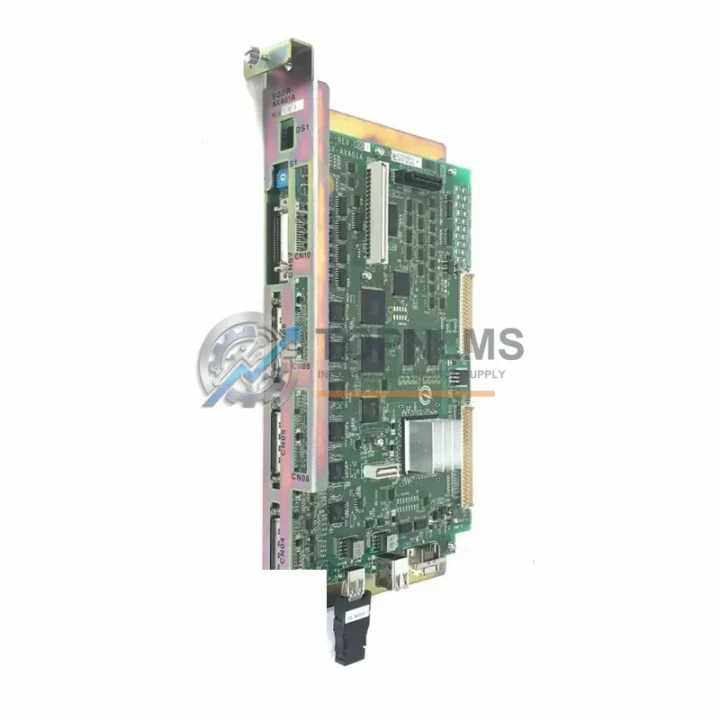

The Yaskawa JANCD-YSF21-E is the dedicated safety control board for Yaskawa Motoman NX100 and DX200 robot controller platforms. As production lines age and original safety boards reach end-of-life or suffer field failures, sourcing a verified, drop-in replacement becomes critical to minimizing unplanned downtime. TOPNLMS maintains ready stock of the JANCD-YSF21-E to support urgent replacement and planned upgrade projects across automotive, electronics, food processing, and general manufacturing environments.

Whether you are migrating from a legacy NX100 controller to a DX200 platform, or simply replacing a failed safety board within an existing system, the JANCD-YSF21-E is engineered for direct compatibility with the original wiring harness, backplane connector, and controller chassis. No rewiring, no firmware re-flashing of peripheral axes, and no modification to the teach pendant or operator panel is required in a like-for-like replacement scenario. This makes the JANCD-YSF21-E the lowest-risk, fastest-path solution for restoring robot safety system integrity on the shop floor.

For facilities managing a fleet of Yaskawa Motoman robots — particularly those running mixed NX100 and DX200 controllers — the JANCD-YSF21-E provides a unified spare part that covers both platforms, simplifying inventory management and reducing the number of unique safety board SKUs that maintenance teams must stock.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful JANCD-YSF21-E replacement is rarely a single-board swap in isolation. In practice, field engineers replacing the safety board on an NX100 or DX200 controller will often simultaneously inspect or replace adjacent components to ensure system integrity and avoid repeat downtime events.

The JZRCR-NTU30B-1 — the NX100 controller CPU board — is the most common companion replacement. When a safety board fails due to power surge or environmental contamination, the CPU board is frequently affected as well. Replacing both the JANCD-YSF21-E and the JZRCR-NTU30B-1 together restores the controller to a fully verified baseline and eliminates the risk of a secondary failure shortly after the initial repair.

Servo drive integrity should also be confirmed during any safety board replacement. The SGDR-SDA350A01B and SGDR-SDA710A01B servo drive units interface directly with the safety board’s emergency stop and servo-on signal chains. If the safety board failure was caused by an upstream fault in the servo system, replacing the JANCD-YSF21-E without inspecting these drives may result in a repeat failure. TOPNLMS stocks both servo drive models for same-project sourcing.

For systems where the teach pendant cable or pendant unit itself has been damaged — a common occurrence in high-cycle welding or palletizing cells — the JZRCR-YPP01-1 teach pendant and its associated cable assembly should be inspected. The safety board communicates directly with the pendant’s emergency stop circuit, and a degraded pendant cable can cause intermittent safety faults that are misdiagnosed as board failures.

In DX200 platform upgrades from NX100, the JANCD-YCP21-E CPU board and JANCD-YIF01-E interface board are typically part of the migration bill of materials. These boards work in conjunction with the JANCD-YSF21-E to form the complete DX200 controller logic stack. Sourcing all three boards from a single supplier ensures cross-board firmware compatibility and simplifies the incoming inspection process.

Where the control cabinet includes a JZNC-YRK01-1E robot controller rack or a JZRCR-YPU01-1 power supply unit, these should be visually inspected for capacitor bulge, corrosion, or burn marks before the replacement JANCD-YSF21-E is installed. A degraded rack or power supply will shorten the service life of any new board installed into the system.

For facilities integrating Yaskawa robots into broader PLC-based automation architectures — such as Siemens S7-300/S7-400 or Allen-Bradley ControlLogix systems — the safety board’s external safety I/O terminals connect to the PLC’s safety relay or safety PLC module. Verifying the integrity of this interface, including terminal blocks, signal isolators, and safety relay modules, is a recommended step before commissioning the replacement board.

Retrofit Guidance FAQ

Q: Can the JANCD-YSF21-E be installed without reprogramming the robot controller?
A: Yes. In a like-for-like replacement on the same controller platform (NX100 or DX200), the JANCD-YSF21-E is a direct hardware swap. Robot job files, system parameters, and axis configurations stored on the controller’s CF card or internal memory are not affected by the safety board replacement. No teach pendant reprogramming is required.

Q: Is the JANCD-YSF21-E compatible with both NX100 and DX200 controllers?
A: Yes. The JANCD-YSF21-E is used across both the NX100 and DX200 Yaskawa Motoman controller platforms. The board’s backplane connector, power requirements, and internal communication bus are identical across both platforms, making it a dual-platform compatible replacement.

Q: What wiring changes are required during installation?
A: None, in a standard replacement scenario. The existing safety I/O harness, emergency stop wiring, and servo-on signal cables connect to the same terminal positions on the JANCD-YSF21-E as on the original board. Always verify wiring against the controller’s electrical schematic before powering up.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation, perform a controller power-on self-test (POST) and confirm that no safety-related alarms are active on the teach pendant. Execute a manual brake release test on each axis and verify that the emergency stop circuit opens and closes correctly. Log the alarm history before and after replacement for maintenance records.

Q: What is the lead time for the JANCD-YSF21-E from TOPNLMS?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. Express international shipping via DHL, FedEx, or UPS is available for urgent replacement projects. Contact us at [email protected] or +86 18359293191 for real-time stock confirmation.

Q: Can TOPNLMS supply multiple boards for a fleet replacement project?
A: Yes. TOPNLMS supports both single-unit urgent replacements and multi-unit fleet procurement. Volume pricing is available for orders of 3 or more units. Please contact our sales team with your project quantity and timeline for a formal quotation.

Q: What communication protocols does the JANCD-YSF21-E support?
A: The JANCD-YSF21-E operates on Yaskawa’s internal proprietary safety bus within the NX100/DX200 controller chassis. External safety I/O interfaces with the plant-level safety PLC or safety relay via hardwired terminals — no fieldbus protocol change is required when replacing the board.

Q: Is physical modification to the control cabinet required?
A: No. The JANCD-YSF21-E shares the identical form factor and mounting slot dimensions as the original safety board in both NX100 and DX200 controller cabinets. No drilling, bracket modification, or DIN rail repositioning is required.
