YASKAWA JAMMC-SV150A Replacement for Sigma Servo Drive

Product Overview

YASKAWA JAMMC-SV150A Replacement for Sigma Servo Drive: Smooth Transition & Legacy System Compatibility

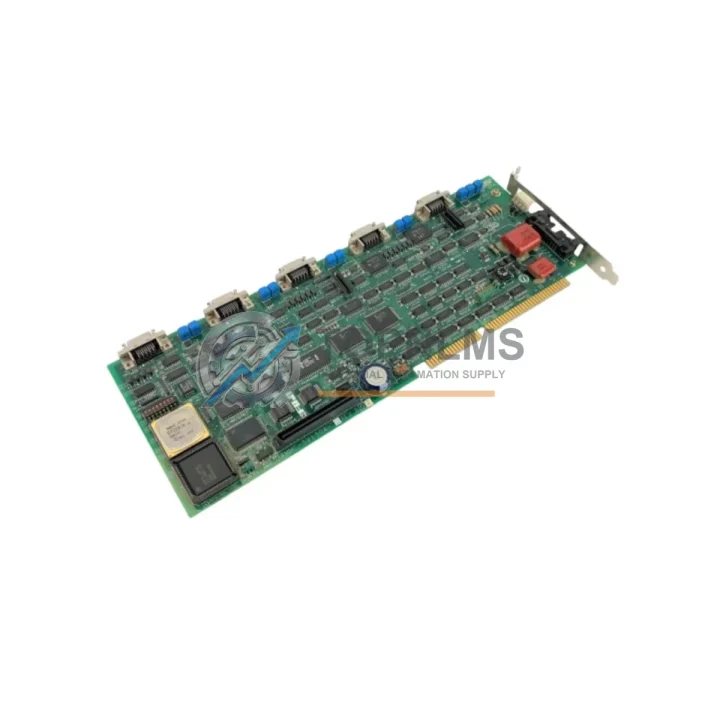

The YASKAWA JAMMC-SV150A is a servo control PCB (printed circuit board) designed for the YASKAWA Sigma-series AC servo drive platform. As legacy Sigma-II and early Sigma-V servo amplifiers reach end-of-life and original control boards become increasingly difficult to source, the JAMMC-SV150A serves as the critical replacement component that allows engineers and maintenance teams to restore full servo drive functionality without replacing the entire drive unit or redesigning the control cabinet.

For facilities running YASKAWA SGDH-series or SGDA-series servo amplifiers — common in CNC machining centers, injection molding machines, packaging lines, and robotic assembly cells — a failed control board typically means unplanned downtime measured in days, not hours. The JAMMC-SV150A board directly addresses this by providing a drop-in replacement that preserves existing wiring, encoder feedback connections, and drive parameter configurations, allowing maintenance personnel to restore operation with minimal re-commissioning effort.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful JAMMC-SV150A board replacement is rarely a standalone action — it is part of a broader servo system restoration or modernization effort. In practice, maintenance engineers working on YASKAWA Sigma-series drives will often need to address adjacent components in the same control cabinet or servo amplifier rack at the same time.

When the JAMMC-SV150A control board fails, it is common to simultaneously inspect the YASKAWA JUSP-OP05A-1 digital operator panel, which provides the interface for parameter reading and fault code diagnosis during commissioning. If the drive’s power stage has also been affected, the YASKAWA JUSP-RG08H regenerative resistor unit or the YASKAWA JUSP-RA04 regenerative discharge resistor may require inspection or replacement alongside the control board swap.

For facilities migrating from MECHATROLINK-II to MECHATROLINK-III architecture as part of a broader motion control upgrade, the YASKAWA SGDV-series servo amplifiers (Sigma-V) represent the natural upgrade path. In these scenarios, the JAMMC-SV150A replacement extends the operational life of existing Sigma-II drives while the broader migration plan is executed in phases, avoiding the need for a full simultaneous cutover that would require extended production downtime.

Communication infrastructure is another key consideration. Facilities using YASKAWA MP2300 or MP2600 machine controllers connected to Sigma-II drives via MECHATROLINK-II will find that the JAMMC-SV150A replacement preserves the existing motion bus topology without requiring controller-side reconfiguration. Similarly, if the installation includes a YASKAWA JEPMC-BU2300 MECHATROLINK-II communication module in the controller rack, no changes to the network configuration are needed after the board swap.

For installations where the servo drive is paired with a YASKAWA SGMGH or SGMSH series servo motor, the encoder cable and motor power cable connections remain unchanged after the JAMMC-SV150A replacement, as the board swap does not alter the CN2 encoder interface or the motor output terminals. This is particularly valuable in applications where cable routing through cable trays or conduit makes rewiring a time-consuming and costly operation.

In control cabinets where space is constrained, the JAMMC-SV150A’s identical form factor eliminates the need for any mechanical modification to the drive chassis or cabinet DIN rail layout. This is a significant advantage over full drive replacement scenarios, where a new SGDV or SGDVE series amplifier may have different mounting dimensions requiring panel modifications and new cable assemblies.

Retrofit Guidance FAQ

Q: Do I need to rewire the drive after replacing the JAMMC-SV150A board?
A: No. The JAMMC-SV150A uses the same connector layout as the original OEM board. All existing wiring — including CN1 (I/O signals), CN2 (encoder feedback), and CN3 (serial communication) — connects directly to the replacement board without modification.

Q: Will my existing servo parameters be retained after the board swap?
A: The original board’s EEPROM stores drive parameters. After replacing the board, parameters must be reloaded using the YASKAWA SigmaWin+ software or the JUSP-OP05A-1 digital operator. We recommend backing up parameters from the original board before replacement if the board is still partially functional.

Q: Is the JAMMC-SV150A compatible with MECHATROLINK-II motion networks?
A: Yes. The replacement board retains MECHATROLINK-II communication compatibility, ensuring that existing motion controller configurations — including axis assignments, electronic gear ratios, and homing sequences — remain valid after the swap.

Q: What are the physical installation requirements?
A: Standard ESD (electrostatic discharge) precautions are required. The drive must be fully powered down and the DC bus capacitors discharged before board removal. The replacement board installs in the same position using the same mounting hardware as the original.

Q: Can this board be used in a Sigma-V (SGDV) drive chassis?
A: The JAMMC-SV150A is designed for the Sigma-II (SGDH) drive platform. For Sigma-V drives, please confirm the specific board part number required for your SGDV amplifier model before ordering.

Q: How long does commissioning take after the board replacement?
A: For experienced maintenance personnel with parameters backed up, commissioning typically takes 30–90 minutes, including parameter reload, JOG test, and alarm verification. First-time replacements without a parameter backup may require additional time for parameter re-entry and tuning verification.

Warranty Assurance

Every YASKAWA JAMMC-SV150A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional inspection to verify board integrity and confirm the absence of physical damage, corrosion, or component failure. This pre-shipment check is designed to ensure that the replacement board arrives ready for installation, reducing the risk of secondary delays caused by a defective replacement part.

In the event that a board is found to be defective upon arrival or fails within the warranty period under normal operating conditions, TOPNLMS provides replacement support with priority processing. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with international express shipping available to minimize the impact on production schedules.

For procurement teams and MRO (maintenance, repair, and operations) buyers, TOPNLMS issues a commercial invoice, packing list, and certificate of conformity with each shipment. These documents support customs clearance for international orders and provide the traceability records required by quality management systems operating under ISO 9001 or equivalent frameworks.

Stock availability is maintained for the JAMMC-SV150A and related Sigma-series components. Orders confirmed before 14:00 CST on business days are processed for same-day dispatch. Express delivery options are available for urgent breakdown situations where minimizing mean time to repair (MTTR) is the primary procurement objective.
