YASKAWA HW9381634-A Replacement Solution for Motoman: Smooth Transition & Legacy System Compatibility

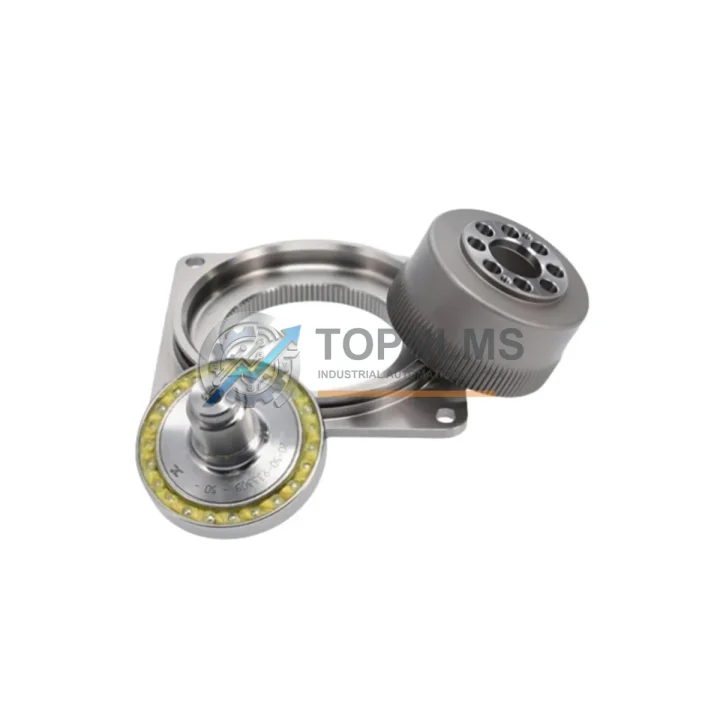

When your Motoman industrial robot line faces unplanned downtime due to a failed or worn wrist joint speed reducer, every hour of production loss translates directly into cost. The YASKAWA HW9381634-A wrist joint speed reducer is the precision-engineered 6th-axis drive component used across a wide range of Motoman robot arms — including the HP, UP, and SK series — and sourcing a verified replacement quickly is critical to restoring full automation capacity.

At TOPNLMS, we stock the HW9381634-A as a direct drop-in replacement for end-of-life, worn, or damaged units. Whether you are performing a scheduled overhaul, responding to an emergency breakdown, or executing a planned robot refurbishment program, this reducer delivers the torque accuracy, gear ratio consistency, and mechanical interface compatibility your Motoman arm demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HW9381634-A replacement is rarely a single-component job. In practice, field engineers performing a 6th-axis wrist reducer swap on a Motoman robot will often inspect and replace adjacent components to ensure the entire wrist assembly returns to full specification. During the disassembly process, it is common to simultaneously service the HW9381635-A 5th-axis reducer if backlash or vibration has been detected on the B-axis, since both units share the same wrist housing access procedure.

The servo motor driving the 6th axis — typically a SGMRS or SGMCS series AC servo motor — should be inspected for bearing wear and encoder integrity at the same time. If the encoder feedback signal has been degraded, replacing the motor alongside the reducer eliminates the risk of a second unplanned shutdown within weeks of the initial repair. The YASKAWA JZRCR-YPP21-1 or equivalent servo amplifier card within the YRC1000 or DX200 controller cabinet should also be verified for fault history before returning the robot to production.

For facilities running multiple Motoman arms on a shared controller network, the YRC1000 controller communicates axis position data via EtherNet/IP or DeviceNet depending on the system generation. Confirming that the axis parameter file (AXS file) correctly reflects the reducer’s gear ratio after replacement is a mandatory commissioning step — this is handled through the Motoman MotoPlus SDK or the pendant-based axis calibration routine, not through external PLC reprogramming.

In retrofit scenarios where an older NX100 or XRC controller is still in service, the mechanical replacement procedure for the HW9381634-A remains identical, but the teach pendant calibration sequence differs. Engineers should reference the robot’s maintenance manual for the specific mastering procedure applicable to their controller generation. If the facility is also upgrading from NX100 to YRC1000 as part of a broader modernization program, the wrist reducer replacement can be scheduled concurrently to minimize total downtime.

Ancillary components commonly sourced alongside the HW9381634-A include wrist seal kits (O-rings and lip seals for the 5th and 6th axis housing), Kluber Isoflex NBU 15 grease for re-lubrication of the harmonic drive assembly, and HW8100-1 or equivalent encoder cables if the existing harness shows signs of insulation fatigue from repeated wrist rotation cycles. For facilities maintaining a spare parts inventory, stocking one HW9381634-A unit per robot cell is standard practice given the lead times associated with OEM procurement channels.

Retrofit Guidance FAQ

Q: Does replacing the HW9381634-A require robot reprogramming?
A: No. The HW9381634-A is a mechanical drop-in replacement. The gear ratio is identical to the original unit, so no axis parameter changes are required in the YRC1000 or DX200 controller. However, zero-point mastering (robot calibration) must be performed after any wrist reducer replacement to restore positional accuracy. This is done via the teach pendant using the standard Motoman mastering procedure.

Q: Is the wiring harness compatible with the replacement unit?
A: Yes. The HW9381634-A uses the same mechanical interface and does not alter the encoder cable routing or power connector positions. Existing wiring harnesses can be reused without modification.

Q: What communication protocols are affected during replacement?
A: None. The speed reducer is a purely mechanical component. EtherNet/IP, DeviceNet, or PROFIBUS communication between the YRC1000 controller and the plant PLC or SCADA system is unaffected by the reducer replacement. The robot can be returned to the network immediately after mastering is complete.

Q: Will the HW9381634-A fit in the same physical space as the original unit?
A: Yes. The replacement unit has identical envelope dimensions and bolt pattern to the original OEM part. No modifications to the robot arm structure, cable management brackets, or end-effector mounting are required.

Q: Can this reducer be used during a controller upgrade from NX100 to YRC1000?
A: Yes. The mechanical specification of the HW9381634-A is controller-agnostic. It is compatible with NX100, XRC, DX200, and YRC1000 controller generations. If a controller upgrade is being performed simultaneously, the reducer replacement can be completed as part of the same maintenance window.

Q: What is the typical installation time for a field replacement?
A: For an experienced Motoman maintenance technician, the wrist reducer replacement including disassembly, installation, re-greasing, and mastering typically requires 4–8 hours depending on the robot model and site conditions.

Warranty Assurance

Every YASKAWA HW9381634-A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment inspection to verify mechanical integrity, dimensional conformance, and packaging condition. Units showing any signs of damage, non-conformance, or cosmetic defects are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. Warranty claims are assessed within 2 business days of receipt of the defective unit and supporting documentation (installation photos, fault description, and order reference).

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice upon request. Export from our Xiamen warehouse is available via DHL, FedEx, UPS, or sea freight depending on order volume and destination. Lead time for in-stock units is typically 3–7 business days to most international destinations.

TOPNLMS maintains a standing inventory of high-demand Motoman spare parts to support emergency procurement requirements. If your facility operates under a planned maintenance schedule, we recommend establishing a blanket order or preferred supplier agreement to ensure priority allocation during peak demand periods.
