YASKAWA HW9280707-F Original Industrial Spare NX100 Compatible: Securing System Stability in Robot-Driven Production Lines

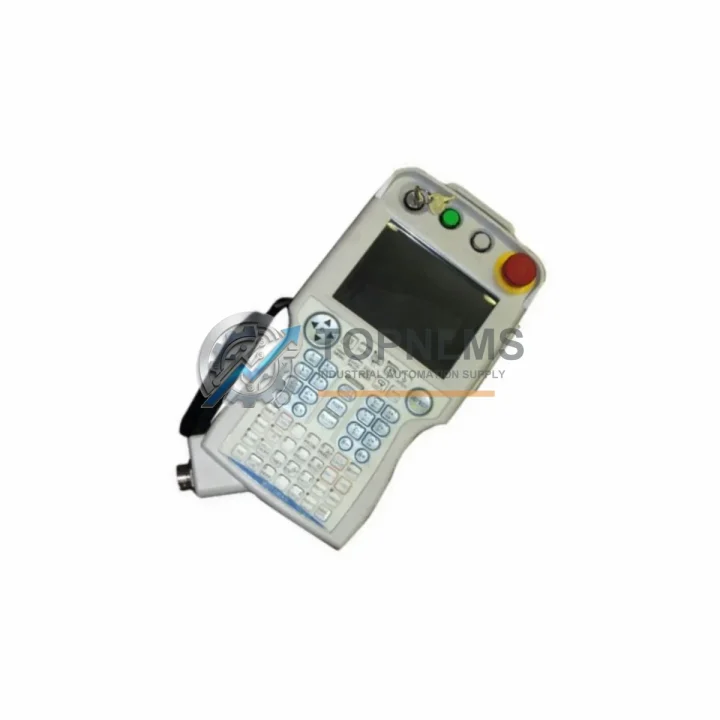

In any facility running YASKAWA NX100 or DX100 robot controllers, the teach pendant is the single most operator-critical interface component in the entire cell. The YASKAWA HW9280707-F — also referenced under part numbers JZRCR-NPP01B-1, JZRCR-NPP01-1, and JZRCR-YPP01-1 — is the original OEM teach pendant designed for these controller platforms. Sourced directly from verified supply channels, this unit is tested, inspected, and shipped ready for immediate field deployment.

For maintenance engineers managing aging robot fleets, securing a verified spare of the HW9280707-F is not a luxury — it is a risk mitigation decision. A failed or damaged teach pendant grounds the entire robot cell. With no backup unit on hand, even a minor cable fault or display failure can translate into hours or days of unplanned downtime. Stocking this pendant as a cold spare eliminates that exposure entirely.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for YASKAWA NX100 and DX100 robot cells extends well beyond the teach pendant itself. When scheduling a pendant inspection or replacement, maintenance teams should treat the intervention as an opportunity to audit the full controller cabinet and robot interface chain.

Begin with the controller power supply unit — the JZNC-NZU01 or equivalent NX100 power board. Voltage instability at the controller level is a leading cause of premature pendant display failure and erratic enable-switch behavior. If the power supply shows signs of capacitor aging or output ripple, replace it concurrently with the pendant to avoid a repeat fault within the same maintenance window.

Next, inspect the I/O module rack inside the controller cabinet. NX100 and DX100 systems rely on discrete I/O boards — such as the JANCD-NIO01 series — to process safety signals from the teach pendant’s emergency stop and enable switch. A degraded I/O board can mask pendant faults or generate false safety trips. Verifying I/O board integrity during a pendant swap is standard practice in high-uptime facilities.

The pendant cable assembly is the most mechanically stressed component in the teach pendant system. Repeated coiling, door pinching, and operator handling cause insulation fatigue at the strain relief points. When replacing the HW9280707-F pendant, always inspect the full cable run and replace the cable harness if any abrasion, kinking, or connector pin corrosion is detected. Stocking a spare cable assembly alongside the pendant unit is strongly recommended.

For cells where the robot interfaces with external PLCs or safety controllers — common in welding, palletizing, and assembly lines — the communication module connecting the NX100 to the line PLC (often via DeviceNet, Profibus, or EtherNet/IP) should be checked for firmware currency and connector seating. A loose communication module can cause intermittent robot faults that are incorrectly diagnosed as teach pendant issues.

The servo amplifier boards within the DX100 cabinet — SGDV or CACR series — should be visually inspected for dust accumulation and cooling fan operation during any planned maintenance window. Overheating servo drives are a common secondary failure mode in cells where the primary fault was a teach pendant or I/O issue that caused repeated emergency stops and restart cycles.

Finally, review the backup battery status for the NX100/DX100 controller memory. YASKAWA controllers use lithium backup batteries (typically JZRCR-NPP01 series battery packs) to retain job programs and system parameters. A battery nearing end-of-life during a teach pendant replacement event is an avoidable risk — replace it proactively. Similarly, confirm that the teach pendant enable switch (deadman switch) spring tension and contact resistance are within specification before returning the cell to production.

Strategic Replacement Solutions

The YASKAWA HW9280707-F is a direct OEM replacement for all NX100 and DX100 controller installations. It eliminates the compatibility risk associated with aftermarket or refurbished pendants, which may not fully support all NX100 safety interlock logic or DX100 firmware revisions.

For facilities managing mixed fleets — NX100 cells alongside older XRC or newer YRC1000 controllers — maintaining a dedicated HW9280707-F spare for the NX100/DX100 population is the correct inventory strategy. Cross-platform pendant substitution is not supported by YASKAWA and introduces unacceptable safety and certification risk in regulated production environments.

Procurement teams should note that NX100 and DX100 controllers are mature platforms. OEM spare availability for these systems will tighten over time as YASKAWA phases production toward YRC1000 and YRC1000micro. Securing verified HW9280707-F units now — while supply is accessible — is a sound lifecycle management decision that protects capital investment in existing robot assets and defers costly controller upgrades.

Each unit shipped from TOPNLMS undergoes functional inspection prior to dispatch. Units are packaged in anti-static protective materials with full labeling. Standard lead time is 3–7 business days for in-stock units, with expedited options available for urgent maintenance requirements.

Support FAQ

Q1: Is the HW9280707-F compatible with both NX100 and DX100 controllers?
Yes. The HW9280707-F is the original OEM teach pendant for both the NX100 and DX100 YASKAWA controller platforms. It is also cross-referenced as JZRCR-NPP01B-1, JZRCR-NPP01-1, and JZRCR-YPP01-1. Always verify your controller model plate before ordering to confirm platform compatibility.

Q2: What pre-shipment testing is performed on each unit?
Each HW9280707-F unit is inspected for physical integrity, connector pin condition, display function, enable switch tactile response, and emergency stop circuit continuity before dispatch. Units that do not pass inspection are not shipped. A 12-month warranty from the date of shipment covers defects in materials and workmanship.

Q3: How should we manage teach pendant inventory for a multi-robot NX100/DX100 facility?
For facilities operating 5 or more NX100/DX100 robots, maintaining a minimum of one HW9280707-F cold spare per 5-robot group is the recommended baseline. High-throughput or 24/7 operations should consider a 1:3 spare ratio. Teach pendants in active use should be inspected every 6 months for cable wear, connector corrosion, and enable switch degradation.

Q4: Can the HW9280707-F be used as a direct field swap without controller reconfiguration?
Yes. As an OEM original part, the HW9280707-F is a plug-and-play replacement on NX100 and DX100 controllers. No firmware flashing or parameter reconfiguration is required. Power down the controller, disconnect the existing pendant, connect the replacement unit, and perform a standard safety check before resuming production. Always follow your facility’s lockout/tagout procedures during the swap.
