YASKAWA HW0174949-A Original Industrial Spare MPL300 Compatible

Product Overview

YASKAWA HW0174949-A Original Industrial Spare MPL300 Compatible: System Stability and Industrial Spare Maintenance Value

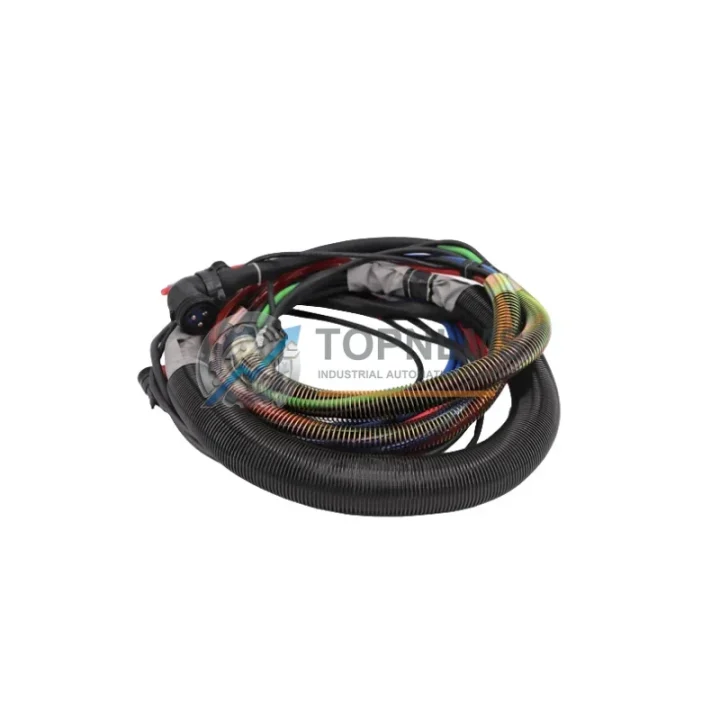

The YASKAWA HW0174949-A is an original internal robot harness engineered specifically for the MPL300 controller platform, serving as the critical signal and power interconnect between the JANCD-YIO22-E I/O module and the JANCD-YBK21-3E backplane unit. In high-cycle manufacturing environments — automotive body shops, arc welding cells, material handling lines, and precision assembly stations — the integrity of internal wiring harnesses is a foundational element of system uptime. A degraded or failed harness introduces intermittent faults, erratic axis behavior, and communication errors that are notoriously difficult to diagnose without a verified replacement on hand. Stocking the HW0174949-A as a dedicated spare eliminates this diagnostic ambiguity and dramatically reduces mean time to repair (MTTR).

YASKAWA’s MPL300 controller remains widely deployed across global production facilities, and the availability of original-specification harnesses is increasingly constrained as the platform matures. Sourcing a genuine HW0174949-A now — rather than during an unplanned stoppage — is a straightforward risk-mitigation decision that experienced maintenance engineers consistently prioritize. This harness is manufactured to YASKAWA’s original electrical and mechanical tolerances, ensuring full compatibility with the MPL300 cabinet’s routing channels, connector housings, and signal integrity requirements without any field modification.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance (PM) program for the MPL300 controller cabinet should treat the HW0174949-A harness as one element within a broader inspection and replacement cycle. During scheduled downtime windows — typically aligned with quarterly or semi-annual production shutdowns — maintenance teams should conduct a systematic review of all internal wiring and interconnect components. Begin with a visual inspection of the harness routing for chafing, pinch points near cabinet doors, and connector seating. Simultaneously, inspect the JANCD-YIO22-E I/O module for LED fault indicators and verify that all field wiring terminals are torqued to specification.

The backplane unit JANCD-YBK21-3E should be checked for secure module seating and any signs of thermal discoloration on the PCB edge connectors. While the cabinet is open, it is sound practice to inspect the JANCD-YCP21-2E CPU module for firmware version currency and battery backup status — a depleted CPU battery is a common cause of parameter loss after a power interruption. The JANCD-YSF21-E safety board and its associated wiring should be verified for continuity and correct grounding, as safety circuit faults can mask underlying harness degradation.

Power supply integrity is equally critical: the JZNC-YPS01-E power supply unit should be load-tested and its output voltages confirmed within tolerance before reassembling the cabinet. Servo amplifier modules such as the SGDV series drives connected downstream of the MPL300 controller should have their regenerative resistor connections and encoder feedback cables inspected at the same interval. For facilities running multi-robot cells, the JARCR-XFB01B field bus communication card and associated DeviceNet or PROFIBUS cabling should be included in the PM checklist, as communication harness degradation often presents as sporadic robot-to-PLC handshake failures rather than hard faults.

Maintaining a consolidated spare parts kit — including the HW0174949-A harness, a spare JANCD-YIO22-E module, a replacement JZNC-YPS01-E power supply, and a set of terminal block assemblies — allows a two-person maintenance team to complete a full MPL300 controller restoration within a single shift, minimizing production impact during unplanned events.

Strategic Replacement Solutions

The HW0174949-A is the direct OEM replacement for any degraded or failed internal harness within the MPL300 controller. Unlike aftermarket alternatives, this original-specification harness preserves the full signal integrity and EMC shielding characteristics that YASKAWA’s motion control algorithms depend on. Substituting a non-OEM harness risks introducing ground loops, impedance mismatches, or connector incompatibilities that can generate nuisance faults or, in worst cases, corrupt servo feedback signals and cause axis positioning errors.

For facilities managing aging MPL300 installations, a proactive harness replacement at the 8–10 year mark — regardless of visible condition — is a recognized best practice in industrial robot lifecycle management. Polymer insulation and connector contact plating degrade gradually under thermal cycling and vibration, and failure typically occurs without warning during high-demand production periods. Replacing the HW0174949-A on a scheduled basis, rather than reactively, converts an unpredictable failure mode into a controlled maintenance event with zero unplanned downtime.

This approach also supports system life extension strategies for facilities that have standardized on the MPL300 platform and wish to defer capital expenditure on new robot controllers. A fully restored MPL300 cabinet — with fresh harnesses, verified I/O modules, and a tested power supply — can reliably support continued production for an additional 5–8 years, delivering substantial ROI compared to a full controller replacement program.

Support FAQ

Q1: Is the HW0174949-A compatible with all MPL300 controller variants?
The HW0174949-A is designed for MPL300 controllers equipped with the JANCD-YIO22-E I/O module and JANCD-YBK21-3E backplane. If your MPL300 uses a different I/O or backplane configuration, please contact us with your full controller serial number and we will confirm compatibility before shipment.

Q2: What pre-shipment testing is performed on this harness?
Every HW0174949-A unit undergoes continuity testing across all conductors, insulation resistance verification, and physical connector integrity inspection prior to dispatch. A test report is available upon request for quality documentation purposes.

Q3: How should I manage spare harness inventory for a multi-robot facility?
For facilities operating 5 or more MPL300-based robots, we recommend maintaining a minimum of one HW0174949-A harness per 5 units as a standing spare. Harnesses should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a first-in, first-out basis to prevent storage-induced connector oxidation.

Q4: What is the warranty coverage and what does it include?
All HW0174949-A units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, connector failure under normal operating conditions, and insulation integrity. It does not cover damage resulting from incorrect installation, over-voltage events, or physical abuse. Warranty claims are processed within 5 business days of receiving the returned unit.
