YASKAWA DX100SRDA-SDB14A01A-E Original Industrial Spare DX100 Compatible

Product Overview

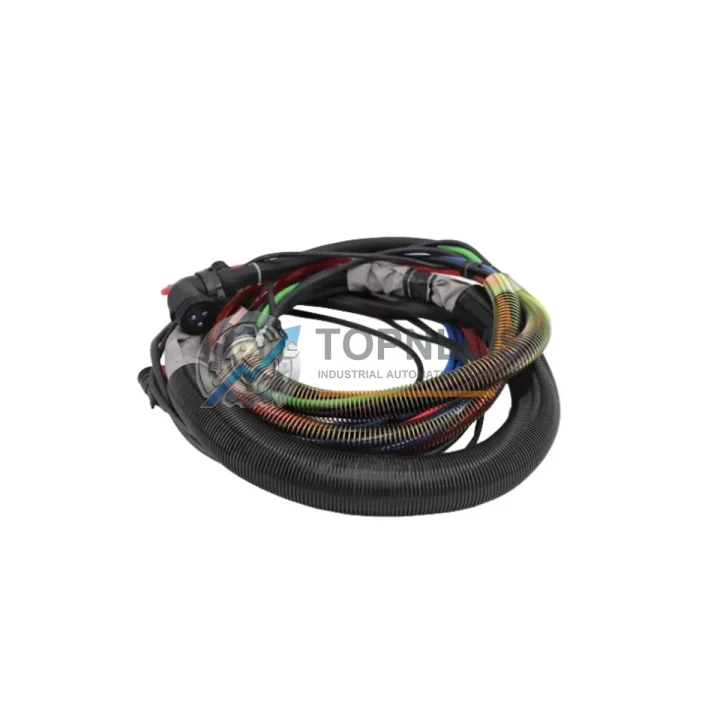

YASKAWA DX100SRDA-SDB14A01A-E Original Industrial Spare DX100 Compatible: System Stability Through Precision Wiring

In high-cycle robotic welding and handling environments, the integrity of internal wiring harnesses is a critical — and frequently overlooked — factor in overall system uptime. The YASKAWA DX100SRDA-SDB14A01A-E (cross-referenced as HW0270541-C, HW0380219-A, and PX2900 R/B) is an original-specification spot wiring harness engineered for the YASKAWA DX100 controller series. Sourced directly from verified supply channels, this harness is a factory-grade replacement that restores full electrical continuity and signal fidelity to your robotic cell without requiring system reconfiguration or software re-parameterization.

For maintenance engineers managing aging DX100-based robotic lines, sourcing a genuine wiring harness — rather than an aftermarket substitute — is the single most reliable way to eliminate intermittent faults, encoder signal degradation, and servo drive communication errors that are notoriously difficult to trace to their root cause. This part ships fully tested, individually inspected, and backed by a 12-month quality warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A wiring harness failure in a DX100 robotic cell rarely occurs in isolation. The mechanical stress, thermal cycling, and vibration that degrade the DX100SRDA-SDB14A01A-E harness affect the entire electrical ecosystem of the controller cabinet simultaneously. A disciplined preventive maintenance program should treat this harness replacement as a trigger event for a broader inspection cycle across the full DX100 control architecture.

When replacing this harness, maintenance teams should concurrently inspect the YASKAWA SRDA-SDB14A01A-E servo drive board, which interfaces directly with this harness and is subject to the same thermal and vibration loads. The DX100 power supply unit JZNC-YPS01-E should be load-tested at this interval, as voltage ripple from an aging PSU accelerates connector oxidation and insulation breakdown in downstream harnesses. The JZNC-YIU01-E I/O unit and associated terminal block assemblies within the controller cabinet should be visually inspected for discoloration, loose crimps, or corrosion — conditions that are often masked until a harness replacement exposes them.

For spot welding applications specifically, the weld controller interface cable and gun driver signal harness run in parallel routing paths and experience identical flex fatigue cycles. Proactive replacement of these cables during the same maintenance window eliminates a second unplanned shutdown within the following 6–12 months. The YASKAWA DX100 teach pendant cable JZRCR-YPP01-1 should also be inspected for jacket cracking and connector wear, as pendant cable failures are a leading cause of unplanned DX100 downtime.

At the system level, this is also an appropriate time to verify the condition of the JZNC-YRK01-1E robot control board, check battery backup modules for the encoder memory retention circuit, and confirm that all PROFIBUS or DeviceNet communication modules installed in the DX100 rack are seated correctly and free of connector corrosion. Facilities running multiple DX100 cells should consider stocking one spare harness per cell as a minimum buffer — the lead time risk on this component during peak production periods far outweighs the carrying cost of a single unit in the maintenance crib.

Strategic Replacement Solutions

The YASKAWA DX100 controller platform has been in active industrial deployment since the mid-2000s, and a significant installed base continues to operate in automotive body shops, general manufacturing, and material handling facilities worldwide. As YASKAWA transitions its newer installations to the YRC1000 and YRC1000micro platforms, the DX100 fleet enters a critical lifecycle phase: original spare parts availability narrows while the operational demand on aging hardware intensifies.

The DX100SRDA-SDB14A01A-E harness is a direct OEM-specification replacement that requires no firmware changes, no axis re-calibration, and no modification to existing cable routing. This is a significant operational advantage over aftermarket alternatives, which frequently introduce impedance mismatches or connector tolerance deviations that trigger nuisance alarms or, worse, intermittent servo faults that consume disproportionate diagnostic time.

For facilities managing a mixed fleet of DX100 and older NX100 or XRC controllers, establishing a consolidated spare parts inventory that covers harnesses, drive boards, and power supply modules across platforms is the most cost-effective strategy for reducing mean time to repair (MTTR). Sourcing original YASKAWA components through a verified distributor — rather than waiting for an OEM emergency order during a production stoppage — typically reduces downtime from days to hours.

This part is pre-tested prior to shipment, ships with full traceability documentation, and is covered by a 12-month warranty from the date of delivery. Express shipping options are available for urgent maintenance requirements.

Support FAQ

Q1: Is this harness compatible with all DX100 controller variants, including spot welding and handling configurations?
The DX100SRDA-SDB14A01A-E is specifically designed for the SRDA servo drive board interface within the DX100 platform. It is primarily applied in spot welding robot configurations. If your DX100 is configured for arc welding or material handling with a different SRDA board variant, please confirm your exact board part number before ordering. Our team can assist with cross-referencing.

Q2: What pre-shipment testing does this harness undergo?
Each unit is individually inspected for connector integrity, conductor continuity, shielding effectiveness, and insulation resistance before packaging. Units that do not meet OEM specification thresholds are rejected. A test record is available upon request for quality-critical applications.

Q3: How should this harness be stored if purchased as a preventive spare?
Store in original anti-static packaging in a dry environment between 0°C and 40°C, away from direct sunlight and chemical exposure. Under these conditions, shelf life exceeds 3 years without degradation of connector or insulation performance. Inspect connectors for oxidation before installation if stored for more than 18 months.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects, connector failure under normal operating conditions, and premature insulation breakdown not attributable to installation error or external damage. To initiate a warranty claim, contact us with your order number, a description of the fault, and photographic evidence. Replacement units are dispatched within 3–5 business days of claim approval.
