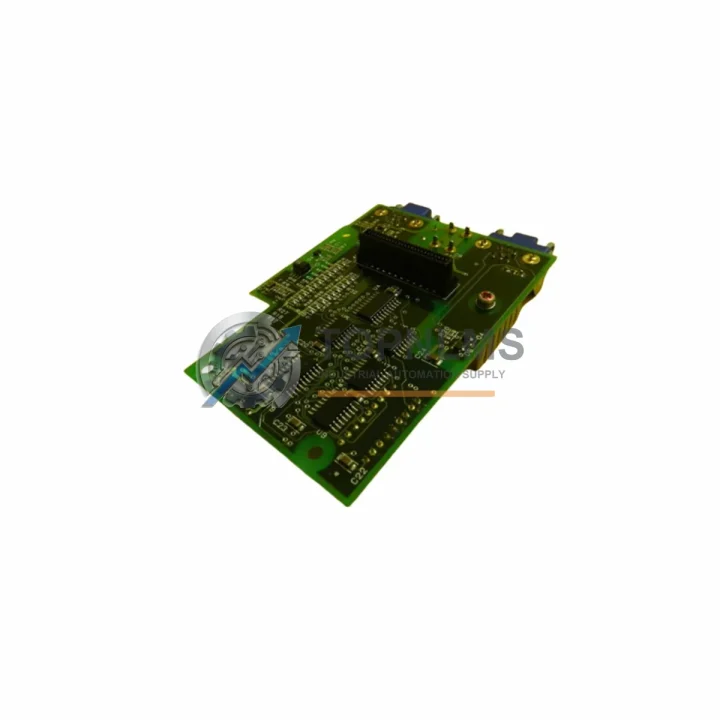

YASKAWA 73600-A0024 PG-B1 Replacement for VS-616G5

Product Overview

YASKAWA 73600-A0024 PG-B1 Replacement for VS-616G5: Smooth Transition & Legacy Drive Compatibility

When a VS-616G5 series variable frequency drive begins showing encoder feedback faults or the PG-B1 option card reaches end-of-life, production lines face an immediate risk of unplanned downtime. The YASKAWA 73600-A0024 PG-B1 Encoder Feedback Card is the factory-specified pulse generator (PG) feedback interface card designed for the VS-616G5 drive platform, enabling closed-loop vector control with incremental encoders. TOPNLMS maintains verified stock of this card to support facilities that depend on legacy YASKAWA drive systems and need a direct, plug-in replacement without reprogramming the host drive or rewiring the motor encoder circuit.

Many industrial sites running VS-616G5 drives were commissioned in the late 1990s and 2000s. These drives remain embedded in conveyor systems, hoists, extruders, centrifuges, and precision machine tools where the cost of a full drive replacement — including new cabling, panel modifications, and recommissioning — far exceeds the cost of restoring the existing drive with a replacement option card. The PG-B1 card slots directly into the VS-616G5 option card bay, retaining all existing encoder wiring, parameter settings, and closed-loop tuning data stored in the drive’s EEPROM. No software migration is required.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VS-616G5 drive restoration or system modernization typically involves more than the PG-B1 card alone. Facilities performing a full drive bay audit often source complementary components at the same time to minimize future service calls. The VS-616G5 drive itself may require a replacement control board or power board if the fault extends beyond the option card. Sites running multiple axes frequently stock the YASKAWA VS-616G5 main control PCB alongside the PG-B1 to cover both encoder feedback and drive logic failures in a single procurement cycle.

For applications where the encoder itself has degraded, a compatible incremental rotary encoder with A/B/Z line driver output — typically 1024 PPR or 2048 PPR depending on the motor — is sourced concurrently with the PG-B1 card to restore the full closed-loop feedback chain. In panel environments where the VS-616G5 shares a control cabinet with a YASKAWA MEMOCON or MP series machine controller, the communication interface between the drive and the upper-level controller may also require inspection; YASKAWA SI-T3 or SI-EN3 communication option cards are commonly evaluated during the same maintenance window.

Power supply integrity is another critical factor in VS-616G5 reliability. Many legacy installations use a 24 VDC control power supply to feed the drive’s logic board and option cards. Replacing an aging Omron S8VS or Phoenix Contact QUINT series DIN-rail power supply alongside the PG-B1 card eliminates a common root cause of intermittent encoder feedback faults caused by control voltage ripple. Similarly, if the encoder cable runs through a noisy industrial environment, adding a signal isolator or differential line driver repeater — such as those from Acuity or Pepperl+Fuchs — between the encoder and the PG-B1 input terminals significantly improves signal integrity without any changes to the drive parameters.

For facilities planning a phased migration from the VS-616G5 platform to a newer YASKAWA A1000 or GA700 series drive, the PG-B1 replacement extends the operational life of the existing drive while the migration project is scoped and budgeted. The A1000 platform uses the PG-B3 or PG-X3 option cards for encoder feedback, which accept the same encoder wiring standard, making the eventual transition straightforward. Stocking the 73600-A0024 PG-B1 now ensures continuity during the interim period without committing to a full drive replacement on an emergency timeline.

Retrofit Guidance FAQ

Q: Can I install the PG-B1 without powering down the entire drive system?
A: No. The VS-616G5 must be fully de-energized and the DC bus discharged before removing or installing any option card. Follow YASKAWA’s lockout/tagout procedure as specified in the VS-616G5 technical manual before handling the PG-B1 card.

Q: Will my existing encoder wiring connect directly to the replacement PG-B1?
A: Yes. The 73600-A0024 PG-B1 uses the same connector pinout as the original card. Existing shielded encoder cables with A, /A, B, /B, Z, /Z, and power lines connect without modification. Verify shield grounding at the drive end to prevent noise-induced faults.

Q: Do I need to re-enter drive parameters after swapping the PG-B1 card?
A: In most cases, no. The VS-616G5 stores closed-loop vector control parameters — including encoder PPR (C1-01), PG constant, and speed feedback filter settings — in the drive’s non-volatile memory, not on the option card. Parameters are retained after the card swap. Verify C1-01 matches your encoder resolution after installation.

Q: My VS-616G5 is showing fault code PGO (PG open). Is the PG-B1 card the likely cause?
A: PGO can result from a failed PG-B1 card, a broken encoder cable, a failed encoder, or a loose connector at the option card bay. Inspect the cable and connector first. If the fault persists with a known-good encoder and cable, the PG-B1 card is the most probable failed component.

Q: Is the PG-B1 compatible with both open-collector and line driver encoders?
A: The PG-B1 is designed for line driver (RS-422 differential) encoder outputs. Open-collector encoders are not directly compatible without an external line driver converter. Confirm your encoder output type before ordering.

Q: What communication protocols does the VS-616G5 support for upper-level system integration?
A: The VS-616G5 supports MEMOBUS (Modbus RTU) via the built-in RS-485 port. Optional communication cards support DeviceNet, Profibus-DP, and CC-Link depending on the installed option card. The PG-B1 is a feedback card only and does not affect fieldbus communication.

Warranty Assurance

Every YASKAWA 73600-A0024 PG-B1 Encoder Feedback Card shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each card undergoes visual inspection, connector integrity verification, and functional cross-check against known-good VS-616G5 drive test benches where applicable. Cards are packed in anti-static ESD bags with foam cushioning and shipped in double-wall corrugated cartons to prevent transit damage.

If a card is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment or issue a refund based on the buyer’s preference. Warranty claims are processed within 2 business days of receiving the returned item and fault documentation. Our after-sales team is reachable at [email protected] or +86 18359293191 for technical pre-sales questions, compatibility confirmation, and post-sale support.

Stock is maintained in Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical orders. Standard lead time for in-stock items is 1–3 business days from payment confirmation. Bulk procurement inquiries for maintenance contracts or MRO stocking programs are welcome.
