Westinghouse 5X00070G02 Replacement for WDPF Series

Product Overview

Westinghouse 5X00070G02 Replacement for WDPF Series: Smooth Transition & Legacy System Compatibility

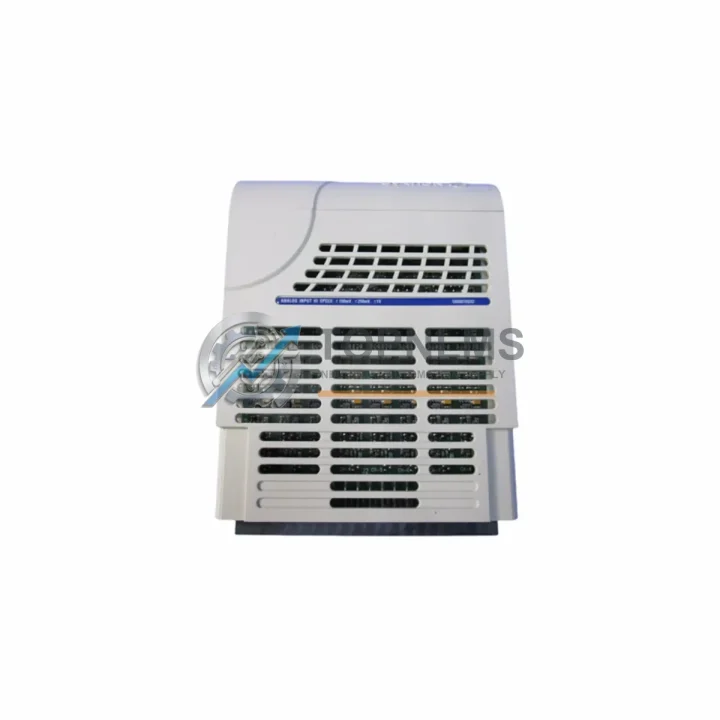

The Westinghouse 5X00070G02 is a critical analog input module within the WDPF (Westinghouse Distributed Processing Family) distributed control system platform. As Westinghouse’s WDPF product line has reached end-of-life and spare parts availability continues to shrink, facilities running legacy WDPF-based control architectures face increasing pressure to source verified replacement modules or plan a structured migration path. TOPNLMS specializes in exactly this scenario — supplying tested, ready-to-ship 5X00070G02 units and supporting engineers through the technical transition with minimal disruption to plant operations.

The 5X00070G02 module provides multi-channel analog signal acquisition, typically handling 4–20 mA or 1–5 V process signals from field transmitters including pressure, temperature, flow, and level instruments. Its role within the WDPF rack architecture means that any replacement must maintain identical signal conditioning characteristics, channel count, terminal wiring compatibility, and backplane communication behavior. Our supplied units are sourced from verified channels, individually inspected, and function-tested prior to dispatch to ensure seamless drop-in installation without requiring re-engineering of existing field wiring or DCS configuration files.

For plants operating a WDPF system, the 5X00070G02 typically resides in a standard WDPF I/O rack alongside companion modules such as the 5X00070G01 (an earlier analog input variant), digital output modules like the 5X00066G01, and power supply modules including the 5X00065G01. The rack backplane communicates with the WDPF Data Highway, and the module’s address configuration is set via onboard DIP switches — a detail that must be replicated exactly when installing a replacement unit to avoid address conflicts on the highway segment. Our team can advise on switch configuration based on your existing system documentation or site survey data.

When the 5X00070G02 is being replaced as part of a broader WDPF modernization project — rather than a like-for-like spare swap — engineers often evaluate migration to Emerson Ovation or ABB System 800xA as successor DCS platforms. In such projects, the analog input function of the 5X00070G02 is typically mapped to modern I/O modules such as the Emerson Ovation 5X00119G01 analog input card or equivalent ABB S800 AI810 analog input module. These migrations require careful signal list reconciliation, marshalling cabinet rewiring, and parallel-run commissioning periods. TOPNLMS can supply both the legacy 5X00070G02 for interim operation and source compatible modern I/O modules to support phased cutover strategies.

Field wiring compatibility is a primary concern during any WDPF analog input module replacement. The 5X00070G02 uses a standard WDPF termination panel connected via a ribbon cable to the module front face. Replacement units must use the same termination panel type — typically the WDPF TP-series terminal panel — to avoid rewiring field cables. If the termination panel itself is damaged or unavailable, TOPNLMS can source compatible WDPF termination assemblies to complete the replacement without disturbing field instrument wiring, preserving loop integrity and minimizing calibration re-verification requirements.

Communication protocol compatibility within the WDPF architecture is handled at the Data Highway level rather than at the individual I/O module level. The 5X00070G02 does not implement an independent fieldbus protocol such as PROFIBUS or FOUNDATION Fieldbus — it communicates exclusively through the WDPF proprietary backplane bus. This means that replacement modules must be genuine WDPF-compatible units; third-party analog input modules from other DCS families cannot be substituted without a full rack and highway replacement. For facilities not yet ready for a full platform migration, sourcing a verified 5X00070G02 replacement from TOPNLMS is the lowest-risk, lowest-cost path to restoring system availability.

Power supply integrity is another factor in WDPF analog input module reliability. The 5X00070G02 draws regulated DC power from the WDPF rack power supply, typically a 24 VDC bus. If a module failure is accompanied by power supply anomalies — such as voltage ripple or intermittent output from the rack PSU — the power supply module should be inspected and replaced concurrently. TOPNLMS stocks WDPF-compatible power supply modules and can supply them alongside the 5X00070G02 to address root-cause failures rather than symptom-only replacements.

For facilities managing a mixed installed base — for example, a plant where some control loops have already been migrated to a modern DCS while others remain on WDPF — the 5X00070G02 replacement strategy must account for the coexistence period. During this phase, the WDPF Data Highway must remain fully operational, and any module swap must be executed during a planned maintenance window with appropriate loop inhibiting in the DCS historian and alarm management system. TOPNLMS provides pre-shipment documentation including test reports and configuration records to support change management and MOC (Management of Change) processes required by process safety regulations in petrochemical, power generation, and water treatment facilities.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WDPF analog input module replacement or migration rarely involves a single component. Engineers executing a 5X00070G02 swap or a broader WDPF modernization project typically require a coordinated set of components to restore full system functionality. The WDPF rack housing the 5X00070G02 may also contain digital input modules such as the 5X00066G01, which handles discrete field signals from limit switches and valve position feedback. If the rack power supply — often a 5X00065G01 or equivalent WDPF PSU — shows signs of aging, replacing it concurrently with the analog input module eliminates a common secondary failure mode.

For facilities migrating from WDPF to a modern DCS platform, the migration bill of materials expands significantly. Emerson Ovation analog input cards, ABB S800 I/O modules, and Honeywell Experion C300 controller modules are common migration targets depending on the plant’s existing automation ecosystem. Each of these platforms requires its own rack or carrier assembly, and the marshalling architecture between field instruments and the new I/O must be carefully designed to avoid signal cross-contamination during the cutover period.

Communication infrastructure upgrades often accompany WDPF migrations. Where the legacy WDPF Data Highway used a proprietary coaxial or twisted-pair network, modern DCS platforms typically use Industrial Ethernet (PROFINET, EtherNet/IP, or Modbus TCP) for controller-to-I/O communication. This may require installation of managed industrial Ethernet switches, fiber optic media converters, and updated network topology documentation. Signal isolators and loop-powered barriers — such as those from the Phoenix Contact MINI Analog series or Pepperl+Fuchs KFD range — are frequently required at the marshalling level to protect new I/O modules from legacy field wiring that may carry ground loops or voltage spikes from aging instrumentation.

Programming and configuration tools are another consideration. WDPF configuration was managed through the WDPF Engineer’s Console software, and migrating control logic to a modern platform requires re-engineering in the target DCS’s configuration environment — such as Emerson DeltaV Control Studio, ABB Control Builder, or Siemens SIMATIC PCS 7 CFC. TOPNLMS does not provide software engineering services, but we can supply the hardware components — including programming cables, USB-to-serial adapters for legacy WDPF console connections, and replacement WDPF Engineer’s Console workstation components — to support your engineering team’s migration activities.

Retrofit Guidance FAQ

Q: Can I install the replacement 5X00070G02 without powering down the entire WDPF rack?
A: WDPF modules are generally not hot-swappable. A controlled shutdown of the affected rack segment is recommended. Inhibit associated loops in the DCS and notify the control room before removal. Follow your site’s MOC and LOTO procedures.

Q: Do I need to reconfigure the DCS database after replacing the module?
A: If the replacement unit is a like-for-like 5X00070G02 with identical DIP switch settings, no DCS database changes are required. The WDPF system will recognize the module at the same highway address. Verify channel calibration after installation.

Q: What if my WDPF termination panel is also damaged?
A: TOPNLMS can source compatible WDPF TP-series termination panels. Replacing the termination panel does not require field wiring changes if the same panel type is used. Contact us with your panel part number for availability.

Q: Is the 5X00070G02 compatible with both 4–20 mA and voltage input signals?
A: The 5X00070G02 supports standard WDPF analog input signal ranges. Confirm your specific channel configuration against the original WDPF I/O assignment list. Signal type is determined by the termination panel jumper settings, not the module itself.

Q: How long does shipping take from Xiamen to our facility?
A: Standard international express shipping (DHL/FedEx) from Xiamen typically takes 3–7 business days to most destinations in Asia, Europe, and the Americas. Expedited options are available for urgent plant shutdowns. Contact us for a shipping quote specific to your location.

Q: What documentation is provided with the replacement module?
A: Each unit ships with a pre-shipment test report, visual inspection record, and TOPNLMS warranty certificate. We can also provide a certificate of conformance upon request for MOC documentation purposes.

Warranty Assurance

Every Westinghouse 5X00070G02 supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional failures under normal operating conditions and includes replacement or repair at no additional cost. Our pre-shipment process includes visual inspection for physical damage, board-level examination for corrosion or component damage, and functional testing where test fixtures are available for the module type.

We understand that industrial control system components are mission-critical. Our after-sales response target is within 24 hours for warranty claims, with replacement units dispatched as priority shipments to minimize plant downtime. For customers managing strategic spare inventories, we offer consignment stock arrangements and blanket purchase order programs to ensure availability without capital commitment.

All units are carefully packaged in anti-static bags with foam cushioning to prevent transit damage. Export documentation including commercial invoice, packing list, and HS code declaration is provided for all international shipments to facilitate smooth customs clearance.

TOPNLMS has been supplying industrial automation components to process industries, power generation facilities, and manufacturing plants across Asia, the Middle East, and Europe. Our sourcing network covers genuine OEM surplus, refurbished, and tested-used inventory, with full traceability documentation available on request.
