Westinghouse 2840A79G01 Replacement for Ovation DCS

Product Overview

Westinghouse 2840A79G01 Replacement for Ovation DCS: Seamless Transition & Legacy System Upgrade

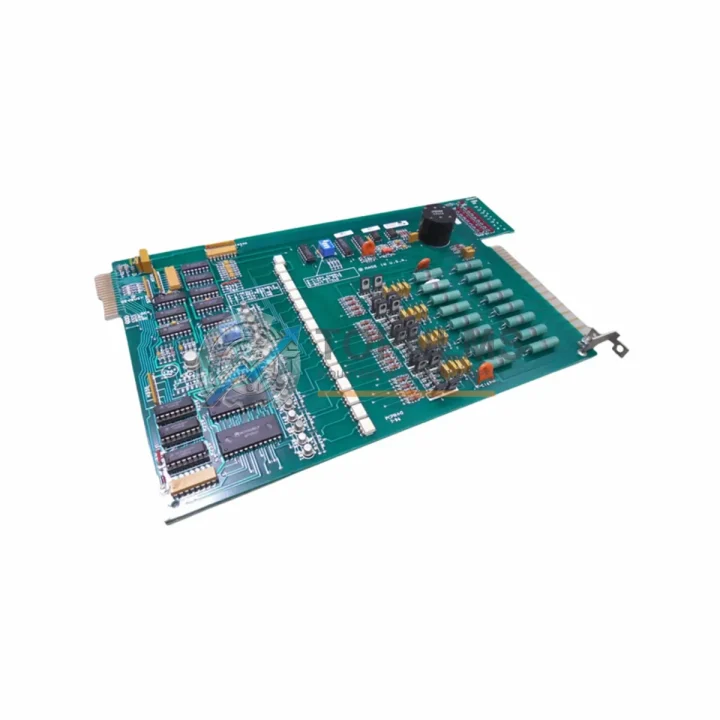

The Westinghouse 2840A79G01 is a Digital Output Module designed for the Ovation Distributed Control System (DCS) platform — a proven architecture widely deployed across power generation, petrochemical, and process industries. As the Ovation ecosystem matures and original hardware reaches end-of-life, facilities face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing I/O wiring, controller backplanes, and communication infrastructure. TOPNLMS supplies the 2840A79G01 as a direct drop-in replacement, enabling engineering teams to restore system integrity without redesigning control logic or rewiring field terminations.

Migrating from a failed or obsolete 2840A79G01 does not require reprogramming the Ovation controller. The module slots into the existing Ovation I/O rack or controller chassis, retaining the original field wiring connections at the terminal block. Output channel assignments, scaling parameters, and diagnostic configurations stored in the Ovation Workstation remain intact. This is particularly critical in facilities where the Ovation DCS manages turbine control, boiler management, or safety-instrumented functions — environments where any unplanned deviation in I/O behavior carries significant operational risk.

For sites upgrading from earlier Westinghouse WDPF or MAX1 legacy systems to the Ovation platform, the 2840A79G01 serves as a key component in the I/O migration layer. Engineers replacing WDPF DO modules or MAX1 digital output cards will find that the Ovation 2840A79G01 supports equivalent 24 VDC discrete output signaling, simplifying the field wiring transition. The Ovation I/O bus protocol handles all communication between the 2840A79G01 and the Ovation Controller (OCR400 or OCR1100), eliminating the need for protocol converters or gateway devices during the migration.

Physical installation follows the standard Ovation I/O module form factor. The 2840A79G01 mounts into the Ovation I/O rack alongside companion modules such as the 5X00070G01 Digital Input Module, the 5X00106G01 Analog Input Module, and the 1C31227G01 Relay Output Module. Power is supplied through the rack backplane from the Ovation Power Supply module, typically the 1C31166G01 or equivalent, ensuring no additional field power wiring is required for the module itself. The rack accepts standard DIN-rail or panel-mount configurations depending on the cabinet design.

Communication between the 2840A79G01 and the Ovation Controller uses the proprietary Ovation I/O bus, a deterministic, high-speed serial link that supports real-time scan rates compatible with turbine and process control applications. This architecture is fundamentally different from Modbus RTU or PROFIBUS DP field bus topologies used in third-party DCS platforms, meaning the 2840A79G01 is not interchangeable with non-Ovation systems without a full I/O subsystem redesign. For facilities running hybrid architectures — for example, an Ovation DCS managing boiler controls alongside a Siemens S7-400 or Allen-Bradley ControlLogix handling auxiliary systems — the 2840A79G01 operates exclusively within the Ovation I/O network and does not require cross-platform configuration.

During commissioning of a replacement 2840A79G01, field engineers should verify output channel forcing is disabled in the Ovation Workstation before inserting the new module. The Ovation system performs automatic module recognition upon insertion, reading the module’s hardware ID and comparing it against the configured I/O database. If the database entry matches, the module enters normal scan mode within seconds. No firmware download or manual address configuration is required. This hot-swap capability significantly reduces planned maintenance windows and supports the goal of minimizing mean time to repair (MTTR) in critical process environments.

For facilities managing spare parts inventory, the 2840A79G01 is commonly stocked alongside the 5X00119G01 Digital Output Module (24 VDC, higher channel density), the 5X00095G01 Analog Output Module, and the 1C31234G01 Communication Interface Module. Maintaining a verified spare of the 2840A79G01 on-site eliminates lead-time risk during unplanned outages. TOPNLMS ships from Xiamen with full export documentation, supporting both domestic CN delivery and international freight to Southeast Asia, the Middle East, and Europe.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Ovation DCS I/O migration or spare-parts replenishment strategy typically involves more than a single module. When replacing or upgrading the 2840A79G01 Digital Output Module, engineering teams commonly address adjacent components in the same I/O rack or control cabinet. The 5X00070G01 Digital Input Module is frequently replaced in parallel, as DI and DO modules in the same rack share the same backplane power and I/O bus scan cycle — replacing both simultaneously reduces the risk of a second unplanned outage shortly after the DO module swap. Similarly, the 5X00106G01 Analog Input Module and 5X00095G01 Analog Output Module are often included in the same procurement order for facilities performing a broader I/O health audit.

For sites where the Ovation Controller itself is approaching end-of-life, the OCR400 Controller Module and its associated 1C31227G01 Relay Output Module are common co-procurement items. The 1C31234G01 Communication Interface Module is relevant for facilities integrating the Ovation DCS with third-party SCADA systems or historian platforms via OPC or serial communication. Where control cabinet space is constrained, the 1C31166G01 Power Supply Module should be inspected and replaced proactively during any I/O module maintenance window, as power supply degradation is a leading cause of intermittent module faults in aging Ovation installations. Signal isolation requirements between the Ovation I/O and field devices may also necessitate the addition of a DIN-rail signal isolator or relay barrier module within the same cabinet.

Retrofit Guidance FAQ

Q: Can I install the 2840A79G01 without modifying field wiring?
A: In most Ovation-to-Ovation replacements, yes. The terminal block connector on the field side of the I/O rack remains in place. The 2840A79G01 plugs into the backplane slot and the existing field wiring connects to the same terminal positions. If migrating from a WDPF system, a wiring adapter or re-termination at the marshalling cabinet will be required.

Q: Do I need to update the Ovation Workstation configuration after installing the replacement module?
A: No configuration changes are required if the replacement 2840A79G01 matches the original module’s hardware revision and the I/O database entry is intact. The Ovation system reads the module’s hardware ID automatically. If the I/O database was corrupted or the slot was previously unconfigured, a database restore or re-entry of the module configuration in the Ovation Workstation will be necessary before the module enters normal scan mode.

Q: Is the 2840A79G01 compatible with both OCR400 and OCR1100 controllers?
A: Yes. The 2840A79G01 communicates via the Ovation I/O bus, which is supported by both the OCR400 and OCR1100 controller generations. No hardware or firmware changes to the controller are required.

Q: What is the physical installation space requirement?
A: The 2840A79G01 occupies a single slot in the standard Ovation I/O rack. No additional panel space is required beyond the existing rack slot. Verify that the rack has an available slot and that the backplane connector is undamaged before insertion.

Q: Can the module be replaced while the system is running (hot-swap)?
A: The Ovation platform supports hot-swap for I/O modules under normal operating conditions. However, before performing a hot-swap of a DO module, confirm with your site safety procedures that disabling the associated output channels during the swap is acceptable for the controlled process. Force all output channels to a safe state in the Ovation Workstation before removing the old module.

Q: What communication protocol does the 2840A79G01 use?
A: The module uses the proprietary Ovation I/O bus protocol. It is not compatible with Modbus, PROFIBUS, DeviceNet, or EtherNet/IP without a protocol gateway. All communication is handled internally within the Ovation I/O rack and controller architecture.

Warranty Assurance

Every 2840A79G01 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including output channel continuity checks, backplane connector inspection, and visual examination for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days of confirmed fault diagnosis. Customers are not required to return the defective unit before a replacement is shipped for critical-process applications — contact our sales team to arrange advance replacement under the warranty terms. All warranty claims are handled directly by our technical team at [email protected], with response within 24 hours on business days.

Procurement documentation including packing lists, commercial invoices, and certificates of conformance is provided with every shipment to support customs clearance and internal asset management. Export from Xiamen is available via DHL Express, FedEx International, and sea freight consolidation for bulk orders. Lead time for in-stock units is 3–5 business days for international express delivery.

For volume procurement, long-term supply agreements, or technical pre-sales consultation on Ovation DCS migration projects, contact TOPNLMS directly. Our team maintains sourcing relationships for the full Ovation I/O module catalog and can advise on cross-reference compatibility, revision history, and obsolescence risk for your specific installation.
