Westinghouse 2D78559G01 Replacement for OVATION DCS: Seamless Migration & Upgrade Solution

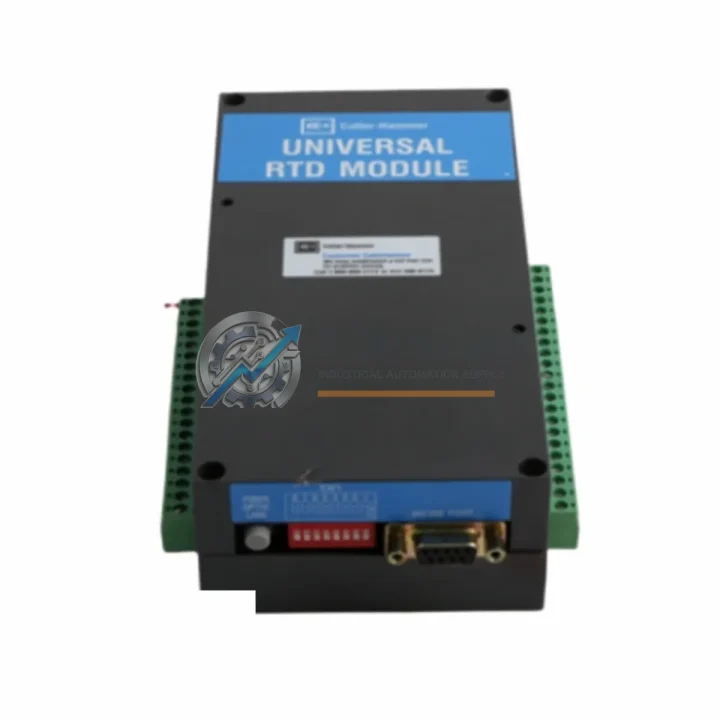

The Westinghouse 2D78559G01 Universal RTD Input Module is a critical I/O component within the Emerson OVATION Distributed Control System platform, widely deployed in power generation, utilities, and process industries. As legacy OVATION systems approach end-of-life or require capacity expansion, sourcing a verified, drop-in-compatible replacement for the 2D78559G01 is essential to maintaining process continuity and minimizing unplanned downtime.

TOPNLMS supplies the 2D78559G01 as a direct replacement module — fully tested, wiring-compatible, and backed by a 12-month warranty. Whether you are executing a like-for-like spare replacement, a partial system refresh, or a phased migration away from discontinued OVATION hardware, this module supports a smooth transition with no changes to field wiring or control logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OVATION DCS migration or spare-parts replenishment rarely involves a single module in isolation. During the replacement or upgrade of the 2D78559G01 RTD Input Module, field engineers typically address the surrounding system architecture to ensure long-term reliability. The following components are commonly evaluated or replaced in the same maintenance window:

The OVATION I/O rack and backplane assembly (such as the 5X00070G01 or 5X00119G01 rack chassis) provides the physical and electrical foundation for the 2D78559G01. Verifying backplane connector integrity before module insertion prevents intermittent communication faults. Alongside the RTD input module, sites often refresh adjacent analog input modules — for example the 5X00106G01 AI Module — to standardize the I/O bay and reduce future failure risk.

Temperature measurement loops connected to the 2D78559G01 typically terminate at marshalling cabinets equipped with terminal blocks and signal isolators. Where legacy wiring uses unshielded twisted pair, upgrading to shielded cable with proper grounding at the marshalling end eliminates common-mode noise that can degrade RTD accuracy. Signal conditioners and loop isolators (such as those in the Westinghouse OVATION signal conditioning range) are frequently added during this phase to protect the new module from field-side transients.

The OVATION controller module — typically a 1C31227G01 or 5X00070G01 series controller — communicates with the 2D78559G01 over the OVATION I/O bus. If the controller firmware is at an older revision, a coordinated firmware update ensures full compatibility with the replacement module and avoids diagnostic alarms during commissioning. The OVATION Operator Workstation (OWS) running OVATION Developer Studio is used to verify module recognition and channel configuration without modifying the existing control strategy.

For sites also addressing discrete I/O in the same cabinet, the Westinghouse 5X00300G01 Digital Input Module and 5X00301G01 Digital Output Module are common companion replacements. Power supply modules — such as the 1C31166G01 OVATION Power Supply — should be inspected for capacitor aging when the system has been in service for more than eight years, as power quality directly affects RTD measurement stability. Finally, programming cables and OVATION diagnostic tools are required on-site during commissioning to confirm channel-by-channel calibration and loop integrity before returning the unit to service.

Retrofit Guidance FAQ

Q: Does replacing the 2D78559G01 require field rewiring?
A: No. The 2D78559G01 uses the standard OVATION I/O rack backplane interface. Field wiring terminates at the marshalling cabinet terminal blocks, which remain unchanged. The module slides into the existing rack slot without any field-side wiring modification.

Q: Will the existing OVATION control strategy need to be modified?
A: For a like-for-like replacement, no control logic changes are required. The module is recognized automatically by the OVATION controller once seated. Channel tag assignments and scaling parameters configured in OVATION Developer Studio are retained.

Q: Is the 2D78559G01 compatible with all OVATION DCS versions?
A: The module is designed for the OVATION I/O platform and is compatible across the primary OVATION system generations used in power and utilities applications. If your site runs a very early OVATION revision, contact TOPNLMS with your controller firmware version for confirmation before ordering.

Q: What RTD sensor types does this module support?
A: The 2D78559G01 supports universal RTD inputs including Pt100, Pt1000, Ni120, and Cu10 sensor types, configurable per channel via OVATION Developer Studio. No hardware jumper changes are required between sensor types.

Q: How is the module commissioned after installation?
A: After physical installation, the OVATION controller performs automatic module recognition. Use OVATION Developer Studio at the Operator Workstation to verify channel status, confirm engineering unit scaling, and perform a loop check against the field RTD sensors before releasing the loop to automatic control.

Q: What if the physical rack slot or backplane connector is damaged?
A: If backplane connector damage is suspected, the rack chassis (e.g., 5X00070G01 series) should be replaced before inserting the new module. TOPNLMS can advise on compatible rack assemblies and supply them alongside the 2D78559G01 to complete the repair in a single shipment.

Warranty Assurance

Every Westinghouse 2D78559G01 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on self-test, backplane interface check, and channel continuity validation to confirm it meets original specification.

Should a module exhibit any defect or performance anomaly within the warranty period, TOPNLMS provides priority replacement support — a replacement unit is dispatched upon confirmation of the fault, minimizing the impact on your plant operations. Our technical team is available to assist with installation queries, compatibility confirmation, and commissioning guidance throughout the warranty period.

For urgent breakdown situations, TOPNLMS maintains stock of the 2D78559G01 and common companion OVATION modules to support same-day or next-business-day dispatch from our Xiamen warehouse. Express international freight options (DHL, FedEx, UPS) are available to all major industrial regions.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformity as required for plant maintenance purchasing workflows. All units are shipped with appropriate ESD-protective packaging and documentation.
