Waters 289000192 Original Industrial Spare — Alliance Series System Stability & Thermoelectric Maintenance

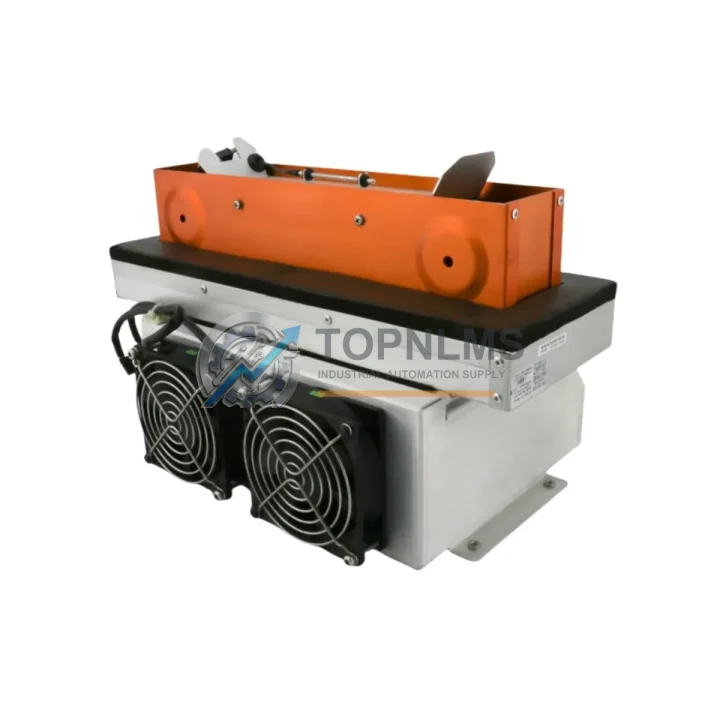

The Waters 289000192 Thermoelectric Heat/Cooler Engine is a precision-engineered original spare component designed for Waters Alliance and ACQUITY HPLC column oven assemblies. In high-throughput analytical laboratories and industrial quality-control environments, column temperature stability is not optional — it is the foundation of reproducible chromatographic results. When this thermoelectric module degrades or fails, the entire HPLC system is at risk of producing out-of-specification data, triggering unplanned downtime and costly re-runs.

Sourcing a verified original replacement — part number 289000192 (cross-referenced as 385150-001, WT-28900-192-A, 289000560) — ensures that your Alliance or ACQUITY system returns to validated operating parameters without the risk of compatibility drift introduced by non-OEM substitutes. TOPNLMS stocks this module pre-tested and ready for immediate dispatch, supporting your maintenance team’s goal of minimizing mean time to repair (MTTR).

Critical Technical Specs

Preventive Maintenance Strategy

A thermoelectric module failure rarely occurs in isolation. In most Alliance and ACQUITY system shutdowns, the root cause investigation reveals that adjacent components were already operating at marginal performance levels. A disciplined preventive maintenance (PM) program treats the 289000192 replacement as a trigger point for a broader system health audit.

When replacing the thermoelectric engine, maintenance engineers should simultaneously inspect the column oven fan assembly and its associated wiring harness — thermal cycling stress degrades connector integrity over time. The column oven door seal and latch mechanism should be checked for air leakage, which directly undermines the thermoelectric module’s ability to maintain setpoint temperature. If the system uses a Waters 2998 or 2996 Photodiode Array Detector, verify that the detector’s internal temperature compensation is still within calibration, as column temperature drift often masks detector baseline instability.

For Alliance 2695 systems, the degasser module (e.g., Waters 2695D integrated degasser cartridge) should be inspected during the same maintenance window — a partially blocked degasser increases system backpressure and places additional thermal load on the column oven. Similarly, the quaternary solvent manager pump head seals and check valves are wear items that, if leaking, can introduce temperature-affecting solvent vapor into the column compartment.

In ACQUITY UPLC environments, the column manager’s active pre-heater assembly works in tandem with the thermoelectric engine. If the 289000192 is being replaced due to insufficient cooling performance, the pre-heater’s resistance element should be measured to confirm it is not contributing excess heat load. The ACQUITY Binary Solvent Manager (BSM) pump seals and the Sample Manager (SM or FTN) needle seal and rotor seal are also logical co-inspection items during any planned column manager downtime.

For facilities managing multiple HPLC systems, stocking a spare Waters 289000192 alongside a column oven temperature sensor (thermocouple/RTD assembly) and a set of system interconnect cables creates a rapid-response spare kit that can restore a failed system within a single shift — eliminating the multi-day lead time that unplanned procurement typically incurs. Proactive inventory of these high-criticality, long-lead components is the single most effective strategy for protecting analytical throughput in regulated environments.

Strategic Replacement Solutions

The Waters 289000192 is a direct OEM drop-in replacement for all Alliance (2695, 2695D, e2695) and ACQUITY column manager platforms that use the same thermoelectric engine architecture. No firmware updates, no hardware adapters, and no recalibration of the column oven PID parameters are required — the system recognizes the replacement module identically to the original.

For facilities still operating legacy Waters 2690 or 2690D systems, the 289000192 is compatible with the column oven sub-assembly when the oven controller board is at the current firmware revision. This makes it an ideal component for legacy system life extension programs, where the goal is to defer capital expenditure on a new HPLC platform by maintaining the existing system in validated, compliant operation for an additional 3–5 years.

Compared to third-party thermoelectric modules, the original Waters 289000192 maintains the factory-calibrated thermal response curve that the column oven firmware expects. Substituting a non-OEM Peltier assembly with a different thermal mass or efficiency rating can cause the PID controller to hunt, producing column temperature oscillations that are difficult to diagnose and that invalidate method validation data. Sourcing the original part eliminates this risk entirely.

TOPNLMS ships the 289000192 with full function testing documentation. Each unit undergoes electrical continuity verification and thermal cycling confirmation prior to packaging. Orders placed before the daily cut-off are dispatched same day, with tracking provided. International shipments are supported with appropriate export documentation for regulated laboratory environments.

Support FAQ

Q1: How do I confirm the 289000192 is the correct part for my specific Alliance system variant?
The 289000192 thermoelectric engine is used across the Waters Alliance 2695, 2695D, and e2695 column oven assemblies, as well as certain ACQUITY column manager configurations. Cross-reference your system’s service manual BOM or contact TOPNLMS with your system serial number for confirmation before ordering. The cross-reference numbers 385150-001 and WT-28900-192-A can also be used to verify compatibility with your existing service records.

Q2: What is included in the 12-month warranty, and what does the pre-shipment testing cover?
Every 289000192 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Pre-shipment testing includes electrical continuity checks across all thermoelectric junctions, insulation resistance verification, and a thermal cycling functional test to confirm both heating and cooling performance. A test report is available upon request for GMP-regulated facilities requiring incoming inspection documentation.

Q3: Should I stock this part as a critical spare, and how many units are recommended?
For facilities operating two or more Alliance or ACQUITY systems, maintaining at least one 289000192 as a critical on-hand spare is strongly recommended. The thermoelectric engine is a single-point-of-failure component — when it fails, the column oven is non-functional and the system cannot run temperature-controlled methods. A single spare unit eliminates the procurement lead time risk and allows same-shift restoration. High-throughput or GMP facilities with zero-downtime requirements should consider a two-unit buffer stock.

Q4: Can the 289000192 be installed by an in-house maintenance technician, or does it require a Waters field service engineer?
The 289000192 is designed as a field-replaceable unit (FRU). Installation requires standard ESD precautions, basic hand tools, and access to the Waters Alliance or ACQUITY service manual for the relevant system. Most experienced in-house HPLC maintenance technicians can complete the replacement within 1–2 hours. Post-installation, a column oven temperature verification run using a calibrated external reference thermometer is recommended before returning the system to production use. TOPNLMS can provide installation guidance documentation upon request.
