Triconex 9853-610 Ruggedized Termination Panel for Harsh Environments

Product Overview

Triconex 9853-610 Ruggedized Termination Panel for Harsh Environments

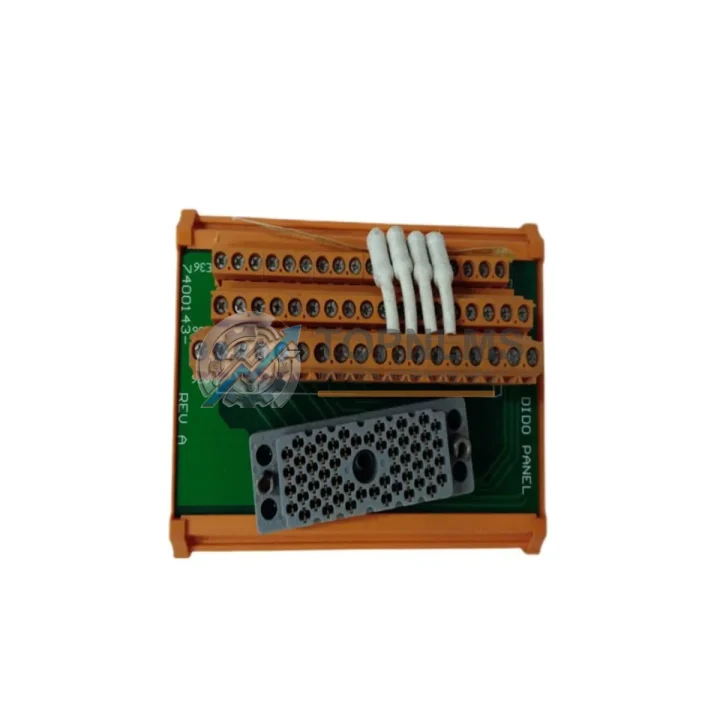

The Triconex 9853-610 Basic Termination Panel is a mission-critical field wiring interface engineered for the Tricon Triple Modular Redundant (TMR) Safety Instrumented System (SIS) platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and zones with severe electromagnetic interference — the 9853-610 delivers the structural and electrical integrity that safety-critical control architectures demand.

As a core wiring interface component within the Tricon chassis ecosystem, the 9853-610 termination panel provides a structured, reliable connection point between field instrumentation and the Tricon I/O modules. Its robust terminal block design accommodates the high conductor density typical of SIS field loops, while its shielded construction suppresses EMI-induced signal corruption that can compromise process safety logic. Whether installed in a petrochemical control room, a power generation facility, or a water treatment plant’s distributed control cabinet, the 9853-610 maintains signal fidelity across all three redundant channels of the Tricon TMR architecture.

In continuous production environments where unplanned downtime carries severe safety and financial consequences, the 9853-610 plays a pivotal role in maintaining the integrity of the overall safety loop. It interfaces directly with Tricon digital input modules such as the 3501E and 3503E, as well as analog input modules including the 3700A and 3703E, ensuring that field sensor signals — from pressure transmitters, temperature elements, and flow meters — are cleanly routed into the TMR voting logic. The panel’s mechanical design is compatible with the standard Tricon chassis backplane, enabling straightforward hot-swap replacement without disrupting adjacent I/O channels during scheduled maintenance windows.

Rugged Specifications Table

Comprehensive Protection Solutions

The 9853-610 termination panel does not operate in isolation — it is one node in a tightly integrated safety and control architecture. In a typical Tricon SIS cabinet, the 9853-610 works in concert with the Tricon Main Chassis (model 3700), the Tricon Communication Module (TCM) such as the 4351B or 4352B for Modbus and OPC connectivity, and the Tricon Power Supply modules (model 8312 or 8110) that deliver clean, redundant DC power to the entire chassis. Upstream of the termination panel, field junction boxes and marshalling cabinets aggregate signals from HART-compatible pressure transmitters, thermocouple inputs, and solenoid valve outputs before routing them through the 9853-610 into the Tricon I/O layer.

For installations requiring intrinsic safety barriers or galvanic isolators between hazardous-area field devices and the Tricon I/O modules, the 9853-610 is typically paired with Zener barrier assemblies or active isolators mounted on the same DIN rail within the control cabinet. In facilities running parallel DCS infrastructure — such as a Foxboro I/A Series or Honeywell Experion PKS — the Tricon SIS communicates via the TCM’s Ethernet or serial ports, while the 9853-610 continues to provide the physical field wiring layer independently of the DCS communication bus. This separation of safety and control wiring is a fundamental design principle in IEC 61511-compliant installations.

When a Tricon digital output module such as the 3601E or 3603E drives a final control element — a shutdown valve, a deluge system actuator, or an emergency depressurization valve — the 9853-610 termination panel on the output side must maintain the same wiring integrity as on the input side. Proper cable segregation, correct terminal torque values, and periodic insulation resistance testing at the 9853-610 terminals are standard maintenance practices in SIL 3 certified loops. TOPNLMS supplies the 9853-610 alongside compatible Tricon output termination panels and I/O modules to support complete loop replacement or cabinet expansion projects.

Application in Critical Infrastructure

The Triconex 9853-610 has established a proven service record across the world’s most demanding process industries. In upstream oil and gas production, Tricon TMR systems equipped with 9853-610 termination panels protect wellhead shutdown systems, high-integrity pressure protection systems (HIPPS), and emergency shutdown (ESD) valves from overpressure events. The panel’s ability to maintain reliable field wiring continuity under the mechanical vibration generated by reciprocating compressors and pump skids makes it a preferred choice for offshore platform and onshore gas compression station installations.

In coal-fired and gas-fired power generation plants, the Tricon SIS platform — with the 9853-610 as its field interface backbone — monitors turbine overspeed protection, boiler drum level safety, and generator protection relay inputs. The panel’s high-humidity tolerance is particularly valuable in steam turbine halls and cooling tower control rooms where condensation is a persistent concern. Similarly, in municipal water treatment and wastewater facilities, where chemical dosing systems and pump protection logic must operate reliably in corrosive, high-moisture environments, the 9853-610 provides the field wiring stability that keeps safety logic intact around the clock.

Mining and metallurgical operations present some of the harshest conditions for any electronic component: fine conductive dust, wide temperature swings between outdoor cable runs and climate-controlled control rooms, and high-current motor drives generating significant EMI. In these environments, the 9853-610’s shielded terminal design and robust mechanical construction ensure that the Tricon SIS continues to receive clean, uncorrupted field signals from conveyor belt speed sensors, crusher overload detectors, and smelter temperature monitoring loops. Petrochemical refineries and LNG terminals, where SIL 3 requirements are non-negotiable and proof-test intervals are strictly regulated, rely on the 9853-610 as a long-life, readily replaceable wiring interface that supports the plant’s functional safety management system without requiring chassis redesign.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the Triconex 9853-610?
All Triconex 9853-610 units supplied by TOPNLMS carry a 12-month full replacement warranty from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will replace it at no additional cost. Our warranty covers manufacturing defects and functional failures verified through our pre-shipment testing protocol.

Q2: How is the 9853-610 tested before shipment?
Every 9853-610 unit undergoes a multi-stage inspection process at our Xiamen facility: visual inspection for physical damage, terminal integrity verification, continuity testing across all wiring channels, and functional compatibility checks against Tricon chassis specifications. Units sourced as tested surplus are additionally subjected to power-on functional verification before dispatch. A test report is available upon request for critical SIS replacement projects.

Q3: Is the 9853-610 compatible with all Tricon chassis generations?
The 9853-610 Basic Termination Panel is designed for the Tricon TMR platform and is compatible with standard Tricon chassis configurations that accept the corresponding I/O module series (3501E, 3503E, 3700A, 3703E, and related models). For specific chassis revision or firmware compatibility questions, our technical team can cross-reference your existing system configuration before shipment to confirm fit.

Q4: Can TOPNLMS support long-term or repeat supply of the 9853-610?
Yes. TOPNLMS maintains standing inventory of Triconex Tricon series components, including the 9853-610, to support both emergency replacement and planned maintenance programs. We work with industrial facilities that require consistent, documented supply chains for their SIS spare parts inventory. Long-term supply agreements, blanket purchase orders, and priority allocation for critical infrastructure clients are all available — contact our team at [email protected] or +86 18359293191 to discuss your requirements.
