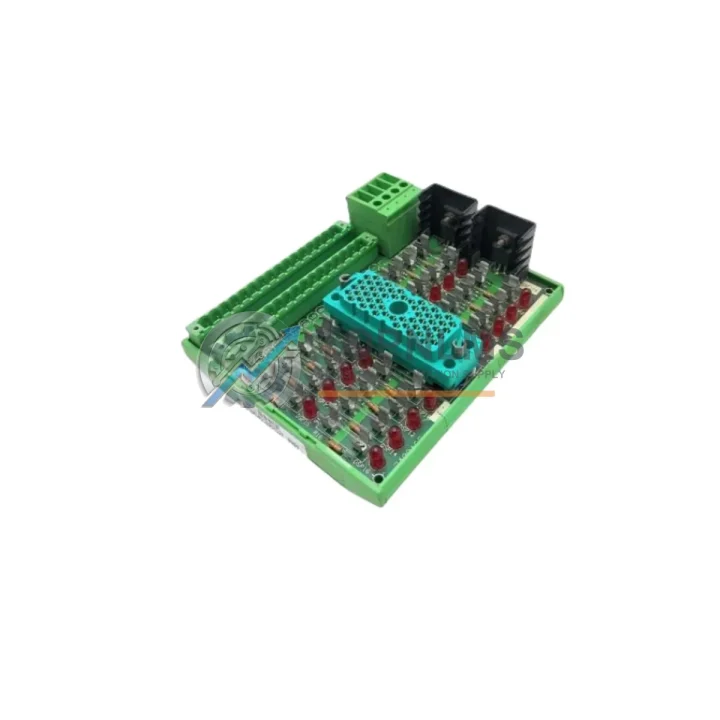

Triconex 9662-810 Ruggedized Termination Panel: Industrial Resilience for Harsh Environments

The Triconex 9662-810 is a high-integrity termination panel engineered specifically for the Tricon Triple Modular Redundant (TMR) Safety System — one of the most trusted safety-rated control architectures deployed in critical industrial infrastructure worldwide. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, the 9662-810 delivers the field-level reliability that safety-critical applications demand without compromise.

In process industries where a single point of failure can trigger catastrophic consequences — from unplanned shutdowns to personnel safety incidents — the termination panel serves as the structured interface between field instrumentation and the Tricon TMR controller chassis. The 9662-810 provides organized, secure, and noise-immune signal termination for I/O modules, ensuring that every sensor, actuator, and transmitter signal reaches the safety logic solver with full integrity. Its robust mechanical construction and shielded terminal architecture make it the preferred choice for engineers specifying safety instrumented systems (SIS) in accordance with IEC 61511 and IEC 61508 functional safety standards.

Whether deployed in an oil and gas separator skid, a chemical reactor interlock loop, a power generation turbine protection system, or a water treatment facility’s emergency shutdown (ESD) circuit, the Triconex 9662-810 maintains stable, fault-tolerant connectivity even under the most demanding operational conditions. Its compatibility with the broader Tricon TMR platform — including the Triconex 3700A Main Chassis, 3805E Digital Input Module, 3604E Analog Input Module, 3703E Digital Output Module, and 3805E-Series I/O modules — ensures seamless integration within existing Triconex safety architectures without requiring system-level redesign.

Rugged Specifications Table

Comprehensive Protection Solutions

The Triconex 9662-810 does not operate in isolation — it is a critical node within a layered safety and control architecture. In a typical Tricon TMR safety system cabinet, the 9662-810 termination panel interfaces directly with field-side wiring and routes signals to the Triconex 3604E Analog Input Module for process variable monitoring, or to the 3805E Digital Input Module for discrete safety interlock signals. On the output side, it supports clean signal routing to the 3703E Digital Output Module, which drives final control elements such as solenoid valves and motor starters in emergency shutdown sequences.

In high-vibration environments such as compressor stations or offshore platforms, the 9662-810’s secure terminal block design prevents signal degradation that could otherwise cause spurious trips or dangerous undetected failures. When paired with the Triconex 3700A Main Chassis and redundant Tricon Communication Module (TCM), the system achieves the fault-tolerant architecture required for SIL 3 safety loops. The termination panel also supports integration with Triconex 3008 Power Supply Modules, ensuring that even under power fluctuation conditions common in heavy industrial environments, the I/O signal integrity is maintained.

For facilities running mixed automation architectures, the 9662-810 can coexist within control cabinets alongside Modbus RTU or HART-enabled field devices, industrial Ethernet switches, and DCS gateway modules. Its structured wiring approach reduces the risk of cross-wiring errors during maintenance, a critical factor in facilities where the cost of a safety system fault far exceeds the cost of the component itself. Facilities managing spare parts inventories for Tricon TMR systems should consider stocking the 9662-810 alongside companion termination panels such as the Triconex 9662-810 series variants and associated cable assemblies to ensure rapid replacement capability during planned turnarounds or emergency maintenance windows.

Application in Critical Infrastructure

The Triconex 9662-810 has established a proven track record across the most demanding sectors of global critical infrastructure. In oil and gas production and refining, it serves as the field termination backbone for emergency shutdown (ESD) and fire and gas (F&G) systems, where continuous operation under high-temperature, high-humidity, and hydrocarbon-laden atmospheric conditions is non-negotiable. Offshore platforms and onshore processing facilities alike rely on the Tricon TMR architecture — and by extension the 9662-810 — to maintain SIL 3 integrity across thousands of I/O points.

In power generation, including gas turbine and steam turbine protection systems, the 9662-810 provides the reliable signal termination required for overspeed protection, flame detection, and vibration monitoring loops. Its resistance to electromagnetic interference from large rotating machinery and high-voltage switchgear makes it particularly well-suited for generator protection panels and turbine control rooms.

The mining and metallurgy sector presents some of the harshest operating environments for any electronic component — extreme dust loading, mechanical shock, wide temperature swings, and corrosive atmospheres. The 9662-810’s robust construction and compatibility with sealed enclosure installations make it a reliable choice for conveyor interlock systems, crusher protection circuits, and smelter process safety loops.

In water and wastewater treatment facilities, where continuous operation is mandated by public health requirements, the 9662-810 supports the reliable termination of pump protection, chemical dosing interlock, and overflow prevention safety loops. Its long-term availability as a genuine Triconex spare part ensures that facility operators can maintain system integrity without costly platform migrations.

Chemical and petrochemical plants operating under ATEX or NEC hazardous area classifications depend on the Tricon TMR system’s certified architecture to protect personnel and assets. The 9662-810 supports the structured, auditable wiring practices required by functional safety management systems, simplifying compliance with IEC 61511 lifecycle requirements during safety audits and management of change (MOC) reviews.

Security & Quality FAQ

Q1: Does the Triconex 9662-810 come with a warranty, and what does it cover?
Yes. Every Triconex 9662-810 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment to verify electrical integrity and mechanical completeness. If a unit fails within the warranty period, we provide replacement or repair support with priority handling to minimize your system downtime.

Q2: How is the unit tested before shipment, and can I request a test report?
All units are subject to pre-shipment inspection including visual examination, terminal continuity verification, and functional compatibility checks against Tricon TMR system specifications. Test documentation is available upon request for customers with formal quality management or FAT (Factory Acceptance Test) requirements. We support customers who require traceability documentation for safety-critical spare part procurement.

Q3: Is the 9662-810 compatible with my existing Tricon TMR system version?
The Triconex 9662-810 is designed for use within the Tricon TMR platform and is compatible with standard Tricon chassis and I/O module configurations. If you are integrating this panel into a specific system revision or require confirmation of compatibility with a particular firmware version or I/O module type, our technical team can assist with cross-referencing your system’s bill of materials. Please provide your chassis model and I/O module part numbers when inquiring.

Q4: Can TOPNLMS support long-term or repeat supply of the 9662-810 for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of Triconex spare parts to support planned maintenance, turnaround projects, and emergency replacement requirements. We work with facility maintenance teams and procurement departments to establish reliable supply agreements for critical spare parts, including the 9662-810 and associated Tricon TMR components. Long-term supply inquiries are welcome — contact our team to discuss volume pricing and lead time commitments.
