Tokyo Electron TTLA07-13 F-MFC_16 MFC Control PCB Module

Product Overview

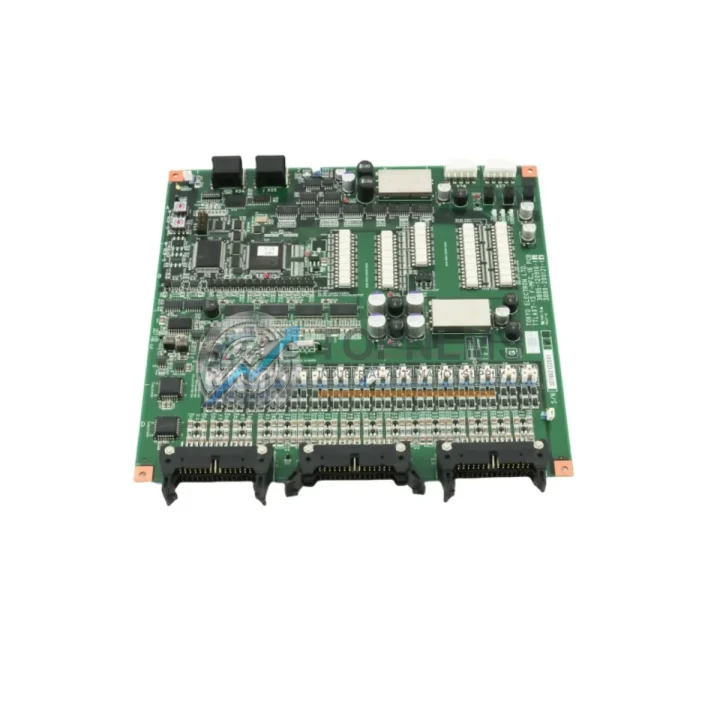

Tokyo Electron TTLA07-13 F-MFC_16 Ruggedized 16-Channel Mass Flow Controller PCB for Harsh Industrial Environments

The Tokyo Electron TTLA07-13 F-MFC_16 is a high-precision, ruggedized 16-channel Mass Flow Controller (MFC) PCB designed for demanding semiconductor fabrication and industrial process control environments. Engineered to sustain continuous, fault-free operation under conditions of elevated temperature, humidity, vibration, electromagnetic interference (EMI), and chemical exposure, this board represents Tokyo Electron’s commitment to industrial resilience and process integrity. Whether deployed in a cleanroom CVD chamber, an etch tool, or a multi-zone gas delivery system, the TTLA07-13 F-MFC_16 delivers the signal fidelity and channel isolation required for mission-critical gas flow regulation.

This PCB serves as the core control intelligence within Tokyo Electron’s MFC subsystem architecture, coordinating real-time flow data acquisition, valve actuation signals, and closed-loop PID regulation across all 16 independent gas channels simultaneously. Its robust design tolerates the thermal cycling and vibration profiles common in semiconductor capital equipment, making it an ideal long-term spare or direct replacement for aging or failed boards in TEL Trias, Tactras, and Vantage platform tools.

Rugged Specifications Table

Comprehensive Protection Solutions

The TTLA07-13 F-MFC_16 does not operate in isolation — it is the nerve center of a tightly integrated gas delivery and process control architecture. In a typical TEL Trias or Tactras chamber configuration, this MFC control board interfaces directly with the TEL F-MFC mass flow controller valve assemblies and communicates upstream with the TEL process controller CPU board (such as the TTLA series main controller) via a dedicated backplane bus. Downstream, it drives precision solenoid valve drivers and analog output cards that regulate individual gas lines including precursor, carrier, and purge gases.

In multi-zone process tools, the TTLA07-13 F-MFC_16 works in concert with TEL I/O expansion boards and digital signal interface modules to maintain synchronized flow profiles across all process zones. The board’s 16-channel architecture eliminates the need for multiple single-channel MFC controllers, reducing rack space, wiring complexity, and potential failure points within the control cabinet. When paired with a TEL power distribution board and a regulated 24VDC industrial power supply, the system achieves the stable voltage rails required for accurate analog flow measurement — typically ±15 VDC for sensor excitation and 5 VDC for digital logic.

For facilities managing gas safety and leak detection, the TTLA07-13 F-MFC_16 integrates with gas safety interlock relay modules and emergency shutoff solenoid drivers that respond to signals from the tool’s safety PLC layer. In semiconductor fabs running SEMI S2 or SEMI F47 compliance frameworks, this board’s reliable signal isolation and channel-level fault detection contribute directly to the overall safety instrumented system (SIS) architecture. Facilities that also operate Siemens S7-300 or S7-400 series PLCs for facility-level automation can interface with the TEL tool network via PROFIBUS DP communication modules or Ethernet/IP gateway adapters, enabling centralized monitoring of MFC status, flow deviation alarms, and preventive maintenance triggers.

For spare parts management, procurement teams frequently source the TTLA07-13 F-MFC_16 alongside complementary TEL boards such as the TTLA series analog input/output boards, TEL interlock control PCBs, and TEL chamber temperature controller modules to maintain a complete critical-spare inventory. This strategy minimizes mean time to repair (MTTR) during unplanned downtime events — a key metric in high-volume semiconductor production environments where a single tool outage can cost tens of thousands of dollars per hour.

Application in Critical Infrastructure

The Tokyo Electron TTLA07-13 F-MFC_16 finds its primary application in semiconductor wafer fabrication facilities, where precise gas flow control is non-negotiable for process repeatability and yield. In Chemical Vapor Deposition (CVD) and Atomic Layer Deposition (ALD) chambers, even a 0.1% deviation in precursor gas flow can result in film thickness non-uniformity, defect generation, or wafer scrap. The 16-channel architecture of this board allows a single TEL tool to manage complex multi-gas recipes — including silane (SiH₄), ammonia (NH₃), nitrogen trifluoride (NF₃), and argon — with the precision and repeatability demanded by sub-10nm process nodes.

Beyond semiconductor fabs, this MFC control board is applicable in flat panel display (FPD) manufacturing lines, solar cell deposition equipment, and advanced materials research facilities where multi-channel gas flow management is required under controlled atmospheric conditions. In pharmaceutical and specialty chemical production environments, similar MFC control architectures are deployed for reactor gas blending, where safety, repeatability, and audit-trail compliance are paramount.

In power generation and energy sector applications, ruggedized MFC control boards like the TTLA07-13 F-MFC_16 are used in fuel cell test stations and hydrogen generation systems, where precise hydrogen and oxygen flow control is critical for both performance and safety. The board’s tolerance for EMI-rich environments — common near high-power inverters, variable frequency drives (VFDs), and large transformer installations — makes it suitable for deployment in industrial energy facilities without additional shielding enclosures.

For oil and gas processing and petrochemical refinery applications, the TTLA07-13 F-MFC_16 supports gas chromatography systems, flare gas monitoring equipment, and process analyzer sample conditioning systems, where multi-channel flow control must remain stable across wide ambient temperature swings and in the presence of corrosive process gases. Its robust PCB construction and conformal coating provide the environmental protection needed for extended service life in these demanding field conditions.
