TOKYO ELECTRON BB81-000009-18 Original Spare PCB — System Stability for Semiconductor Fab Maintenance

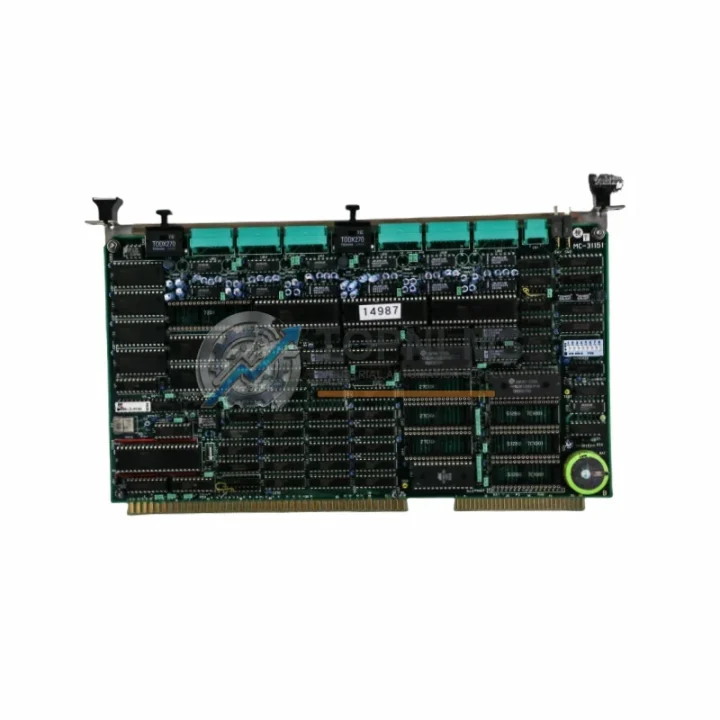

The TOKYO ELECTRON BB81-000009-18 Transfer Distribution Board PCB Assembly is a critical original spare component for TEL semiconductor processing equipment. In high-uptime fab environments, a failed distribution board can halt an entire process chamber, triggering costly unplanned downtime. Stocking a verified original BB81-000009-18 ensures your maintenance team can execute rapid board-swap replacements and restore chamber operation within a single shift — protecting both yield and throughput targets.

This PCB assembly is manufactured to TEL’s original design specifications, ensuring full electrical and mechanical compatibility with the BB81 series control architecture. Each unit shipped from TOPNLMS undergoes functional verification and is backed by a 12-month warranty, giving procurement and engineering teams confidence in both quality and lifecycle support.

Critical Technical Specs

Preventive Maintenance Strategy

The BB81-000009-18 Transfer Distribution Board sits at the intersection of wafer handling control and signal routing within the TEL process module. A disciplined preventive maintenance program should treat this board not in isolation, but as part of a broader inspection cycle covering the entire transfer and control subsystem.

During scheduled PM intervals, engineers should simultaneously inspect the BB81 series I/O interface boards that share the same backplane, as signal degradation on adjacent boards can mask or accelerate faults on the distribution board itself. The power supply modules feeding the BB81 control rack are equally critical — voltage ripple or transient spikes are a leading cause of premature PCB failure, and stocking a spare PSU alongside the BB81-000009-18 significantly reduces cascading failure risk.

Connector integrity is another key inspection point. The ribbon cables and board-to-board connectors linking the transfer distribution board to the robot arm controller and chamber I/O should be checked for oxidation, pin deformation, and secure seating. In high-cycle environments, these connectors can develop intermittent contact faults that present as sporadic transfer errors before causing a hard fault on the distribution board.

For facilities running multiple TEL chambers, a coordinated PM strategy should also include the communication modules (such as PROFIBUS or DeviceNet interface cards used in TEL’s control architecture) and the signal isolation boards that protect the distribution board from ground loops originating in the process chamber. Replacing these on a fixed interval — rather than reactively — dramatically reduces unplanned downtime.

The relay modules and solid-state relay assemblies within the same control cabinet should be inspected during any BB81-000009-18 replacement event. These components share the same thermal environment and often reach end-of-life within similar timeframes. Similarly, terminal blocks and DIN-rail mounted fuse modules in the distribution circuit should be checked for heat discoloration, which indicates sustained overcurrent conditions that may have stressed the PCB assembly.

For older TEL systems approaching end-of-support, maintaining a small buffer stock of the BB81-000009-18 alongside compatible HMI interface panels and controller backplanes is a proven strategy for extending system life without full equipment replacement. This approach allows facilities to sustain production on legacy tools while capital planning for next-generation equipment proceeds on a controlled timeline.

Strategic Replacement Solutions

The BB81-000009-18 is a direct OEM replacement for the original TEL Transfer Distribution Board, eliminating the compatibility risk associated with third-party alternatives. For facilities managing aging BB81-series equipment, sourcing original TEL spare boards from a verified distributor like TOPNLMS provides a clear advantage: no firmware re-flashing, no mechanical modification, and no re-qualification of the control loop — the replacement board installs and operates identically to the factory-fitted unit.

For maintenance planners managing multiple TEL tools across a fab, consolidating spare board procurement through a single trusted source simplifies inventory tracking, reduces per-unit cost through volume purchasing, and ensures consistent quality documentation for audit and compliance purposes. TOPNLMS maintains stock of BB81-series components specifically to support rapid-response maintenance scenarios where TEL’s own service lead times are unacceptable.

When a BB81-000009-18 failure occurs, the typical replacement workflow — board removal, ESD-safe handling, installation, and functional verification — can be completed within two to four hours by a qualified field engineer. Having the spare on-site reduces this window to the actual labor time, versus waiting days or weeks for emergency procurement. For high-utilization tools running 24/7 production schedules, this difference directly translates to recovered wafer starts and protected revenue.
