Tokyo Electron TYB419-1/PC Replacement for UP-3020

Product Overview

Tokyo Electron TYB419-1/PC Replacement for UP-3020: Seamless Power Control Upgrade

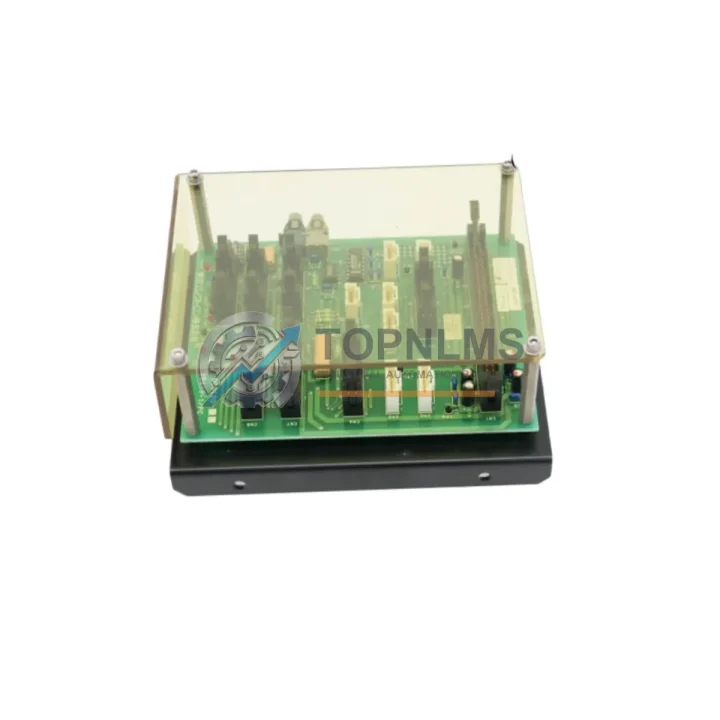

The Tokyo Electron TYB419-1/PC (also referenced as 1D81-000120 / 0040-75905) is a 30V/20A power control PCB assembly designed for the UP-3020 series semiconductor processing platform. As Tokyo Electron progressively phases out legacy board-level components for the UP-3020 system, procurement teams and field engineers face increasing pressure to source verified replacement assemblies that maintain full electrical and mechanical compatibility with the original installation.

TOPNLMS stocks this assembly as a direct replacement unit, fully tested prior to shipment. Whether your facility is managing an emergency breakdown, executing a planned preventive maintenance cycle, or building a strategic spare-parts inventory for your UP-3020 tool fleet, this board is available for immediate dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the TYB419-1/PC power control board is rarely an isolated task. In most UP-3020 tool environments, a board-level failure or planned upgrade triggers a broader review of adjacent assemblies and support components. Engineers performing this swap frequently inspect or simultaneously replace the UP-3020 main controller board and associated I/O interface PCBs that share the same card cage, since thermal stress and age-related degradation tend to affect neighboring assemblies on the same backplane.

Power distribution integrity is critical during the swap. The UP-3020 DC power supply module feeding the 30V rail should be load-tested before and after installation to confirm stable output under the new board’s draw profile. If the facility’s maintenance log shows recurring voltage fluctuations, replacing the power filter capacitor assembly or the bulk capacitor bank board in the same service window is strongly recommended to prevent repeat failures.

On the signal side, the UP-3020 analog signal conditioning board and any associated signal isolation modules connected downstream of this power control assembly should be verified for correct reference voltage levels after the swap. Mismatched reference voltages between the new power board and legacy signal boards are a common source of post-replacement calibration drift.

For facilities running multiple UP-3020 tools in a cluster, the UP-3020 communication interface card — which handles tool-to-host signaling over the fab’s equipment communication standard — should be confirmed as firmware-compatible with the replacement board revision. In some revision histories, Tokyo Electron issued minor firmware updates to the communication card to align with updated power board behavior.

If the maintenance scope extends to the process chamber side, the UP-3020 temperature control module and RF match network controller board are worth inspecting, as both draw regulated power from the same distribution rail that the TYB419-1/PC governs. Confirming their operating status before returning the tool to production prevents secondary unplanned downtime.

Finally, for facilities building a structured spare-parts program, pairing this power control PCB with a spare UP-3020 fuse and protection relay assembly and a set of OEM-compatible wiring harnesses for the card cage ensures that the next emergency replacement can be completed within a single shift without waiting on additional parts procurement.

Retrofit Guidance FAQ

Q: Is this a direct drop-in replacement for the original TYB419-1/PC without wiring modifications?
A: Yes. The replacement unit is pin-compatible with the original OEM edge connector and harness layout used in the UP-3020 card cage. No wiring modifications are required for a standard swap. Verify harness seating and torque connector retention screws to OEM specification after installation.

Q: Does the replacement board require any firmware or parameter re-initialization after installation?
A: In most UP-3020 configurations, the power control board does not store user-configurable parameters independently. However, it is best practice to perform a full system self-test sequence via the UP-3020 host controller after installation to confirm that all power rail status flags clear correctly and no fault codes are latched.

Q: What communication protocol does the TYB419-1/PC use within the UP-3020 system?
A: The board communicates over the UP-3020 internal backplane bus. It does not use an externally accessible fieldbus protocol (such as SECS/GEM, DeviceNet, or Profibus) directly. External tool-to-host communication is handled by the dedicated communication interface card in the same chassis.

Q: Will this board fit in the original physical slot without chassis modification?
A: Yes. The PCB form factor, card-edge dimensions, and mounting hole pattern match the original UP-3020 card cage slot specification. No mechanical modification to the chassis or card guides is required.

Q: What should be checked if the tool reports a power fault after installing the replacement board?
A: First, verify that the 30V DC input rail from the upstream power supply is within ±2% of nominal before the board powers up. Second, confirm that all harness connectors are fully seated. Third, check that no adjacent boards in the card cage are drawing excessive current that could cause the new board’s protection circuit to trip on startup. Clear any latched fault codes via the host controller before re-attempting tool initialization.

Q: Can this board be used as a cross-replacement for other Tokyo Electron UP-series platforms beyond the UP-3020?
A: The TYB419-1/PC is specifically qualified for the UP-3020 series. Compatibility with other UP-series platforms (such as UP-3000 or UP-3010) has not been confirmed and should not be assumed without consulting the platform-specific electrical schematics.

Warranty Assurance

Every TYB419-1/PC power control PCB assembly shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection including visual inspection for physical damage, connector integrity check, and electrical continuity verification on key power and signal nodes.

If a unit exhibits a defect or functional failure within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund based on the agreed resolution. Warranty claims are processed within 3 business days of receiving the returned unit and supporting fault documentation.

Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. For urgent breakdown situations, please indicate “URGENT” in your subject line or opening message to prioritize your case.

All units are packaged in anti-static ESD-safe packaging with foam cushioning to prevent transit damage. Shipment is from Xiamen, China, with DHL Express, FedEx International Priority, or equivalent express carrier as standard for international orders. Tracking information is provided within 24 hours of dispatch.

TOPNLMS maintains a no-counterfeit sourcing policy. All boards are sourced through verified supply channels and are subject to authenticity screening before being listed for sale. Certificates of conformance and shipping documentation are available upon request for regulated procurement environments.
