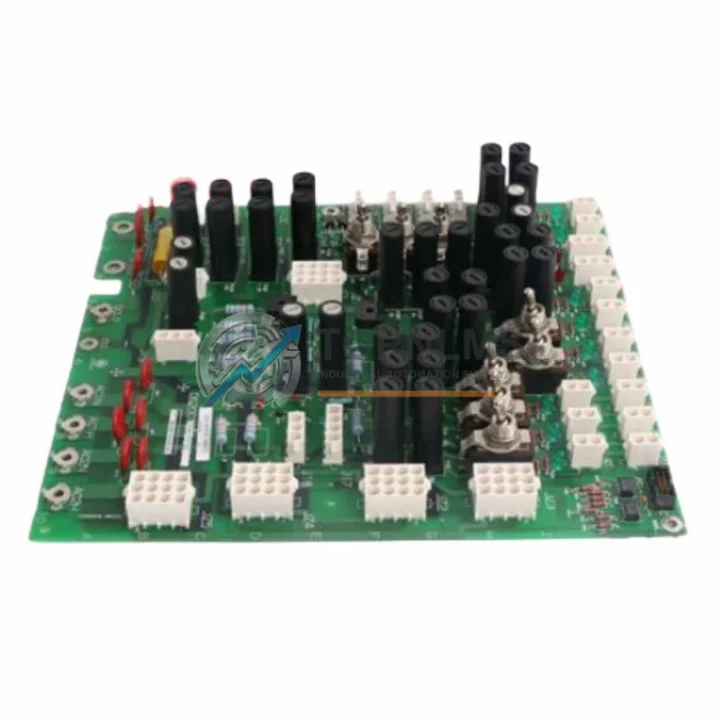

TEL SC2720P3200 Replacement Upgrade for SC2720 Series

Product Overview

TEL SC2720P3200 Replacement Upgrade for SC2720 Series: Seamless Transition from Legacy Sequence Control Systems

The TEL SC2720P3200 Sequence Controller Board is a critical control component used in Tokyo Electron Limited (TEL) semiconductor processing equipment, including diffusion furnaces, CVD systems, and thermal processing platforms built around the SC2720 Series architecture. As TEL progressively phases out legacy controller platforms, facilities running end-of-life SC2720-based systems face increasing pressure to source verified replacement boards or plan structured migration paths to maintain uptime and process integrity.

TOPNLMS supplies the SC2720P3200 as a direct replacement and upgrade solution for engineers and procurement teams managing TEL equipment fleets. Each unit is sourced, inspected, and dispatched from our Xiamen warehouse with full traceability documentation, supporting both emergency breakdown replacements and planned preventive maintenance schedules.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a failed or end-of-life SC2720 sequence controller board rarely involves a single component. In practice, a structured upgrade of a TEL diffusion or CVD system typically requires coordinated replacement of several interdependent modules. The SC2720P3200 integrates directly with the existing SC2720 controller backplane, which means the chassis, rack, and slot assignments remain unchanged — a significant advantage when minimizing downtime is the primary objective.

During commissioning and system validation, engineers frequently need to verify signal integrity across the SC2720 I/O interface boards that handle thermocouple inputs, digital outputs to process valves, and analog control signals for mass flow controllers. These I/O boards communicate with the SC2720P3200 via the internal backplane bus, and their firmware handshake sequences must be confirmed after any controller board swap.

The SC2720 power supply module — typically a dual-rail unit providing +5 VDC logic power and ±12 VDC for analog circuits — should be load-tested before and after the SC2720P3200 installation. A degraded PSU is a common root cause of sequence controller failures and can cause repeat board failures if not addressed during the same maintenance window.

For facilities upgrading communication infrastructure alongside the controller board, the SC2720 serial communication interface card may also require attention, particularly if the host SCADA or MES system has been updated and now uses a different baud rate or handshaking protocol. Confirming the communication parameters in the TEL equipment recipe files before powering up the replacement board prevents unnecessary fault alarms during initial startup.

In multi-zone furnace configurations, the SC2720 zone control daughter boards — responsible for individual temperature zone PID loops — remain fully compatible with the SC2720P3200 and do not require recalibration after a controller board replacement, provided the zone configuration EEPROM data is backed up and restored correctly. TOPNLMS recommends backing up all recipe and configuration data from the existing system before initiating any board-level replacement.

Where the SC2720 system interfaces with an HMI terminal (typically a TEL-branded operator panel or a third-party industrial touch panel running TEL’s proprietary display software), the HMI communication link should be verified post-replacement. The SC2720P3200 maintains the same host communication register map as earlier P3000/P3100 revisions, ensuring HMI screen data, alarm displays, and recipe parameter screens continue to function without software modification.

For facilities planning a broader control system modernization — transitioning from the SC2720 platform to a contemporary PLC-based architecture — the SC2720P3200 serves as an effective interim solution, extending equipment life while the migration to a modern Siemens S7-300/S7-1500, Allen-Bradley ControlLogix, or equivalent open-architecture controller is engineered and validated. This phased approach avoids unplanned production shutdowns and allows engineering teams to develop and test the new control logic in parallel with continued production on the existing TEL platform.

Retrofit Guidance FAQ

Q: Does replacing the SC2720P3200 require any wiring changes?
A: No. The SC2720P3200 uses the same backplane connector and field wiring harness as earlier SC2720 series controller boards. No rewiring is required for a direct replacement.

Q: Will the existing TEL recipe programs run without modification after the board swap?
A: Yes, provided the configuration EEPROM or non-volatile memory data is correctly transferred or restored. TOPNLMS recommends backing up all recipe data before removal of the original board.

Q: Is the SC2720P3200 compatible with both older and newer SC2720 chassis revisions?
A: The SC2720P3200 is designed for the SC2720 Series chassis. Compatibility with specific chassis sub-revisions should be confirmed against the TEL equipment serial number and build date. Contact TOPNLMS with your equipment details for pre-sale confirmation.

Q: What communication protocols does the SC2720P3200 support?
A: The board uses TEL’s proprietary serial bus protocol native to the SC2720 platform. It does not require protocol conversion or gateway devices when used as a direct replacement within the original SC2720 system architecture.

Q: How much physical space does the replacement board require?
A: The SC2720P3200 occupies the same single-slot position in the SC2720 controller chassis as the original board. No mechanical modification to the cabinet or chassis is required.

Q: What is the typical lead time and shipping arrangement?
A: Units are dispatched from our Xiamen warehouse. Standard international shipping typically delivers within 5–10 business days depending on destination. Express options are available for emergency breakdown situations. Contact [email protected] for urgent requirements.

Warranty Assurance

Every TEL SC2720P3200 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment functional inspection to verify power-on behavior, communication interface integrity, and absence of physical damage. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing production downtime. Our after-sales response target is within 24 hours of claim submission. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Procurement documentation including invoice, packing list, and inspection record is provided with every shipment to support your internal asset management and maintenance records. For customers requiring additional quality documentation, such as test reports or certificate of conformance, please specify at the time of order.

For purchasing inquiries, technical pre-sale questions, or emergency replacement requests, contact the TOPNLMS team directly:

📧 [email protected]
📞 +86 18359293191
