SIGMATEK SDD310-2 Ruggedized Servo Drive for Harsh Environments

Product Overview

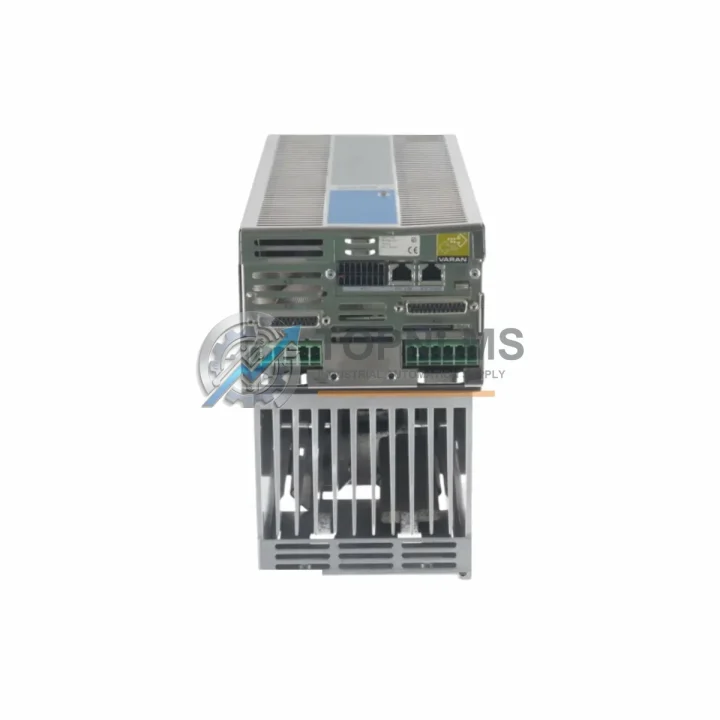

SIGMATEK SDD310-2 Ruggedized Servo Drive: Industrial Resilience for Harsh Environments

The SIGMATEK SDD310-2 is a high-performance, ruggedized 3-axis servo drive engineered for demanding industrial automation environments where reliability is non-negotiable. Designed as part of SIGMATEK’s DIAS (Digital Integrated Automation System) architecture and operating over the high-speed VARAN (Versatile Automation Random Access Network) real-time bus, the SDD310-2 delivers precise multi-axis motion control in applications where temperature extremes, vibration, electromagnetic interference, and continuous-duty cycles would compromise lesser components.

Whether deployed in a high-speed packaging line, a precision CNC machining center, a heavy-press stamping operation, or a continuous-process chemical plant, the SDD310-2 maintains deterministic servo loop performance with sub-millisecond cycle times. Its compact DIN-rail-compatible form factor integrates cleanly into standard industrial control cabinets alongside SIGMATEK’s broader DIAS I/O modules, safety controllers, and VARAN-enabled communication infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDD310-2 does not operate in isolation — it is the motion execution layer within a tightly integrated SIGMATEK DIAS control architecture. In a typical high-availability control cabinet, the SDD310-2 works in concert with a SIGMATEK DIAS CPU module (such as the C-IPC or LAB series controllers) that handles real-time program execution and coordinates axis commands over the VARAN bus at cycle times as low as 100 µs. Upstream, a SIGMATEK DIAS power supply module provides stable, filtered 24 VDC bus power, protecting the servo drive from mains-side transients and voltage sags common in heavy industrial facilities.

For multi-axis systems requiring coordinated motion — such as gantry robots, flying shears, or synchronized winding machines — the SDD310-2 pairs with additional SIGMATEK SDD-series single-axis or dual-axis servo drives on the same VARAN segment, enabling tight electronic gearing and cam profiling without additional fieldbus latency. Digital and analog I/O expansion is handled by SIGMATEK DIAS I/O modules, which connect limit switches, encoder feedback, safety interlocks, and process sensors directly into the motion controller’s deterministic scan cycle.

Safety-critical applications benefit from integration with SIGMATEK safety modules compliant with IEC 62061 and EN ISO 13849, enabling STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) functions without breaking the VARAN communication ring. For facilities operating in zones with elevated electromagnetic interference — such as near large variable-frequency drives (VFDs), arc welders, or high-current bus bars — the SDD310-2’s shielded VARAN cabling and differential signal architecture maintain data integrity where conventional fieldbus systems would suffer packet loss or axis faults.

Communication gateway modules within the DIAS ecosystem allow the SDD310-2-based motion system to report status and receive supervisory commands from plant-level SCADA or DCS platforms via PROFINET, EtherNet/IP, or Modbus TCP — making it straightforward to integrate into mixed-vendor control environments without sacrificing real-time servo performance. Terminal modules and marshalling blocks within the control cabinet complete the signal chain, providing organized, labeled connection points for motor power, resolver or encoder feedback, and safety relay outputs.

Application in Critical Infrastructure

In oil and gas processing facilities, the SDD310-2 controls precision valve actuators and compressor positioning systems where a servo fault can trigger costly process shutdowns or safety incidents. Its deterministic VARAN bus communication ensures that emergency stop commands propagate to all axes within a single scan cycle, meeting functional safety response-time requirements.

In mining and mineral processing operations, the drive manages conveyor positioning, crusher feed control, and flotation cell agitator drives in environments characterized by heavy vibration, airborne silica dust, and wide ambient temperature swings. The SDD310-2’s robust enclosure and conformal-coated PCB options resist corrosive particulates that would degrade unprotected electronics.

In power generation and electrical utilities, the module supports turbine blade pitch control, generator excitation positioning, and switchgear actuation — applications where servo accuracy directly affects grid stability and equipment longevity. The VARAN bus’s real-time determinism ensures that position feedback loops remain closed even under high electrical noise from generator switching transients.

In water and wastewater treatment plants, the SDD310-2 drives pump positioning, screen drive systems, and sludge dewatering press controls in high-humidity, chemically aggressive environments. Its sealed control cabinet installation and IP20 rating, combined with appropriate cabinet-level IP54 or IP65 enclosures, provide the layered protection required for continuous 24/7 operation.

In metallurgy and steel production, the drive controls rolling mill gap adjustment, coiler tension regulation, and ladle transfer car positioning — tasks demanding both high dynamic response and long-term thermal stability in ambient temperatures that can exceed 45 °C near furnace areas.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact [email protected] with your order number and a fault description. We will arrange return shipping, perform bench diagnostics, and provide a replacement or repaired unit within an agreed lead time. Warranty does not cover damage from incorrect installation, overvoltage events beyond rated specifications, or unauthorized modification.

Q2: How is each SDD310-2 unit tested before shipment?
Every unit undergoes a pre-shipment functional verification that includes power-on self-test, VARAN bus communication handshake confirmation, axis enable/disable cycling, and output stage integrity checks. Units sourced as surplus or refurbished additionally receive a full parametric bench test against SIGMATEK’s published specifications. A test report is available upon request for critical-infrastructure procurement.

Q3: Is the SDD310-2 compatible with my existing SIGMATEK DIAS system?
The SDD310-2 is designed for integration within SIGMATEK’s DIAS architecture and is compatible with DIAS CPU modules, VARAN-enabled I/O nodes, and LASAL development software. Firmware version compatibility should be confirmed against your existing CPU firmware revision — our technical team can assist with compatibility verification before purchase. Mixed SDD-series installations (e.g., SDD310-2 alongside SDD110 or SDD210 modules) are supported within the same VARAN segment.

Q4: Can you guarantee long-term supply and support for this model?
We maintain dedicated stock of SIGMATEK SDD-series modules, including the SDD310-2, to support both planned maintenance schedules and emergency breakdown replacements. For facilities running continuous production lines where unplanned downtime is unacceptable, we recommend discussing a consignment or reserved-stock arrangement. Our team can provide lead-time commitments and multi-unit pricing for MRO (Maintenance, Repair & Operations) procurement programs. Contact us at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
