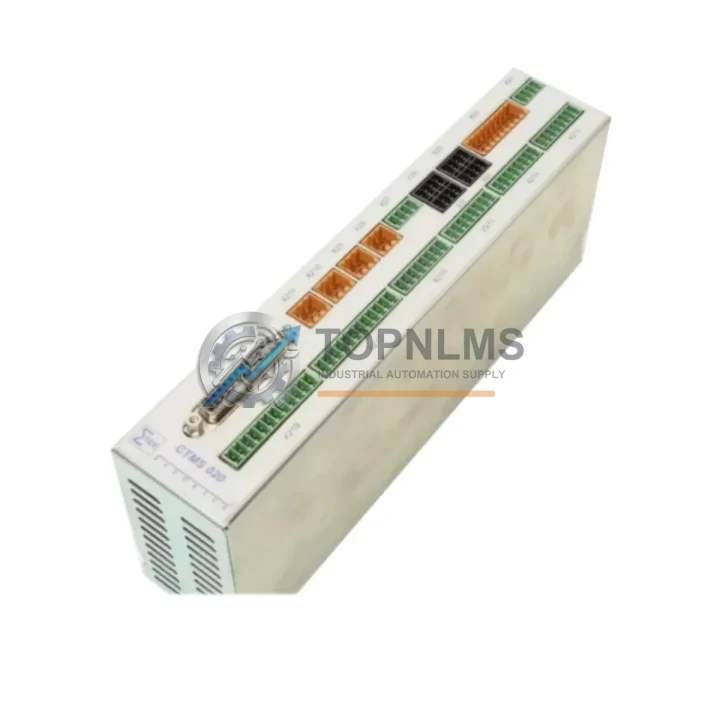

SIGMATEK CTMS020 Ruggedized Servo Axis Drive Module

Product Overview

SIGMATEK CTMS020 Ruggedized Servo Axis Drive Module: Industrial Resilience for Harsh Environments

The SIGMATEK CTMS020 is a compact, high-performance servo axis drive module engineered for the DIAS (Distributed Industrial Automation System) architecture. Designed to operate reliably in demanding industrial environments — including high-temperature production floors, high-humidity processing plants, dust-laden mining sites, and vibration-intensive heavy manufacturing lines — the CTMS020 delivers precise motion control without compromise. Whether deployed in a standalone servo axis application or integrated into a multi-axis DIAS backplane system, this module is built to sustain continuous operation where lesser components fail.

SIGMATEK’s DIAS platform is renowned for its modular, scalable design philosophy. The CTMS020 slots seamlessly into DIAS-compatible racks alongside companion modules such as the DIAS CPU modules (e.g., CP 062 or CP 074), DIAS I/O expansion modules, and DIAS power supply units, forming a tightly integrated control architecture. This modularity is critical in industrial environments where partial replacement — rather than full system overhaul — is the preferred maintenance strategy. The CTMS020 is a direct, plug-compatible replacement for aging servo axis modules within existing DIAS installations, minimizing downtime and re-engineering costs.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control cabinets, the CTMS020 does not operate in isolation. It functions as part of a coordinated ecosystem of protection, control, and communication components. Within a typical DIAS-based control cabinet, the CTMS020 works in concert with SIGMATEK DIAS safety modules to enforce STO (Safe Torque Off) and SS1 (Safe Stop 1) functions — critical requirements in machinery safety standards such as IEC 62061 and ISO 13849. Alongside DIAS digital and analog I/O modules, the CTMS020 receives real-time feedback from encoders, proximity sensors, and limit switches, enabling closed-loop servo control with millisecond response times.

Power integrity is maintained through dedicated SIGMATEK DIAS power supply modules and supplementary 24 VDC industrial DIN-rail power supplies, which buffer the servo drive against voltage transients common in heavy-load switching environments. For applications requiring coordinated multi-axis motion — such as gantry systems, rotary indexers, or synchronized conveyor lines — the CTMS020 integrates with additional DIAS servo axis modules on the same backplane, all orchestrated by the central DIAS CPU module running SIGMATEK’s LASAL motion control software.

Communication reliability is further ensured through DIAS fieldbus gateway modules supporting PROFIBUS, CANopen, or EtherCAT, enabling the CTMS020 to participate in plant-wide SCADA and DCS architectures. In environments with significant electromagnetic interference — such as near large variable frequency drives (VFDs), arc welding stations, or high-current bus bars — proper shielding of encoder cables and the use of industrial-grade ferrite chokes and EMC filters on the servo power lines are recommended to preserve signal integrity and protect the CTMS020’s internal electronics.

Application in Critical Infrastructure

The SIGMATEK CTMS020 has established a proven track record across some of the most demanding sectors of critical infrastructure. In oil and gas processing facilities, where continuous uptime is non-negotiable and environmental conditions include hydrocarbon vapors, high ambient temperatures, and persistent vibration from rotating machinery, the CTMS020’s robust DIAS backplane integration ensures that servo-driven valve actuators and pump control systems maintain precise positioning without drift or fault-induced shutdowns.

In mining and mineral processing operations, the module is deployed in conveyor drive control panels and ore-sorting machinery, where fine particulate dust and mechanical shock are constant challenges. Its panel-mount IP20 design, when housed in appropriately rated IP54 or IP65 control enclosures, provides a reliable barrier against ingress while maintaining the thermal management necessary for sustained high-cycle operation.

Within power generation and electrical utility substations, the CTMS020 supports servo-driven positioning systems for turbine governors, tap-changer mechanisms, and automated switchgear. The module’s compliance with industrial EMC standards makes it suitable for environments where high-voltage switching events generate significant electromagnetic transients. In water and wastewater treatment plants, it controls servo-actuated flow control valves and dosing pump drives, where corrosive chemical atmospheres and continuous 24/7 operation demand components with proven long-term reliability.

Metallurgical and steel production facilities represent perhaps the harshest deployment environment for any automation component. Here, the CTMS020 is used in rolling mill drive control systems and ladle transfer car positioning, where radiant heat, scale dust, and high-frequency vibration are unavoidable. Its integration into the DIAS architecture allows rapid module swap-out during scheduled maintenance windows, with the CPU retaining all axis parameters — eliminating the need for time-consuming recommissioning after a hardware replacement.

Security & Quality FAQ

Q1: What warranty coverage is provided with the SIGMATEK CTMS020?
Every CTMS020 unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch, and a test report is available upon request. In the event of a warranty claim, we provide rapid replacement support to minimize your production downtime.

Q2: How is the CTMS020 tested before shipment?
All units are subject to a pre-shipment inspection protocol that includes visual inspection for physical integrity, power-on functional verification, and communication interface testing where applicable. Units sourced from authorized channels are cross-referenced against SIGMATEK’s original part numbering to confirm authenticity. We do not ship untested or uninspected stock.

Q3: Is the CTMS020 compatible with my existing DIAS system?
The CTMS020 is designed for direct integration into SIGMATEK DIAS rack systems. It is compatible with DIAS backplane architectures used across SIGMATEK’s S-DIAS and DIAS product generations, subject to firmware version alignment. If you are unsure about compatibility with your specific CPU module or LASAL software version, please contact our technical team with your system configuration details — we will confirm compatibility before order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of the CTMS020?
Yes. TOPNLMS maintains dedicated stock of SIGMATEK DIAS series modules, including the CTMS020, to support both emergency replacement and planned maintenance programs. We work with industrial facilities that require consistent, reliable access to spare parts for installed automation systems — including those where the original product has reached end-of-sale status from the manufacturer. Contact us to discuss blanket order arrangements or consignment stock programs tailored to your maintenance schedule.
