SIGMATEK SDD120 09-501-201-2 Ruggedized Servo Drive for Harsh Environments

Product Overview

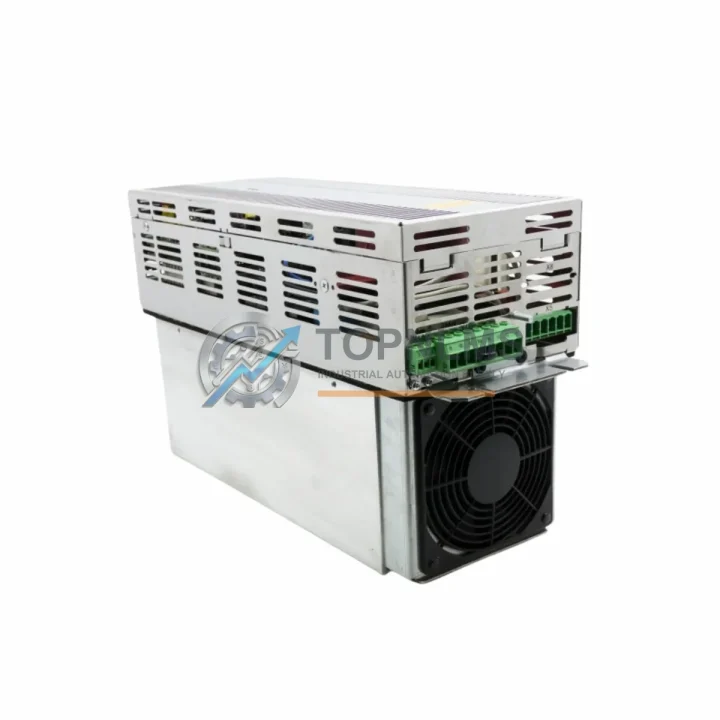

SIGMATEK SDD120 09-501-201-2 Ruggedized Servo Drive for Harsh Environments

The SIGMATEK SDD120 09-501-201-2 is a compact, high-performance servo drive engineered for demanding industrial environments where reliability is non-negotiable. Designed as part of SIGMATEK’s proven SDD Series, this unit delivers precise multi-axis motion control under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — the exact challenges found on continuous production lines, heavy manufacturing floors, and safety-critical process facilities.

Built to Austrian engineering standards, the SDD120 09-501-201-2 integrates seamlessly into SIGMATEK’s DIAS (Distributed Intelligence Automation System) architecture, enabling deterministic real-time communication between servo axes, PLC controllers, and I/O subsystems. Its compact form factor is optimized for installation inside sealed control cabinets where space is at a premium and thermal management is critical.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation, a servo drive does not operate in isolation — it is one node in a tightly integrated control architecture. The SIGMATEK SDD120 09-501-201-2 is designed to work in concert with the full SIGMATEK ecosystem to deliver system-wide resilience. Within a typical SIGMATEK control cabinet, this servo drive communicates over the DIAS bus with the SIGMATEK S-DIAS CPU module, which acts as the central PLC controller coordinating all motion sequences and safety interlocks. Alongside it, SIGMATEK S-DIAS digital I/O modules handle discrete sensor and actuator signals — limit switches, proximity sensors, and emergency stop inputs — feeding real-time status data back to the motion controller.

For multi-axis applications, the SDD120 09-501-201-2 operates in parallel with additional SIGMATEK SDD Series servo drives on the same DIAS network, enabling synchronized gantry, cross-cutting, or cam-profile motion without the latency penalties of traditional fieldbus architectures. Power distribution to the drive is typically managed through a SIGMATEK power supply module or a compatible 24 VDC industrial power supply with sufficient hold-up time to ride through brief mains interruptions — a critical feature in continuous production environments.

On the safety side, the drive interfaces with SIGMATEK S-DIAS safety modules or third-party SIL-rated safety relays to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions in accordance with IEC 62061 and ISO 13849. Communication with higher-level SCADA or DCS systems is facilitated through SIGMATEK gateway or communication modules supporting protocols such as PROFIBUS, EtherNet/IP, or Modbus TCP, depending on the plant’s existing infrastructure. Terminal modules and marshalling blocks within the cabinet ensure clean, vibration-resistant wiring terminations — a detail that proves its value in high-vibration environments such as press lines or mining conveyors.

Application in Critical Infrastructure

The SIGMATEK SDD120 09-501-201-2 has a strong application profile across industries where unplanned downtime carries severe operational and safety consequences. In oil and gas processing facilities, servo-driven valve actuators and metering pumps demand drives that maintain positional accuracy despite wide ambient temperature swings and the presence of corrosive atmospheres — conditions the SDD120 handles through its robust thermal design and EMC-hardened electronics. In mining and mineral processing, conveyor positioning systems and crusher feed controls rely on servo drives that can withstand continuous vibration and dust ingress; the SDD120’s panel-mount IP20 rating, combined with a properly sealed control cabinet, delivers the required protection level.

In power generation and electrical utilities, turbine governor systems and excitation control loops require sub-millisecond servo response times with zero tolerance for communication dropouts — precisely the deterministic performance that the DIAS architecture provides. Water and wastewater treatment plants deploy servo-driven dosing pumps and sluice gate actuators in high-humidity, chemically aggressive environments; the SDD120’s humidity tolerance and corrosion-resistant construction make it a dependable choice. In metallurgy and steel production, rolling mill drives and coiler tension controls operate under extreme thermal loads and electromagnetic noise generated by large induction furnaces and DC bus systems — environments where the SDD120’s EMC compliance and thermal headroom provide a meaningful reliability advantage.

Across all these sectors, the ability to source a genuine, tested replacement unit with a clear 12-month warranty and fast dispatch is as important as the drive’s technical specification. Unplanned downtime in critical infrastructure is measured in thousands of dollars per hour; having a verified spare on the shelf — or a supplier who can ship within 24–48 hours — is a core element of any serious maintenance strategy.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every SIGMATEK SDD120 09-501-201-2 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or repair at no additional cost. Warranty claims are processed with documented test reports and traceable serial numbers.

Q2: How is each unit tested before shipment?
All units undergo functional verification prior to dispatch. This includes power-on testing, communication interface checks, and visual inspection for physical damage. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the SDD120 09-501-201-2 compatible with my existing SIGMATEK DIAS system?
Yes. The SDD120 09-501-201-2 is a native DIAS-bus device and is compatible with all SIGMATEK S-DIAS CPU modules and LASAL motion software environments. It is a direct form-fit-function replacement for any existing SDD120 installation. If you are integrating into a mixed-generation system, our technical team can advise on firmware compatibility and parameter migration.

Q4: Can you guarantee long-term supply and support for this model?
TOPNLMS maintains stock of legacy and current-generation SIGMATEK components specifically to support customers with long production lifecycles. We actively source genuine units through verified supply channels and can provide advance procurement planning for customers who require guaranteed availability over a 12–36 month horizon. Contact us to discuss a supply agreement tailored to your maintenance schedule.
