Siemens 6SL3330-1TE35-3AA3 Original Industrial Spare S120 Compatible: Ensuring System Stability in High-Power Drive Applications

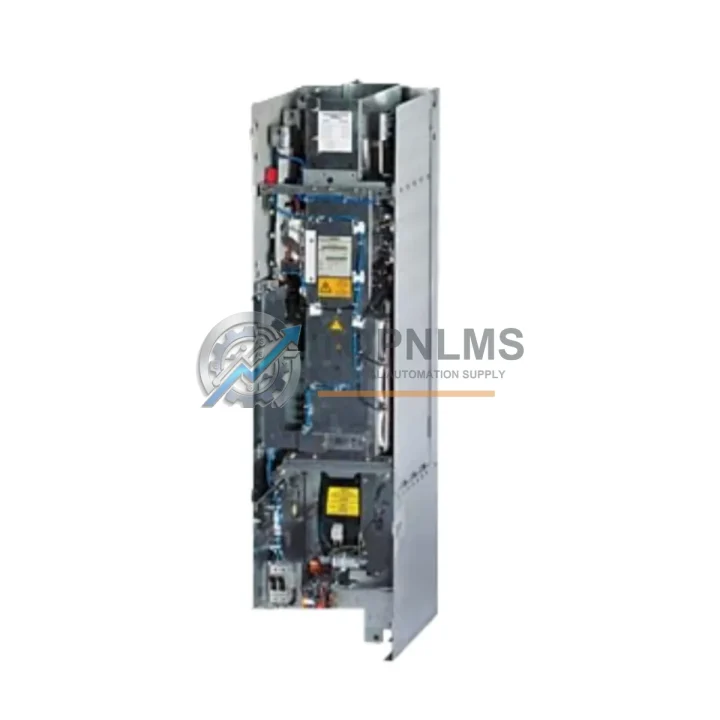

The Siemens 6SL3330-1TE35-3AA3 is an original SINAMICS S120 Chassis Basic Line Module rated at 315 kW, designed for demanding industrial environments where uninterrupted power conversion and drive system stability are non-negotiable. As a core component of the SINAMICS S120 modular drive architecture, this Basic Line Module provides regulated DC bus power to connected Motor Modules, enabling precise multi-axis motion control across heavy manufacturing, steel processing, paper mills, mining conveyors, and large-scale HVAC systems.

Sourced directly from verified supply channels and tested prior to dispatch, this unit is a genuine Siemens spare part — not a clone, not a refurbished substitute. For maintenance engineers managing aging S120 chassis installations, securing an original 6SL3330-1TE35-3AA3 is the most reliable path to restoring full system capacity without re-engineering the control cabinet or reconfiguring the STARTER/TIA Portal drive project.

Critical Technical Specs

Preventive Maintenance Strategy

When a 6SL3330-1TE35-3AA3 Basic Line Module is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams know that the DC bus failure rarely occurs in isolation. The SINAMICS S120 chassis architecture is a tightly integrated system — a fault in the line module often places stress on adjacent components that may already be operating near their service limits.

During the same maintenance window, it is strongly advisable to inspect and, where necessary, replace the SINAMICS S120 Motor Modules (such as the 6SL3120 series single-axis or double-axis units) that share the same DC bus. These modules are subject to the same thermal and electrical cycling as the line module and may exhibit early signs of capacitor aging or IGBT degradation. Similarly, the CU320-2 DP or CU320-2 PN Control Unit — which manages the DRIVE-CLiQ topology and communicates with the PLC — should be verified for firmware currency and connector integrity.

The DRIVE-CLiQ cables connecting the line module to the control unit and motor modules are a frequently overlooked failure point. Vibration, heat cycling, and connector oxidation can cause intermittent communication faults that are difficult to diagnose without cable substitution. Stocking a set of DRIVE-CLiQ cables (6SL3060 series) alongside the line module spare is a low-cost insurance policy against extended troubleshooting time.

Power supply integrity is equally critical. The SITOP PSU100S or PSU200M 24V DC power supply modules that feed the control electronics of the S120 system should be tested under load during any chassis inspection. A marginal 24V supply can cause erratic fault codes that mimic drive hardware failures, leading to unnecessary module replacements. Inspecting the terminal blocks and busbar connections within the cabinet — particularly the DC bus copper bars and PE bonding conductors — is also recommended, as loose connections at 315 kW load levels generate significant heat and accelerate insulation degradation.

For facilities running multiple S120 chassis lines, the Braking Module and Braking Resistor assembly (6SL3100 series) deserves attention during the same inspection cycle. Regenerative braking loads place repetitive stress on these components, and a failed braking resistor can cause DC bus overvoltage trips that are incorrectly attributed to the line module. Additionally, the Cabinet Operator Panel (COP) or Basic Operator Panel (BOP-2) used for local parameter access and fault acknowledgment should be checked for display integrity and button response — a failed operator panel can complicate on-site diagnostics during emergency repairs.

Finally, for plants with older S120 installations approaching 10+ years of service, a proactive audit of the Sensor Modules (SMC20 or SME20) used for encoder feedback, as well as the VSM10 Voltage Sensing Module if line voltage monitoring is configured, will help identify components that are statistically approaching end-of-life before they cause unplanned downtime.

Strategic Replacement Solutions

The 6SL3330-1TE35-3AA3 is a direct form-fit-function replacement for the same part number in any SINAMICS S120 chassis installation. Because it is an original Siemens unit, no parameter re-mapping, firmware patching, or hardware adaptation is required — the replacement module is recognized immediately by the CU320-2 Control Unit via DRIVE-CLiQ auto-topology detection. This eliminates the commissioning risk associated with third-party or remanufactured alternatives and allows maintenance teams to restore production within the same shift.

For facilities that previously operated older SINAMICS S120 variants or are migrating from legacy SIMOVERT MASTERDRIVES installations, the 315 kW chassis format of this module provides a compatible upgrade path that preserves existing cabinet wiring, motor cabling, and PLC interface configurations. The standardized DRIVE-CLiQ communication protocol ensures seamless integration with TIA Portal V15 and above, as well as STARTER commissioning software, without requiring additional hardware adapters.

Maintaining one unit of the 6SL3330-1TE35-3AA3 in on-site inventory is a proven strategy for reducing mean time to repair (MTTR) in high-availability production environments. At 315 kW, this module typically drives critical process equipment — compressors, extruders, rolling mills, or large pump stations — where every hour of downtime carries significant financial impact. The cost of holding a spare is consistently outweighed by a single avoided production stoppage.

Support FAQ

Q1: Is this unit tested before shipment?
Yes. Every 6SL3330-1TE35-3AA3 unit is functionally tested and inspected prior to dispatch. Units are shipped with protective packaging appropriate for sensitive power electronics, including anti-static wrapping and foam cushioning.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond specification, or physical mishandling. Warranty claims are processed directly through TOPNLMS with a target response time of 2 business days.

Q3: Can this module replace an older 6SL3330-1TE35-3AA0 or AA1 revision?
In most cases, yes. Siemens SINAMICS S120 Basic Line Modules maintain backward compatibility across hardware revisions within the same power class. However, it is recommended to verify the firmware version of the CU320-2 Control Unit and consult the SINAMICS S120 Hardware Installation Manual to confirm revision compatibility for your specific installation before proceeding.

Q4: How quickly can this part be shipped, and do you support international orders?
In-stock units are typically dispatched within 1–3 business days. International shipping is supported with full export documentation. Lead times for out-of-stock units vary; contact us directly for availability confirmation and expedited sourcing options.
