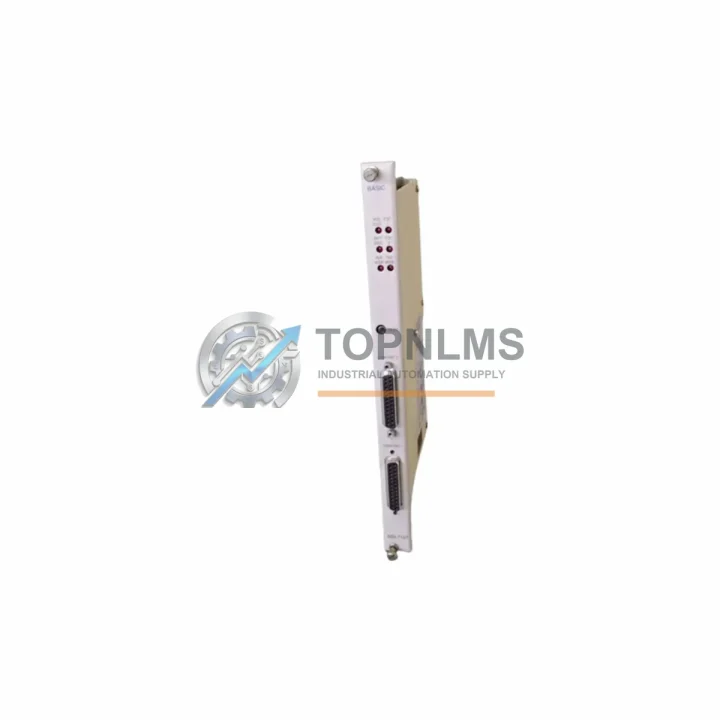

Siemens 505-7101 Ruggedized PLC Rack Controller Module

Product Overview

Siemens 505-7101 Ruggedized PLC Rack Controller Module: Industrial Resilience for Harsh Environments

The Siemens 505-7101 is a core rack controller module within the SIMATIC 505 programmable logic controller platform — one of Siemens’ most proven and widely deployed industrial automation architectures. Engineered for continuous operation in demanding industrial environments, the 505-7101 delivers the processing backbone that keeps critical control systems running reliably across high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy plant floors. Whether deployed in a petrochemical refinery, a coal-fired power station, a water treatment facility, or a heavy-metal smelting operation, this module is built to sustain uninterrupted machine cycles where downtime is not an option.

As the central processing and rack management unit of the SIMATIC 505 system, the 505-7101 coordinates communication between all installed I/O modules, specialty function modules, and communication processors mounted within the same rack. Its deterministic scan-cycle architecture ensures that time-critical control logic executes with consistent, predictable timing — a non-negotiable requirement in safety-sensitive and process-critical applications. The module’s robust backplane interface maintains signal integrity even in environments subject to ground loops, high-frequency switching noise from variable frequency drives (VFDs), and transient voltage spikes common in heavy industrial switchgear panels.

Rugged Specifications Table

Comprehensive Protection Solutions

The 505-7101 does not operate in isolation — it is the command center of a tightly integrated control architecture. In a typical SIMATIC 505 control cabinet, the rack controller works in concert with a full suite of complementary modules to deliver system-wide protection and operational continuity.

Digital I/O modules such as the Siemens 505-4332A (32-channel digital input) and 505-4564 (64-channel digital output) feed real-time field signals directly into the 505-7101’s scan cycle, enabling rapid response to process deviations. For analog process variables — temperature, pressure, flow, and level — analog input modules like the 505-6103 provide high-resolution signal conditioning that the rack controller processes with deterministic accuracy.

Power integrity is maintained through dedicated SIMATIC 505 power supply modules (such as the 505-6860), which deliver clean, regulated DC power to the backplane, protecting the 505-7101 and all co-installed modules from voltage sags and transient surges common in heavy industrial environments. In facilities where uninterruptible operation is mandatory, these power modules are often paired with external industrial UPS systems and 24VDC buffer modules to bridge momentary supply interruptions without triggering a controller restart.

For plant-wide communication, the 505-7101 integrates with TIWAY I network communication modules and SIMATIC 505 serial communication processors, enabling peer-to-peer PLC networking and SCADA connectivity across large distributed control architectures. In hybrid environments where SIMATIC 505 systems coexist with newer Siemens S7-300 or S7-400 platforms, protocol gateway modules bridge the communication gap, preserving the investment in legacy 505 infrastructure while enabling modern supervisory integration.

Safety-critical applications benefit from the addition of dedicated safety relay modules and emergency stop relay assemblies wired in parallel with the 505-7101’s output logic, ensuring that hardwired safety circuits remain independent of the PLC scan cycle. Terminal block assemblies — including Weidmüller or Phoenix Contact DIN-rail terminal modules — provide organized, vibration-resistant field wiring termination within the same control cabinet, reducing the risk of loose connections that could cause spurious faults in high-vibration installations.

Application in Critical Infrastructure

The Siemens 505-7101 has accumulated decades of proven service across the world’s most demanding industrial sectors. In oil and gas upstream operations, it manages wellhead control panels and pipeline compressor stations where ambient temperatures fluctuate widely and explosive-atmosphere compliance demands absolute electrical reliability. The module’s stable scan-cycle performance ensures that emergency shutdown (ESD) logic executes within defined response windows, even under heavy I/O loading.

In coal and gas-fired power generation facilities, the 505-7101 controls boiler management sequences, turbine auxiliary systems, and balance-of-plant automation. These environments subject control hardware to sustained elevated temperatures, coal dust ingress, and high-frequency electrical noise from large motor drives — conditions the SIMATIC 505 platform was specifically engineered to withstand.

Municipal and industrial water treatment plants rely on the 505-7101 for pump station sequencing, chemical dosing control, and filtration process management. The module’s resistance to humidity and condensation — common in wet process environments — makes it a dependable choice for installations where climate control within control rooms is limited or inconsistent.

In mining and mineral processing operations, the 505-7101 supervises conveyor drive sequencing, crusher control, and ore processing automation. Vibration levels in these environments — generated by crushers, ball mills, and heavy haul conveyors — can exceed the tolerance of less ruggedized control hardware. The SIMATIC 505 rack architecture’s mechanical robustness and secure module retention design ensure that backplane connections remain stable under continuous mechanical stress.

Metallurgical and steel mill applications present perhaps the harshest combination of thermal load, electromagnetic interference from arc furnaces, and airborne particulate contamination. The 505-7101’s proven track record in these environments, combined with its straightforward replacement and recommissioning procedure, makes it a preferred spare-parts investment for plant maintenance teams managing aging but still-productive production lines.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Siemens 505-7101?
Every 505-7101 unit supplied by TOPNLMS carries a full 12-month functional warranty covering all hardware defects and operational failures under normal industrial use conditions. If a unit fails within the warranty period, we provide a direct replacement or full refund — no lengthy RMA bureaucracy. Our warranty reflects our confidence in the pre-shipment testing process applied to every module before dispatch.

Q2: How is each unit tested before shipment?
All 505-7101 modules undergo pre-shipment functional verification, including power-on self-test validation, backplane communication integrity checks, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass our inspection protocol are quarantined and never shipped. Customers receive only modules that have been confirmed operationally sound.

Q3: Is the 505-7101 compatible with my existing SIMATIC 505 rack and I/O modules?
Yes. The 505-7101 is a standard SIMATIC 505 basic rack controller module and is fully compatible with all standard SIMATIC 505 rack configurations (5-slot, 10-slot, and 16-slot) and the complete range of SIMATIC 505 digital, analog, and specialty I/O modules. If you are replacing a failed unit in an existing installation, the 505-7101 is a direct drop-in replacement requiring no rack or wiring modifications.

Q4: Can TOPNLMS support long-term and repeat procurement of the 505-7101?
Absolutely. TOPNLMS maintains dedicated inventory of SIMATIC 505 series modules to support ongoing maintenance, planned replacement programs, and emergency spare-parts procurement. We understand that industrial facilities operating legacy SIMATIC 505 systems require a reliable, long-term supply partner — not a one-time transaction. Our team provides consistent availability, competitive lead times, and technical support to help you maintain production continuity for the life of your installed SIMATIC 505 infrastructure.
