Siemens 16114-171 A5E00281117/09 Replacement for SIMATIC S5: Seamless Transition & Legacy System Upgrade

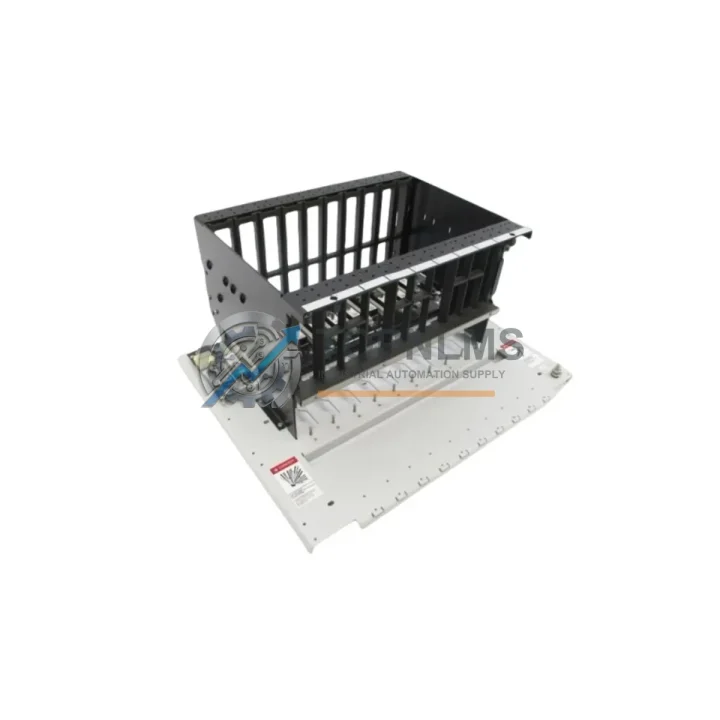

The Siemens 16114-171 A5E00281117/09 MODULERAC card rack is a critical structural and electrical backbone component within the SIEMENS SIMATIC S5 programmable logic controller platform. As S5-series systems approach end-of-life and spare parts become increasingly scarce, plant engineers and maintenance teams face mounting pressure to source verified replacement units that preserve existing wiring, I/O addressing, and program logic without triggering a full system redesign.

TOPNLMS maintains ready stock of the 16114-171 A5E00281117/09 MODULERAC card rack, sourced from verified industrial channels and subjected to pre-shipment functional inspection. Each unit ships with a 12-month warranty, full traceability documentation, and export packaging rated for international freight — enabling your team to execute a controlled swap with minimal production downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SIMATIC S5 card rack replacement rarely involves the rack in isolation. In practice, the 16114-171 A5E00281117/09 MODULERAC is the structural host for an entire ecosystem of S5 modules that must be carefully managed during the swap procedure.

The power supply module — typically a unit from the 6ES5 951 series — must be verified for output voltage stability before re-seating into the replacement rack. A degraded PS can cause intermittent CPU faults even after a clean rack swap. Similarly, the CPU module (such as the 6ES5 095 or 6ES5 100 series CPU) retains all program memory in its internal EPROM or RAM cartridge; the rack replacement itself does not affect program integrity, but the CPU should be inspected for battery-backed RAM condition before recommissioning.

Digital and analog I/O modules from the 6ES5 400 and 6ES5 460 series slot directly into the replacement rack without any address reconfiguration, provided the physical slot positions are preserved. Field wiring connects to the I/O modules via front connector assemblies (6ES5 490 series), which remain attached to the wiring harness and transfer to the new rack without re-termination — a significant time saving during a live plant changeover.

If the existing system uses SINEC L1 or SINEC H1 communication, the corresponding CP communication processor modules (such as the CP 521 SI or CP 523) occupy dedicated rack slots and connect to the fieldbus network via their own cable assemblies. These modules transfer to the replacement rack without protocol reconfiguration, preserving existing network node addresses and baud rate settings.

For installations where the S5 rack interfaces with a SIMATIC OP or TP operator panel via the MPI or PPI interface, the HMI connection is managed at the CPU level and is unaffected by the rack replacement. However, if the site is also planning an HMI upgrade — for example, migrating from a legacy OP7 or OP17 to a modern KTP700 Basic — the rack swap is an ideal opportunity to consolidate the upgrade scope and minimize total downtime events.

In control cabinets where space is constrained, the 16114-171 A5E00281117/09 MODULERAC’s identical physical footprint ensures that adjacent components — including 24 VDC power distribution terminals, signal isolators, and surge protection modules — require no repositioning. This is particularly relevant in compact cabinets where clearance around the rack is minimal and any dimensional change would require panel re-layout.

Sites planning a phased migration from S5 to SIMATIC S7-300 or S7-1500 can use this replacement rack to stabilize the existing S5 system during the transition period, allowing the S7 migration to proceed on a controlled schedule rather than under emergency conditions. During this window, STEP 5 programming software continues to serve as the primary tool for S5 program maintenance and diagnostic monitoring.

Retrofit Guidance FAQ

Q: Do I need to re-wire field connections when replacing the rack?
No. S5 front connector assemblies (6ES5 490 series) remain attached to the field wiring and plug directly into the I/O modules. The modules, with connectors attached, transfer to the replacement rack. No terminal re-termination is required.

Q: Will my STEP 5 program need to be modified?
No. The MODULERAC card rack is a passive structural and bus component. It does not store program data. Your CPU module retains all program blocks, data blocks, and organization blocks in its own memory. Slot positions must be preserved to maintain I/O addressing.

Q: Is the 16114-171 A5E00281117/09 compatible with earlier MODULERAC revisions (/07, /08)?
Yes. The /09 revision maintains full backward compatibility with the S5 backplane bus specification. Modules qualified for earlier MODULERAC revisions operate correctly in the /09 unit.

Q: What communication protocols are supported?
The rack itself is protocol-agnostic. Communication is handled by CP modules installed in the rack slots. SINEC L1, SINEC H1, and point-to-point serial protocols (via CP 521 SI) are all supported through their respective CP modules, which transfer to the replacement rack without reconfiguration.

Q: How much physical space does the replacement rack require?
The 16114-171 A5E00281117/09 has an identical footprint to all standard S5 MODULERAC units. No cabinet modification, DIN rail repositioning, or cable duct relocation is required.

Q: Can I hot-swap the rack during production?
No. The MODULERAC card rack is a backplane component and requires a controlled shutdown of the S5 system before replacement. Plan for a maintenance window. TOPNLMS recommends pre-staging the replacement unit with all modules transferred and verified before the shutdown window begins to minimize total outage duration.

Q: What is the typical lead time?
Units are dispatched from Xiamen within 1–3 business days of order confirmation. International express freight (DHL / FedEx) typically delivers within 3–7 business days depending on destination country and customs clearance.

Warranty Assurance

Every 16114-171 A5E00281117/09 MODULERAC card rack supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the SIMATIC S5 platform specification.

Prior to dispatch, each unit undergoes a pre-shipment inspection protocol that includes visual examination for physical damage, connector integrity verification, and backplane bus continuity check. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will assess the returned unit and, at its discretion, provide a replacement unit or issue a credit note. Warranty claims are processed within 5 business days of receipt of the returned item. Return shipping instructions and an RMA reference are provided upon claim initiation via email.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformity, and — where available — original manufacturer traceability documentation. All export shipments comply with applicable trade regulations.

To initiate a purchase, request a quotation, or discuss technical compatibility for your specific installation, contact the TOPNLMS technical sales team directly.
