Siemens 3VL9300-3HG05 Original Industrial Spare Sentron VL Compatible

Product Overview

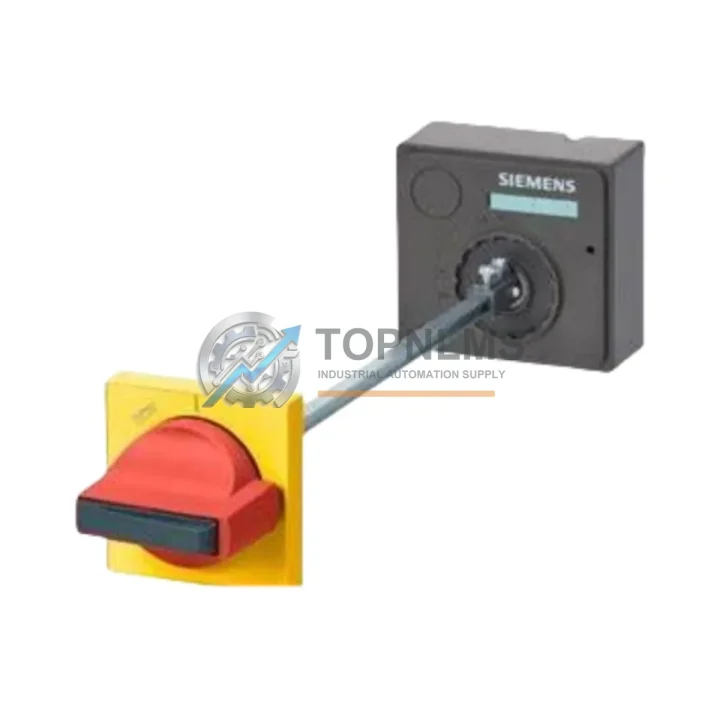

Siemens 3VL9300-3HG05 Original Industrial Spare — Sentron VL MCCB Accessory for System Stability

The Siemens 3VL9300-3HG05 is a genuine OEM accessory designed for the Sentron VL series molded case circuit breakers (MCCB), specifically compatible with the VL160X, VL160, and VL250 frames. In industrial environments where power distribution reliability is non-negotiable, having a verified original spare on hand is the single most effective measure against unplanned downtime. Whether you are managing a manufacturing line, a process plant, or a building automation system, this accessory ensures your Siemens MCCB installation remains fully compliant, mechanically sound, and operationally safe.

Sourced directly from authorized supply channels, every unit shipped by TOPNLMS undergoes pre-shipment functional inspection and is backed by a 12-month warranty. We stock this part to support maintenance engineers, procurement teams, and MRO buyers who cannot afford delays when a circuit breaker accessory fails during a scheduled or emergency shutdown.

Critical Technical Specs

Preventive Maintenance Strategy

When a Sentron VL circuit breaker accessory such as the 3VL9300-3HG05 is flagged for replacement during a scheduled maintenance cycle, experienced maintenance engineers treat it as a trigger for a broader panel inspection. A single worn or failed MCCB accessory rarely exists in isolation — it is typically a symptom of accumulated mechanical stress, thermal cycling, or aging across the entire power distribution assembly.

During the same maintenance window, it is strongly recommended to inspect and, where appropriate, proactively replace the Siemens 3VL9300-8TC10 terminal cover and 3VL9400-8A auxiliary contact block, both of which share the same service interval in VL160/VL250 installations. The 3VL9300-4TG10 door-coupling rotary handle should also be checked for mechanical play, as it operates in tandem with the 3VL9300-3HG05 in many panel configurations.

For the upstream power supply section, verify the condition of the Siemens 3NP1 series fuse switch disconnectors and associated 3NW fuse elements, which protect the MCCB input circuit. Downstream, inspect the 5SY series miniature circuit breakers (MCBs) on branch circuits fed through the VL250 frame — these are frequently overlooked during MCCB-focused maintenance but are critical to overall system coordination.

In control cabinet environments, the maintenance visit should also cover the 3RT2 series contactors and 3RU2 overload relays in motor starter combinations adjacent to the VL-protected feeder. Terminal blocks — particularly Siemens 8WH series or equivalent — should be torque-checked and inspected for discoloration indicating thermal stress. If the panel includes a SIMATIC S7-300 or S7-1200 PLC for motor control or process interlocking, verify that the 24 VDC power supply module (such as the 6EP1 series SITOP PSU) is within its rated load range and shows no fault indicators.

For facilities running older Siemens installations, this maintenance window is also the right time to assess whether 3VL1 or 3VL3 series MCCBs in the same switchgear lineup are approaching end-of-life. Stocking a matched set of accessories — including the 3VL9300-3HG05 and its companion parts — as a maintenance kit reduces mean time to repair (MTTR) and eliminates the risk of a single-part shortage extending a planned outage into an unplanned one.

Strategic Replacement Solutions

The 3VL9300-3HG05 is the correct OEM replacement for aging or damaged accessories on Sentron VL160X, VL160, and VL250 circuit breakers. Unlike aftermarket alternatives, this genuine Siemens part maintains full mechanical and electrical compatibility with the existing breaker frame, preserving the original type-test certification of the MCCB assembly. This is particularly important in installations subject to IEC 60947-2 compliance audits or insurance inspections, where the use of non-OEM accessories can invalidate the breaker’s rated performance.

For facilities managing legacy Siemens switchgear, the availability of original spare accessories like the 3VL9300-3HG05 extends the operational life of existing VL-series installations by years, deferring costly panel replacement projects. Maintenance teams can execute a like-for-like swap in the field without re-engineering the panel layout, re-labeling breakers, or updating single-line diagrams — a significant advantage in time-critical shutdown windows.

TOPNLMS maintains ready stock of this part to support same-week dispatch for urgent MRO requirements. All units are shipped with original packaging where available, and each order includes a test report confirming pre-shipment inspection. For procurement teams building a strategic spare parts inventory, we recommend holding a minimum of two units per active VL160/VL250 installation to cover both scheduled replacement and emergency failure scenarios.

Support FAQ

Q1: Is the 3VL9300-3HG05 compatible with both VL160 and VL160X frames?
Yes. The 3VL9300-3HG05 is designed for use with the Siemens Sentron VL160X, VL160, and VL250 MCCB frames. Always verify the breaker frame designation on the nameplate before ordering. If you are unsure, contact us with the full breaker part number and we will confirm compatibility.

Q2: What does the 12-month warranty cover?
The TOPNLMS 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is inspected prior to shipment. In the event of a warranty claim, we arrange replacement or refund — contact [email protected] with your order number and a description of the issue.

Q3: How quickly can this part be shipped, and what testing is performed before dispatch?
In-stock units are dispatched within 1–3 business days. Every unit undergoes a visual inspection and functional check before packaging. Express shipping options are available for urgent maintenance requirements — please contact us to arrange priority dispatch.

Q4: Can I use this part to replace an accessory on a breaker that is still in service?
Replacement of MCCB accessories must be performed by a qualified electrician with the circuit de-energized and locked out per local safety regulations. The 3VL9300-3HG05 is a direct drop-in replacement and does not require any modification to the breaker or panel. We recommend following Siemens installation instructions (available in the product documentation) and verifying correct operation after installation before re-energizing the circuit.
